Baldor M1729T

Two Speed Motor - 25 hp / 11 hp, 1200 rpm / 1800 rpm, 3 ph, 460 V, 324T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1160 rpm / 1760 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # M1729TSKU # YLSGRVBZ9GAJ3NZ

EnclosureTEFC

Frame324T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency11.000 HP @ 60 HZ · 25.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Two Speed Motor - 25 hp / 11 hp, 1200 rpm / 1800 rpm, 3 ph, 460 V, 324T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1160 rpm / 1760 rpm Base, Foot Mount, Continuous Duty

Baldor M1729T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame324T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency11.000 HP @ 60 HZ · 25.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage30.000 A @ 460.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Electrically isolated bearingNot Electrically Isolated

Enclosure modificationSevere Duty Features

Feedback deviceNO FEEDBACK

High voltage full load current (A)18.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 10 AWG

Motor type1240M

Mounting arrangementF1

Number of poles4 · 6

Overall length30.28 IN

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter2.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1160 rpm · 1760 rpm

Speed code2S-2W-VT

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568116180

Motor CategoryTwo Speed Motor

Motor Supply Voltage460 V

Base RPM1160 rpm / 1760 rpm

Harmonization Code8501.52.8040

Weight510 lbs

ApplicationsFans, blowers, machine tools, hoists, conveyors, pumps.

Additional DetailsDesigned for use in applications in which multiple speeds are required. Heavy duty steel or cast-iron frames, ball bearing, dynamically balanced rotors.

Mounting TypeFoot

Product TypeDefinite Purpose Motors

Nameplate

Catalog numberM1729T

Specification number12C051X260G1

Horsepower (HP)25/11

Voltage (V)460

Current (A)30/18

Speed (rpm)1760/1160

Frame size324T

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)H

NEMA design letterA

Insulation classF

Rating40C AMB-CONT

Drive end bearing6312

Opposite drive end bearing6311

EnclosureTEFC

Nameplate numberNP1256L

Performance

General characteristics· 460 V, 60 Hz, 25 hp

Line-to-line resistance at 25 °C (ohms)0.597 Ω

Temperature rise at rated load (°C)71° C

Temperature rise at service factor load (°C)83° C

Start configurationDOL

Breakdown torque185 lb-ft

Pull-up torque86 lb-ft

Locked-rotor torque115 lb-ft

Starting current (A)189 A

Line-to-line resistance at 25 °C (ohms)0.921 Ω

Temperature rise at rated load (°C)55° C

Temperature rise at service factor load (°C)63° C

Start configurationDOL

Breakdown torque143 lb-ft

Pull-up torque50 lb-ft

Locked-rotor torque75 lb-ft

Starting current (A)96 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	11	55	76	84	87	58	90	70
Efficiency %	0	81.1	87.6	89.4	89.8	89.5	88	89.6
Speed rpm	1799	1795	1791	1785	1780	1775	1768	1777
Line amps A	10.9	13.2	17.7	23.4	30	56.7	44.3	46
Power W	955	5816	10745	15740	20835	26057	31676	23968
Torque lb-ft	0	18.5	37	55.5	74	92.5	111	85.1

Documents & CAD

For this product 3

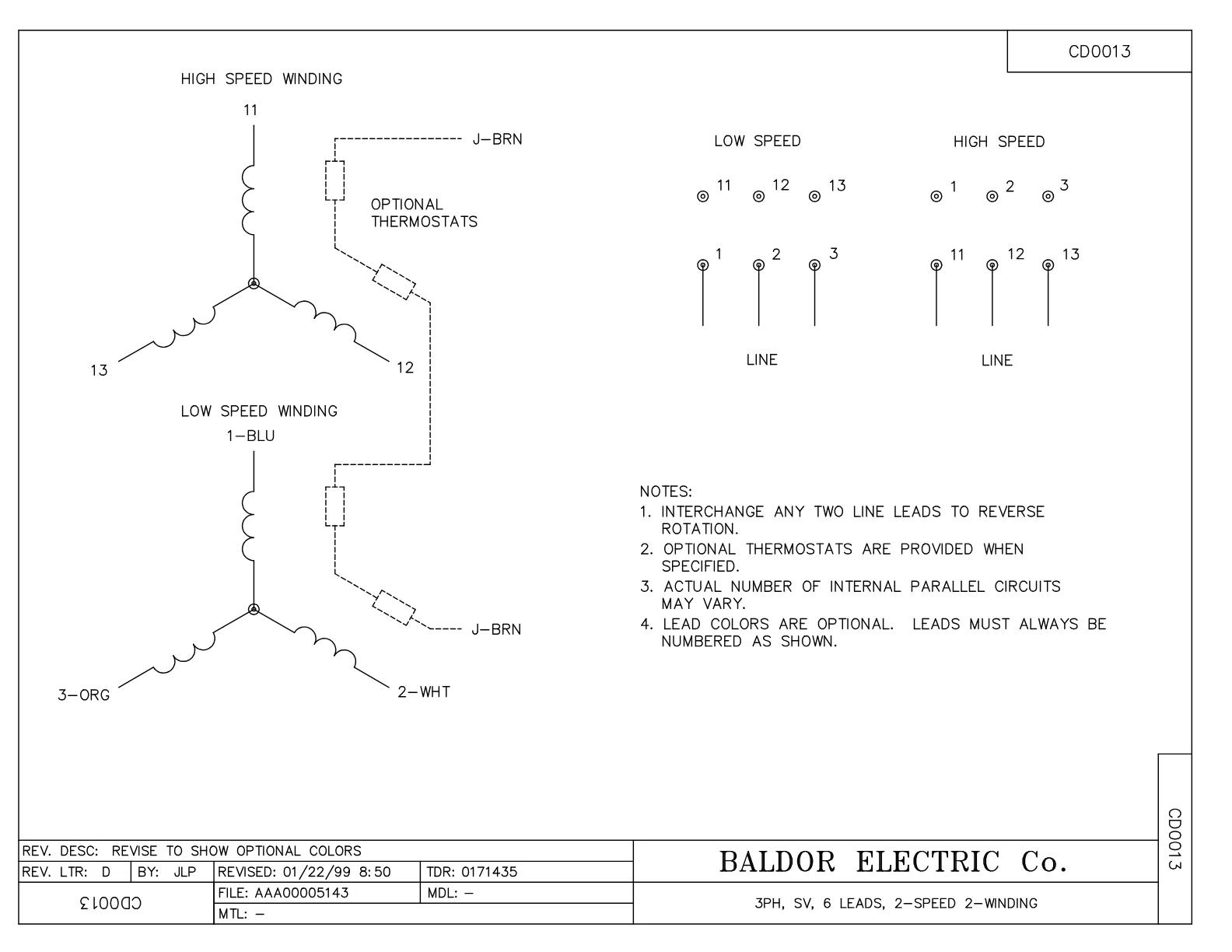

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·778 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·205 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor M1729T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	10 pcs	1,025 motors
12FH1002SP	FAN COVER, CAST	1 pcs	62 motors
10GS1000	GASKET, CONDUIT BOX LID	1 pcs	209 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
