Baldor M1726T

Two Speed Motor - 10 hp / 4-7/16 hp, 1200 rpm / 1800 rpm, 3 ph, 460 V, 254T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1170 rpm / 1760 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # M1726TSKU # YLSGVDXASIM9KZ0

EnclosureTEFC

Frame254T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency4.400 HP @ 60 HZ · 10.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Two Speed Motor - 10 hp / 4-7/16 hp, 1200 rpm / 1800 rpm, 3 ph, 460 V, 254T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1170 rpm / 1760 rpm Base, Foot Mount, Continuous Duty

Baldor M1726T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame254T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency4.400 HP @ 60 HZ · 10.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage12.500 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)6.7 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 14 AWG

Motor type0750M

Mounting arrangementF1

Number of poles4 · 6

Overall length21.07 IN

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1170 rpm · 1760 rpm

Speed code2S-2W-VT

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568116159

Motor CategoryTwo Speed Motor

Motor Supply Voltage460 V

Base RPM1170 rpm / 1760 rpm

Harmonization Code8501.52.4000

Weight233 lbs

ApplicationsFans, blowers, machine tools, hoists, conveyors, pumps.

Additional DetailsDesigned for use in applications in which multiple speeds are required. Heavy duty steel or cast-iron frames, ball bearing, dynamically balanced rotors.

Mounting TypeFoot

Product TypeDefinite Purpose Motors

Nameplate

Catalog numberM1726T

Specification number07H203X115

Horsepower (HP)10/4.4

Voltage (V)460

Current (A)12.5/6.7

Speed (rpm)1760/1170

Frame size254T

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)H

NEMA design letterB

Insulation classF

Rating40C AMB-CONT

Drive end bearing6309

Opposite drive end bearing6307

EnclosureTEFC

Nameplate numberNP1256L

Performance

General characteristics· 460 V, 60 Hz, 10 hp

Line-to-line resistance at 25 °C (ohms)1.47 Ω

Temperature rise at rated load (°C)85° C

Temperature rise at service factor load (°C)105° C

Start configurationDOL

Breakdown torque88 lb-ft

Pull-up torque32 lb-ft

Locked-rotor torque61 lb-ft

Starting current (A)85 A

Line-to-line resistance at 25 °C (ohms)4.26 Ω

Temperature rise at rated load (°C)64° C

Temperature rise at service factor load (°C)76° C

Start configurationDOL

Breakdown torque58 lb-ft

Pull-up torque39 lb-ft

Locked-rotor torque48 lb-ft

Starting current (A)39 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	10	51	74	81	87	87	83	87
Efficiency %	0	80.2	86.4	87.4	86.7	85.2	82.6	85.8
Speed rpm	1799	1789	1779	1767	1756	1742	1722	1748
Line amps A	5.1	5.8	7.4	10	12.5	15.8	20.2	14.5
Power W	406	2376	4387	6461	8631	10891	13325	9987
Torque lb-ft	0	7.5	15	22.5	30	37.5	45	34.5

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·183 KB·English

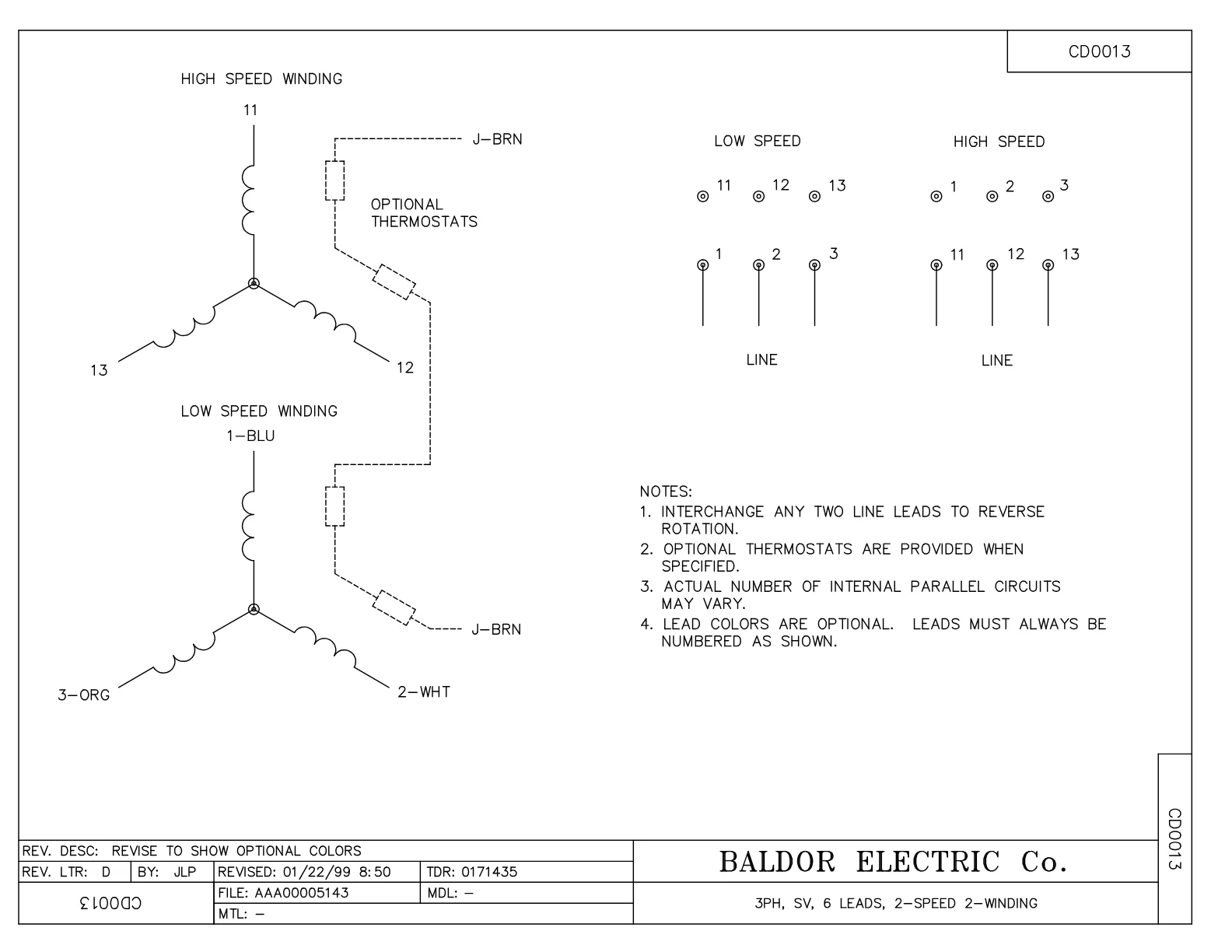

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·752 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor M1726T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
07FH4007SP	PRIMED	1 pcs	189 motors
09CB3501SP	CONDUIT BOX LID FOR 09CB3001 & 09CB3002	1 pcs	392 motors
09GS1013SP	GS FOR 09CB3501, 12CB1500 & 12CB1503 LID	1 pcs	245 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
37FN3002A01SP	EXFN, PLASTIC, 9.00 OD, 1.155 ID	1 pcs	141 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
