Baldor M1711T AC Motors
Two Speed Motor - 15 hp / 7-1/2 hp, 1800 rpm / 900 rpm, 3 ph, 460 V, 256T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1760 rpm / 875 rpm Base, Foot Mount, Continuous Duty
ITEM #6907d0676c556f461693d975 MFR #M1711T SKU #YLS2EPOVWB0J770
Quick Specs
Motor Category: Two Speed Motor
Motor Phase: 3 ph
Motor Horsepower: 15 hp / 7-1/2 hp
Synchronous Rpm: 1800 rpm / 900 rpm
Motor Supply Voltage: 460 V
Frame Size: 256T
Overview
Two Speed Motor - 15 hp / 7-1/2 hp, 1800 rpm / 900 rpm, 3 ph, 460 V, 256T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1760 rpm / 875 rpm Base, Foot Mount, Continuous Duty
Specifications
Motor Category Two Speed Motor
Motor Phase 3 ph
Motor Horsepower 15 hp / 7-1/2 hp
Synchronous Rpm 1800 rpm / 900 rpm
Motor Supply Voltage 460 V
Frame Size 256T
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Full Load Current 19.20 A
Duty Condition Type Continuous Duty
Base RPM 1760 rpm / 875 rpm
Amps @ Voltage 19.2 A @ 460 V
Volts @ Frequency 460 V @ 60 Hz
Shaft Diameter 1.6250 in
Overall Length C Dimension 23.28 in
Type Of Bearing Ball
NEMA Design Class B
Service Factor 1.15
Frame Material Cast Iron
Insulation Class F
Standards Met UR, CSA
Warranty 2 Year Warranty
Harmonization Code 8501.52.4000
Weight 265 lbs
Applications Fans, blowers, machine tools, hoists, conveyors, pumps.
Additional Details Designed for use in applications in which multiple speeds are required. Heavy duty steel or cast-iron frames, ball bearing, dynamically balanced rotors.
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/M1711T
UPC_NO 781568115824

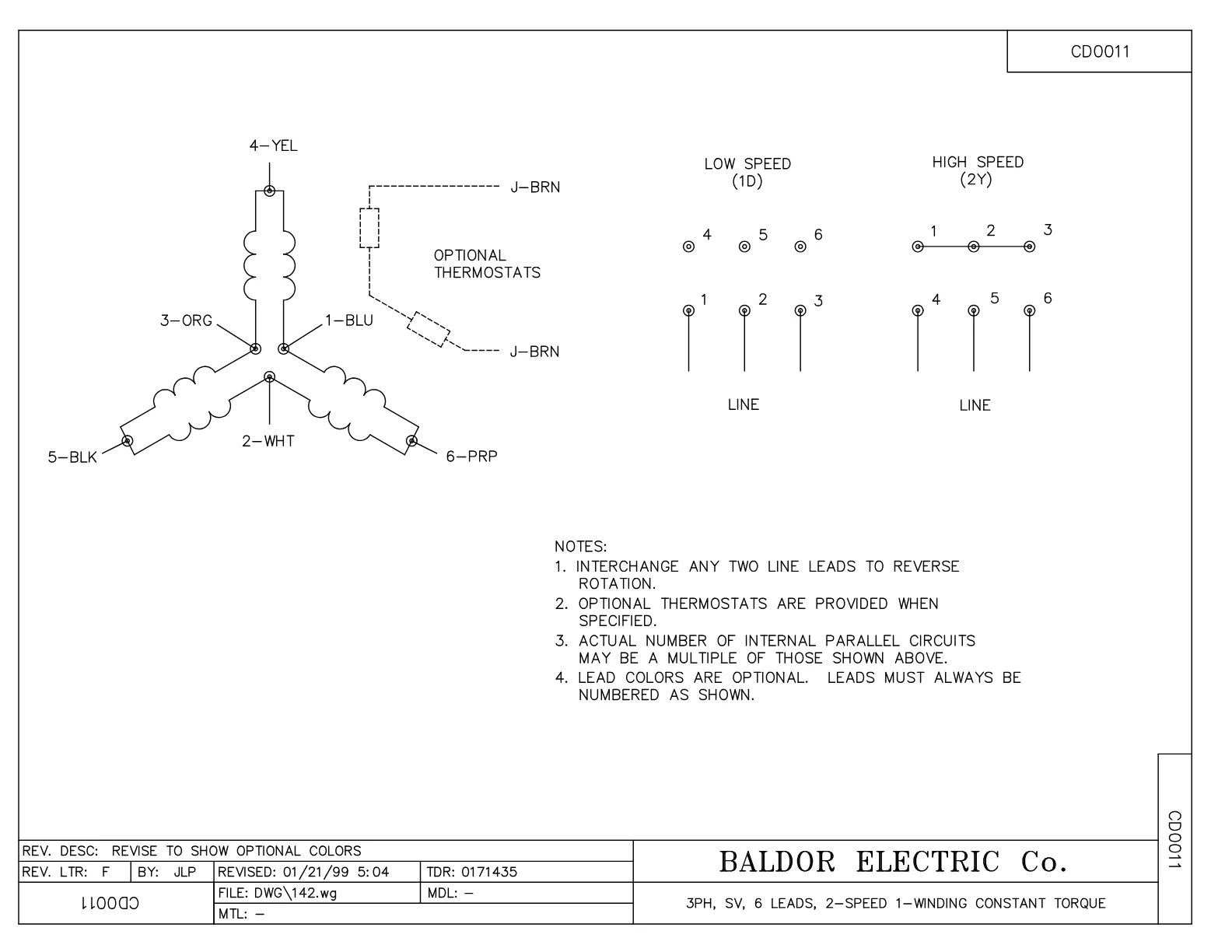

Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=M1711T&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Mounting Type Foot
Product Type Definite Purpose Motors
