Baldor M1707T

Baldor-Reliance M1707T is a two-speed 3/1.5 HP, 1725/850 rpm, 3-phase 460 V, 60 Hz, 184T frame, TEFC general purpose three-phase induction motor.

BaldorMFR # M1707TSKU # YLS24GYOQKQOX19

EnclosureTEFC

Frame184T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency3.000 HP @ 60 HZ · 1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance M1707T is a two-speed 3/1.5 HP, 1725/850 rpm, 3-phase 460 V, 60 Hz, 184T frame, TEFC general purpose three-phase induction motor.

Baldor M1707T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame184T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency3.000 HP @ 60 HZ · 1.500 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage4.200 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)4.2 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeK

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 16 AWG

Motor type3640M

Mounting arrangementF1

Number of poles4 · 8

Overall length18.04 IN

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm · 850 rpm

Speed code2S-1W-CT

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568115787

Nameplate

Catalog numberM1707T

Specification number36A01W675

Horsepower (HP)3/1.5

Voltage (V)460

Current (A)4.2/4.4

Speed (rpm)1725/850

Frame size184T

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)K

NEMA design letter-

Insulation classF

Rating40C AMB-CONT

Drive end bearing6206

Opposite drive end bearing6205

EnclosureTEFC

Nameplate numberNP1256L

Performance

General characteristics· 460 V, 60 Hz, 3 hp

Line-to-line resistance at 25 °C (ohms)6.13 Ω

Temperature rise at rated load (°C)70° C

Temperature rise at service factor load (°C)83° C

Start configurationDOL

Breakdown torque32 lb-ft

Pull-up torque20 lb-ft

Locked-rotor torque31.5 lb-ft

Starting current (A)32.7 A

Line-to-line resistance at 25 °C (ohms)8.34 Ω

Temperature rise at rated load (°C)89° C

Temperature rise at service factor load (°C)98° C

Start configurationDOL

Breakdown torque36 lb-ft

Pull-up torque29 lb-ft

Locked-rotor torque31.1 lb-ft

Starting current (A)19.1 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	13	49	68	78	84	87	89	86
Efficiency %	0	74.1	81.5	82.9	82.3	80.9	78.5	81.5
Speed rpm	1797	1787	1772	1759	1742	1725	1702	1732
Line amps A	1.8	2.1	2.7	3.3	4.2	5	6	4.68
Power W	186	779	1405	2057	2736	3445	4204	0
Torque lb-ft	0	2.275	4.55	6.825	9.1	11.375	13.65	0

Documents & CAD

For this product 3

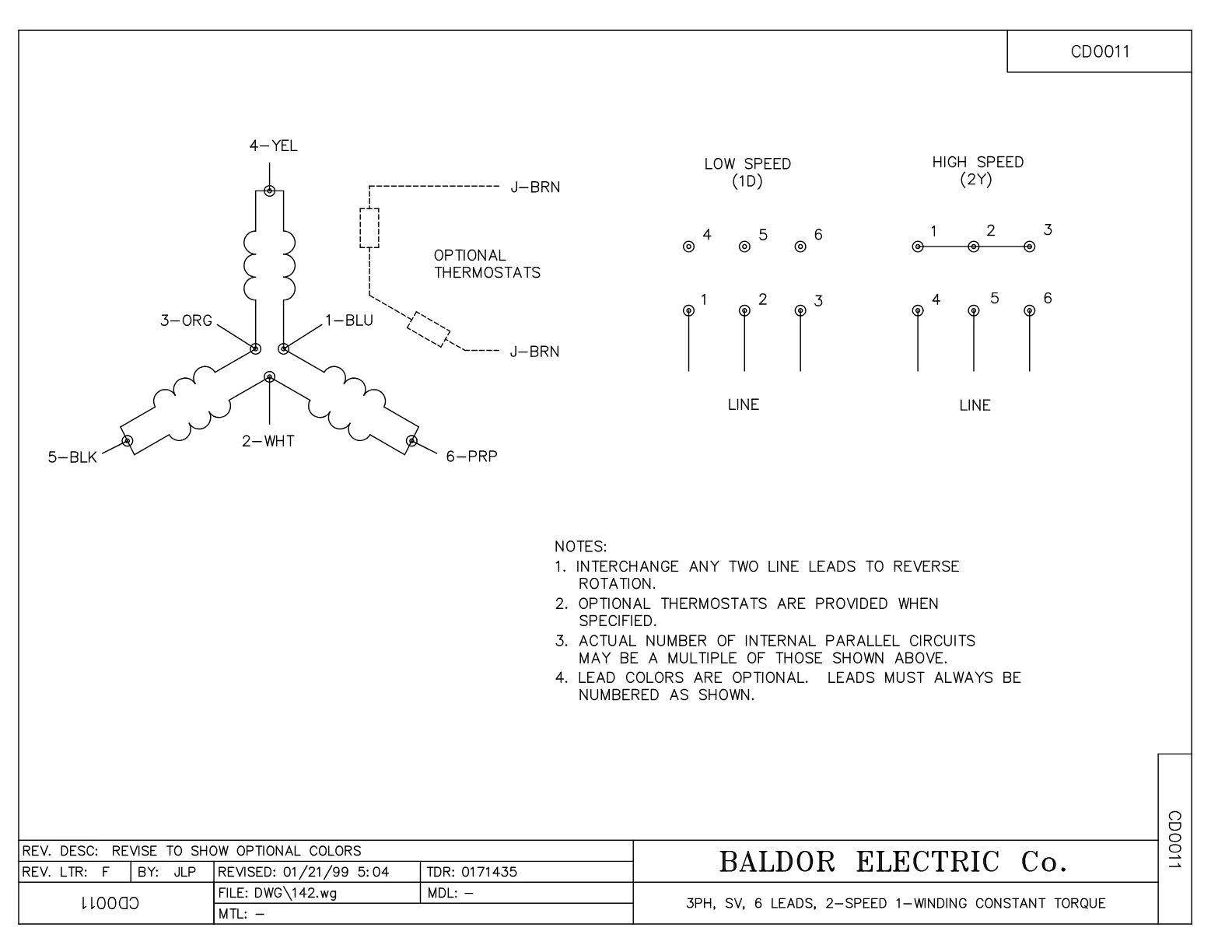

Wiring DiagramWiring DiagramPDF·40 KB·English

DatasheetDatasheetPDF·683 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·113 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor M1707T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
36EP3104A01	FREP MACH W/GRSR, RAISED FH PADS	1 pcs	141 motors
36EP3100A01SP	PUEP ASSEMBLY FOR ROUTING PURPOSES	1 pcs	74 motors
37GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK LEXID	1 pcs	329 motors
36FN3000A01SP	EXFN, PLASTIC, 7.00 OD, .912 ID	1 pcs	167 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
