Baldor M1554T

Two Speed Motor - 1 hp / 1/4 hp, 1800 rpm / 900 rpm, 3 ph, 208-230 V, 143T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm / 850 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # M1554TSKU # YLSXZC8CT0SVUKE

EnclosureTEFC

Frame143T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.000 HP @ 60 HZ · .250 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Two Speed Motor - 1 hp / 1/4 hp, 1800 rpm / 900 rpm, 3 ph, 208-230 V, 143T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm / 850 rpm Base, Foot Mount, Continuous Duty

Baldor M1554T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame143T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.000 HP @ 60 HZ · .250 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)900 RPM @ 60 HZ

Voltage at frequency208.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.530 A @ 230.0 V · 3.150 A @ 208.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.5 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3520M

Mounting arrangementF1

Number of poles4 · 8

Overall length12.31 IN

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1720 rpm · 860 rpm

Speed code2S-1W-VT

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568115855

Motor CategoryTwo Speed Motor

Motor Supply Voltage208-230 V

Base RPM1725 rpm / 850 rpm

Harmonization Code8501.51.6040

Weight34 lbs

ApplicationsFans, blowers, machine tools, hoists, conveyors, pumps.

Additional DetailsDesigned for use in applications in which multiple speeds are required. Heavy duty steel or cast-iron frames, ball bearing, dynamically balanced rotors.

Mounting TypeFoot

Product TypeDefinite Purpose Motors

Documents & CAD

For this product 2

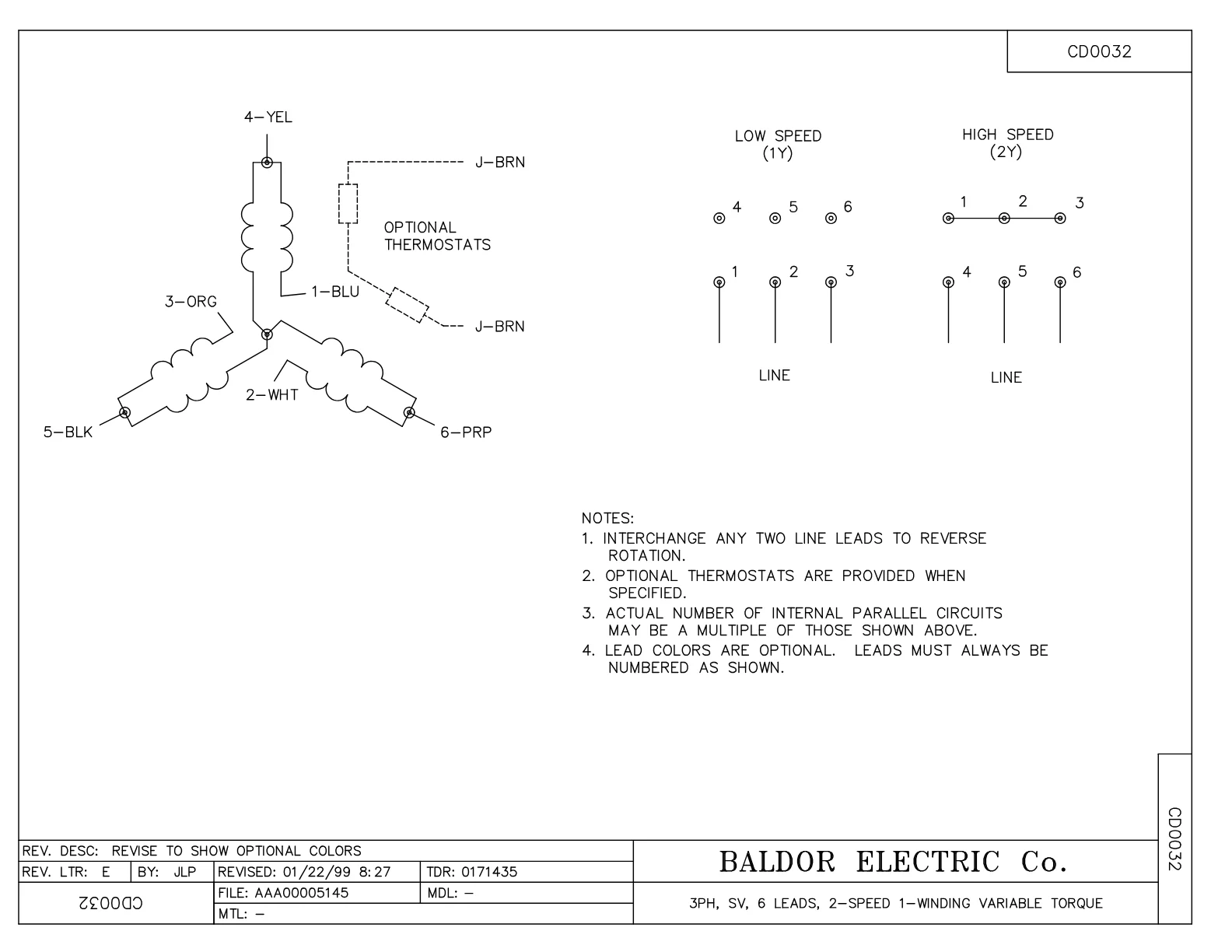

Wiring DiagramWiring DiagramPDF·40 KB·English

DatasheetDatasheetPDF·515 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·105 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor M1554T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
35FH4005A84SP	IEC FH W/GRSR, NO DIMPLES PRIMED	1 pcs	167 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors

Accessories 2

Genuine accessories that can be used with the Baldor M1554T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
