Baldor M1509T AC Motors
Two Speed Motor - 7-1/2 hp / 3-8/10 hp, 1800 rpm / 900 rpm, 3 ph, 230 V, 215T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1740 rpm / 860 rpm Base, Foot Mount, Continuous Duty
ITEM #6907d0656c556f461693d901 MFR #M1509T SKU #YLSFETMLQA1C7ML
Quick Specs
Motor Category: Two Speed Motor
Motor Phase: 3 ph
Motor Horsepower: 7-1/2 hp / 3-8/10 hp
Synchronous Rpm: 1800 rpm / 900 rpm
Motor Supply Voltage: 230 V
Frame Size: 215T
Overview
Two Speed Motor - 7-1/2 hp / 3-8/10 hp, 1800 rpm / 900 rpm, 3 ph, 230 V, 215T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1740 rpm / 860 rpm Base, Foot Mount, Continuous Duty
Specifications
Motor Category Two Speed Motor
Motor Phase 3 ph
Motor Horsepower 7-1/2 hp / 3-8/10 hp
Synchronous Rpm 1800 rpm / 900 rpm
Motor Supply Voltage 230 V
Frame Size 215T
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Full Load Current 18.90 A
Duty Condition Type Continuous Duty
Base RPM 1740 rpm / 860 rpm
Amps @ Voltage 18.9 A @ 230 V
Volts @ Frequency 230 V @ 60 Hz
Shaft Diameter 1.3750 in
Overall Length C Dimension 20.51 in
Type Of Bearing Ball
NEMA Design Class B
Service Factor 1.15
Frame Material Steel
Insulation Class F
Standards Met UR, CSA
Warranty 2 Year Warranty
Harmonization Code 8501.52.4000
Weight 132 lbs
Applications Fans, blowers, machine tools, hoists, conveyors, pumps.
Additional Details Designed for use in applications in which multiple speeds are required. Heavy duty steel or cast-iron frames, ball bearing, dynamically balanced rotors.
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/M1509T
UPC_NO 781568115732

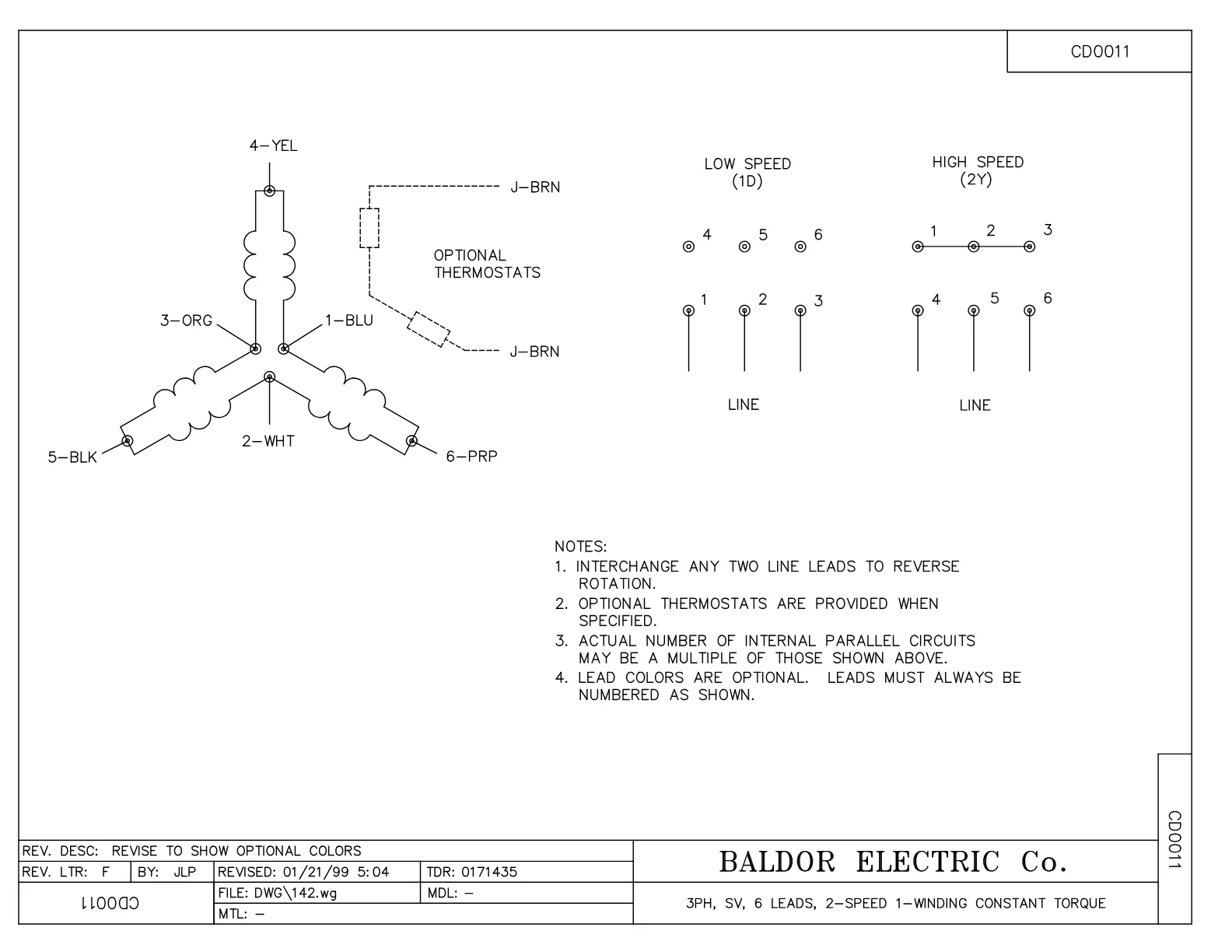

Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=M1509T&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Mounting Type Foot
Product Type Definite Purpose Motors
