Baldor M1505T AC Motors
Two Speed Motor - 1-1/2 hp / 3/4 hp, 1800 rpm / 900 rpm, 3 ph, 230 V, 145T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm / 850 rpm Base, Foot Mount, Continuous Duty
ITEM #6907d0656c556f461693d8ff MFR #M1505T SKU #YLSYCXUSCBCCCDP
Quick Specs
Motor Category: Two Speed Motor
Motor Phase: 3 ph
Motor Horsepower: 1-1/2 hp / 3/4 hp
Synchronous Rpm: 1800 rpm / 900 rpm
Motor Supply Voltage: 230 V
Frame Size: 145T
Overview
Two Speed Motor - 1-1/2 hp / 3/4 hp, 1800 rpm / 900 rpm, 3 ph, 230 V, 145T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm / 850 rpm Base, Foot Mount, Continuous Duty
Specifications
Motor Category Two Speed Motor
Motor Phase 3 ph
Motor Horsepower 1-1/2 hp / 3/4 hp
Synchronous Rpm 1800 rpm / 900 rpm
Motor Supply Voltage 230 V
Frame Size 145T
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Full Load Current 4.10 / 4.30 A
Duty Condition Type Continuous Duty
Base RPM 1725 rpm / 850 rpm
Amps @ Voltage 4.1 A @ 230 V
Volts @ Frequency 230 V @ 60 Hz
Shaft Diameter 0.8750 in
Overall Length C Dimension 14.19 in
Service Factor 1.15
Frame Material Steel
Insulation Class H
Standards Met UR, CSA
Harmonization Code 8501.52.4000
Weight 49 lbs
Applications Fans, blowers, machine tools, hoists, conveyors, pumps.
Additional Details Designed for use in applications in which multiple speeds are required. Heavy duty steel or cast-iron frames, ball bearing, dynamically balanced rotors.
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/M1505T
UPC_NO 781568115695

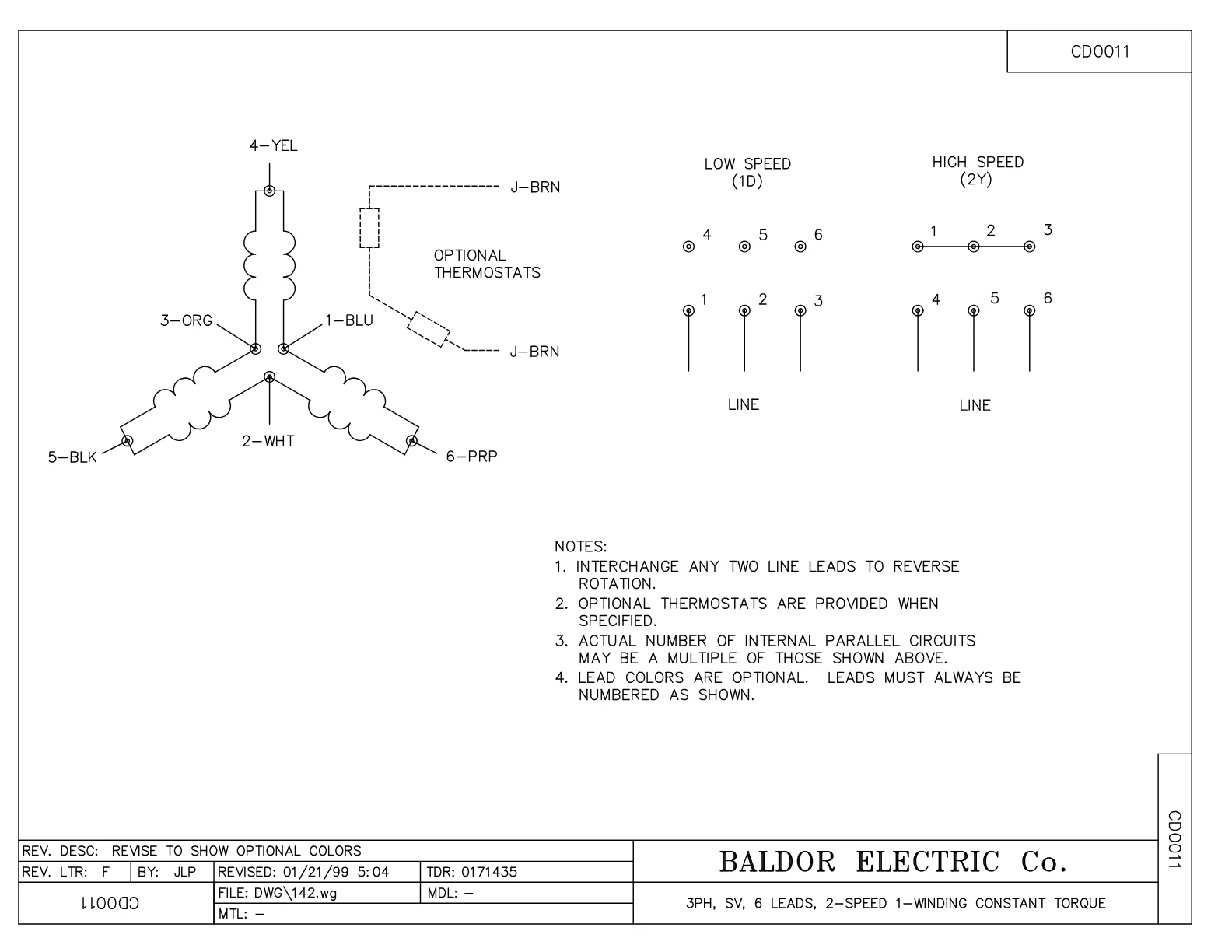

Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=M1505T&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Mounting Type Foot
Product Type Definite Purpose Motors
