Baldor M1225T AC Motors
Two Speed Motor - 7-1/2 hp / 3-1/3 hp, 1200 rpm / 1800 rpm, 3 ph, 460 V, 256T Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1160 rpm / 1740 rpm Base, Foot Mount, Continuous Duty
ITEM #6907d0546c556f461693d535 MFR #M1225T SKU #YLSHSABZ0SRVZ94
Quick Specs
Motor Category: Two Speed Motor
Motor Phase: 3 ph
Motor Horsepower: 7-1/2 hp / 3-1/3 hp
Synchronous Rpm: 1200 rpm / 1800 rpm
Motor Supply Voltage: 460 V
Frame Size: 256T
Overview
Two Speed Motor - 7-1/2 hp / 3-1/3 hp, 1200 rpm / 1800 rpm, 3 ph, 460 V, 256T Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1160 rpm / 1740 rpm Base, Foot Mount, Continuous Duty
Specifications
Motor Category Two Speed Motor
Motor Phase 3 ph
Motor Horsepower 7-1/2 hp / 3-1/3 hp
Synchronous Rpm 1200 rpm / 1800 rpm
Motor Supply Voltage 460 V
Frame Size 256T
Enclosure Type OPSB (Open Slotted Band)
Frequency Rating 60 Hz
Full Load Current 9.90 A
Duty Condition Type Continuous Duty
Base RPM 1160 rpm / 1740 rpm
Amps @ Voltage 9.9 A @ 460 V
Volts @ Frequency 460 V @ 60 Hz
Shaft Diameter 1.6250 in
Overall Length C Dimension 22.25 in
Type Of Bearing Ball
NEMA Design Class B
Service Factor 1.15
Frame Material Steel
Insulation Class B
IP Rating 22/23
Standards Met UR, CSA
Warranty 2 Year Warranty
Harmonization Code 8501.52.4000
Weight 209 lbs
Applications Fans, blowers, and pumps.
Additional Details Designed for use in applications in which multiple speeds are required. Heavy duty steel or cast-iron frames, ball bearing, dynamically balanced rotors.
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/M1225T
UPC_NO 781568116487

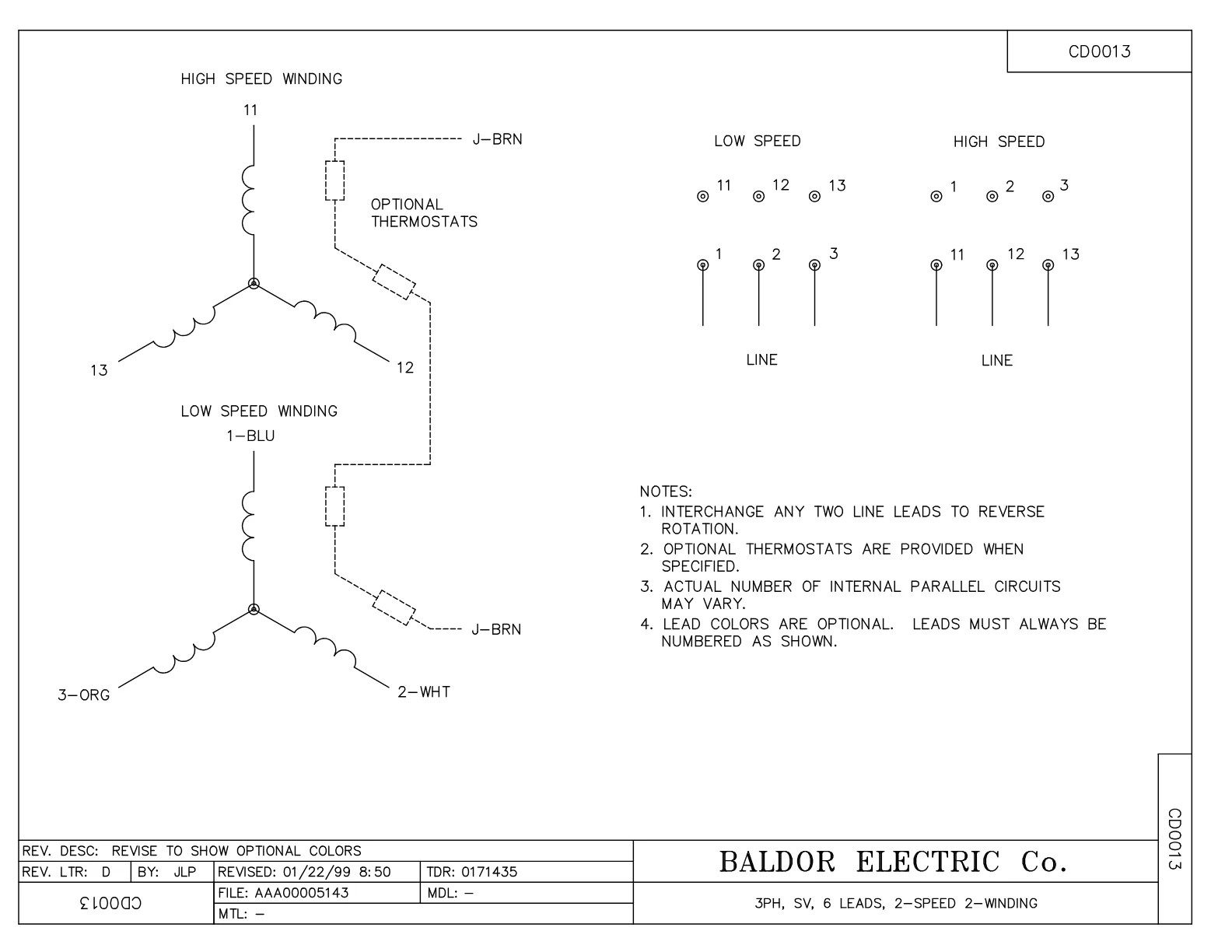

Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=M1225T&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Mounting Type Foot
Product Type Definite Purpose Motors
