Baldor M1008T

Baldor-Reliance M1008T; 5/1.3 HP, 1725/850 rpm, three-phase 230 V 60 Hz, 184T frame, ODP enclosed general purpose two-speed three-phase AC electric motor.

BaldorMFR # M1008TSKU # YLS6VRMLCKAD1JR

EnclosureODP

Frame184T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency5.000 HP @ 60 HZ · 1.300 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance M1008T; 5/1.3 HP, 1725/850 rpm, three-phase 230 V 60 Hz, 184T frame, ODP enclosed general purpose two-speed three-phase AC electric motor.

Baldor M1008T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame184T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency5.000 HP @ 60 HZ · 1.300 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage13.200 A @ 230.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)5.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 14 AWG

Motor type3634M

Mounting arrangementF1

Number of poles4 · 8

Overall length15.00 IN

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.00

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm · 850 rpm

Speed code2S-1W-VT

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568116234

Nameplate

Catalog numberM1008T

Specification number36B01W605

Horsepower (HP)5/1.3

Voltage (V)230

Current (A)13.2/5

Speed (rpm)1725/850

Frame size184T

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)J

NEMA design letterB

Insulation classF

Rating40C AMB-CONT

Drive end bearing6206

Opposite drive end bearing6205

EnclosureOPEN

Nameplate numberNP1256L

Performance

General characteristics· 230 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)0.988 Ω

Temperature rise at rated load (°C)67° C

Start configurationDOL

Breakdown torque50 lb-ft

Pull-up torque31 lb-ft

Locked-rotor torque34 lb-ft

Starting current (A)96 A

Line-to-line resistance at 25 °C (ohms)4.05 Ω

Temperature rise at rated load (°C)54° C

Start configurationDOL

Breakdown torque19 lb-ft

Pull-up torque10 lb-ft

Locked-rotor torque11.5 lb-ft

Starting current (A)19.2 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	13	46	68	79	85	89	90
Efficiency %	0	72.2	80.9	83	82.9	81.7	79.8
Speed rpm	1797	1780	1762	1743	1720	1698	1670
Line amps A	6.3	7	8.6	10.7	13.2	16.2	19.5
Power W	326	1339	2367	3423	4509	5646	6822
Torque lb-ft	0	3.825	7.65	11.475	15.3	19.125	22.95

Documents & CAD

For this product 3

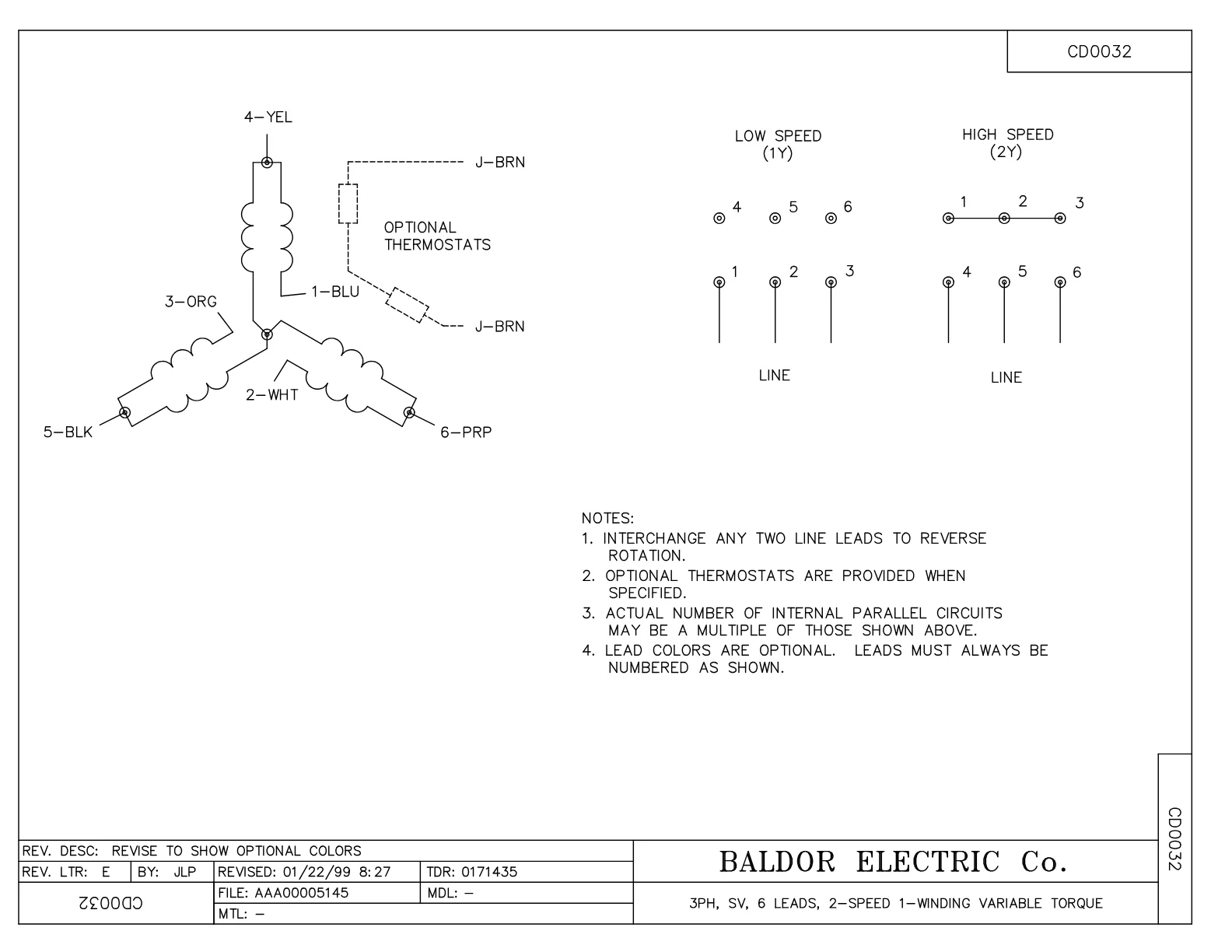

Wiring DiagramWiring DiagramPDF·40 KB·English

DatasheetDatasheetPDF·680 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·109 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor M1008T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
