Baldor L3712T

Baldor-Reliance L3712T; 10 HP, 1740 rpm, single-phase 230 V 60 Hz, 215T frame, TEFC enclosed general purpose single-phase AC electric motor.

BaldorMFR # L3712TSKU # YLSGSRMPXU5TOLY

EnclosureTEFC

Frame215T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency10.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance L3712T; 10 HP, 1740 rpm, single-phase 230 V 60 Hz, 215T frame, TEFC enclosed general purpose single-phase AC electric motor.

Baldor L3712T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame215T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency10.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage38.000 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load86.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)38.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeF

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitCap Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 10 AWG, A PH

Motor type3748LC

Mounting arrangementF1

Number of poles4

Overall length20.52 IN

Power factor98

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.00

Shaft diameter1.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1740 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568100905

Nameplate

Catalog numberL3712T

Specification number37M293T875

Horsepower (HP)10

Voltage (V)230

Current (A)38

Speed (rpm)1740

Frame size215T

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)F

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)86.5

Power factor98

Rating40C AMB-CONT

Drive end bearing6307

Opposite drive end bearing6206

EnclosureTEFC

Nameplate numberNP1256L

Performance

General characteristics· 230 V, 60 Hz, 10 hp

Line-to-line resistance at 25 °C (ohms)0.17 Ω / 0.488 Ohms B Ph

Temperature rise at rated load (°C)96° C

Start configurationDOL

Breakdown torque84 lb-ft

Pull-up torque56.4 lb-ft

Locked-rotor torque76.8 lb-ft

Starting current (A)234 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	65	96	98	98	98	97	95
Efficiency %	0	75.4	86.2	87.7	86.8	84.1	79.4
Speed rpm	1799	1788	1775	1759	1741	1720	1696
Line amps A	4.37	10.7	18.9	28	37.7	49.1	64.9
Power W	657	2364	4270	6325	8498	10958	14148
Torque lb-ft	0	7.02	14.6	22.2	29.8	37.7	46.6

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·105 KB·English

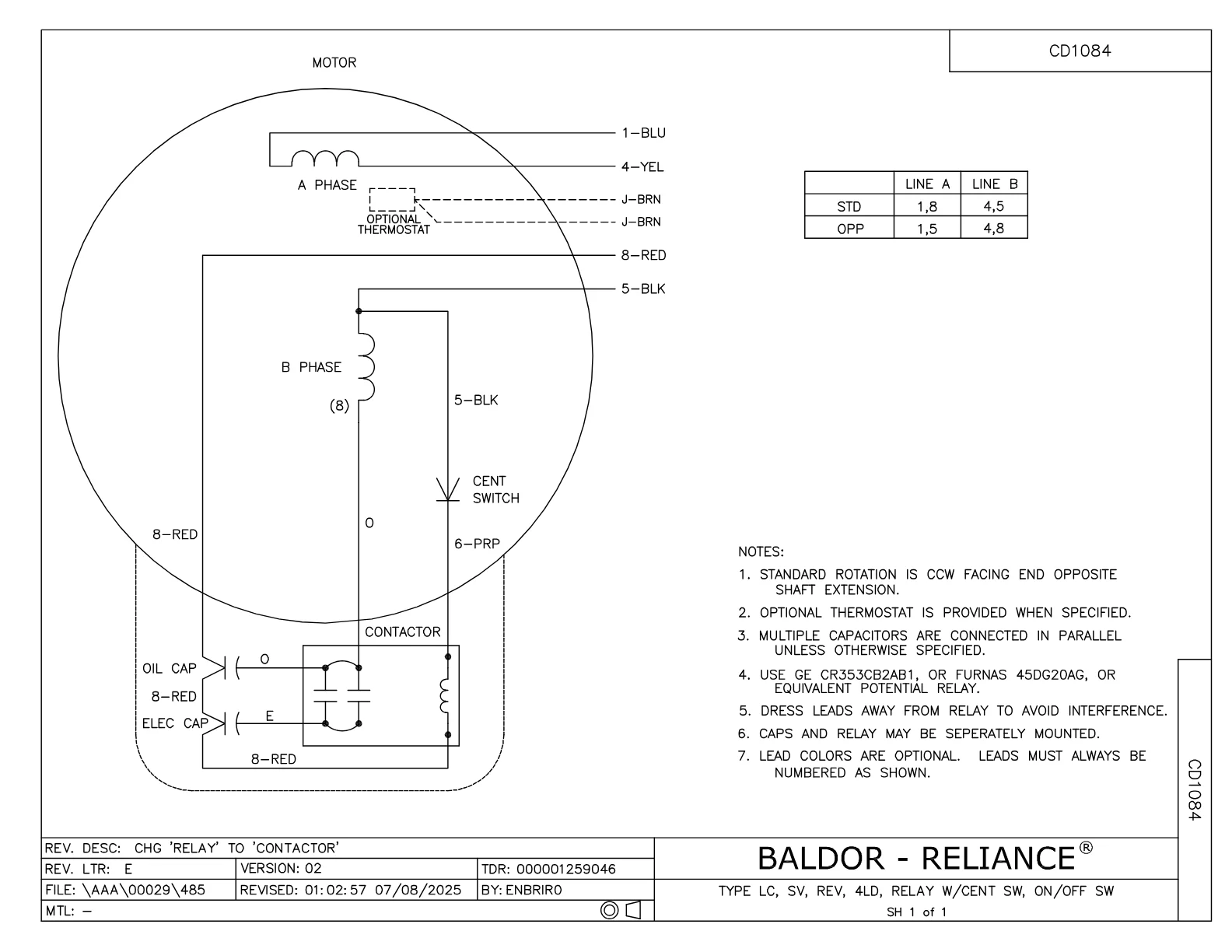

Wiring DiagramWiring DiagramPDF·49 KB·English

DatasheetDatasheetPDF·596 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor L3712T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3050F09SP	CAPACITOR 50 MFD 370 VAC	2 pcs	69 motors
RE5029	MARS 91423 DOUBLE POLE 230-240V CONTACTO	1 pcs	8 motors
EC1216C06SP	ELEC CAP, 216-259 MFD, 250V, 2.06D X 4.	4 pcs	45 motors
37FN3002A01SP	EXFN, PLASTIC, 9.00 OD, 1.155 ID	1 pcs	141 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
