Baldor L3709T AC Motors
General Purpose Motor - 7-1/2 hp, 3600 rpm, 1 ph, 230 V, 213T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty
ITEM #6907d0ee6c556f461693dffc MFR #L3709T SKU #YLSVCOW2V1J4SUV
Quick Specs
Motor Phase: 1 ph
Motor Horsepower: 7-1/2 hp
Synchronous Rpm: 3600 rpm
Motor Supply Voltage: 230 V
Frame Size: 213T
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Overview
General Purpose Motor - 7-1/2 hp, 3600 rpm, 1 ph, 230 V, 213T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty
Features and Benefits
- Heavy-gauge steel frames and a heavy-duty base seam welded to the frame
- Ball bearings
- “Snap Action” starting switch and gasketed conduit box and capacitor cover
- TEFC, foot mount
- Applications: Compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools and others
Specifications
Motor Phase 1 ph
Motor Horsepower 7-1/2 hp
Synchronous Rpm 3600 rpm
Motor Supply Voltage 230 V
Frame Size 213T
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Base RPM 3450 rpm
Duty Condition Type Continuous Duty
Mounting Type Foot
Full Load Current 33.00 A
Full Load Efficiency 83.00 %
Amps @ Voltage 36.0 A @ 208 V; 33.0 A @ 230 V
Volts @ Frequency 230 V @ 60 Hz
Description Keyword 7-1/2 hp
Shaft Diameter 1.3750 in
Overall Length C Dimension 17.89 in
Warranty 2 Year Warranty
Type Of Bearing Ball
NEMA Design Class L
Service Factor 1.00
Frame Material Steel
Insulation Class B
IP Rating 44
Standards Met UR, CSA
Weight 121 lbs
Applications Compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools and others.
Additional Details Heavy gauge steel frames and a heavy duty base seam welded to the frame, ball bearings, a “Snap Action” starting switch and gasketed conduit box and capacitor cover.
Harmonization Code 8501.40.6040
UPC_NO 781568100875
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/L3709T
Motor Category General Purpose Motor

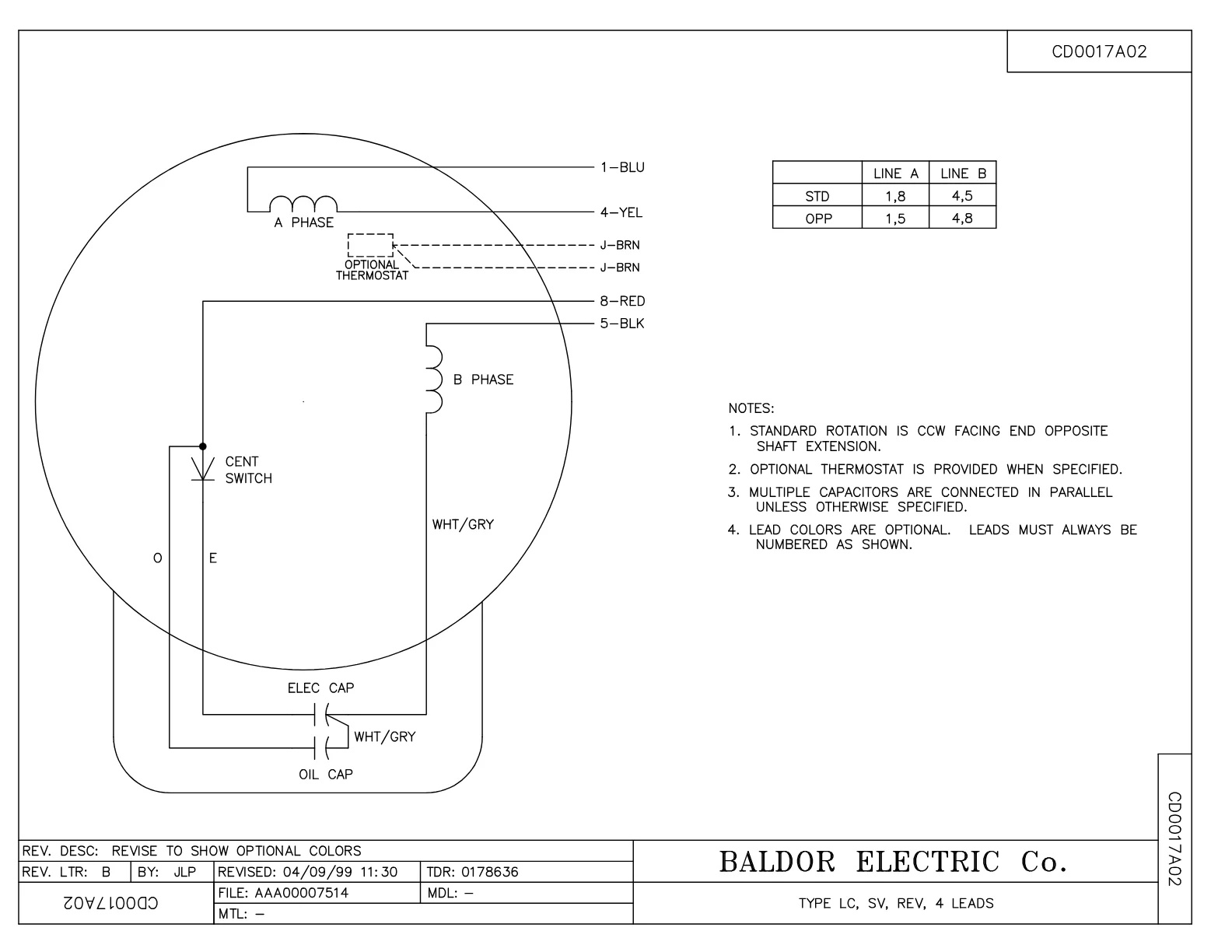

Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=L3709T&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Product Type General Purpose Motors
