How can I get a price quote for Baldor L3708T-50?

You can request a fast quote for Baldor L3708T-50 from Yılsa Engineering. Reference part number YLSG47K8PW3LIOY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor L3708T-50 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor L3708T-50 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor L3708T-50?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor L3708T-50

General Purpose Motor - 5 hp, 1500 rpm, 1 ph, 220 V, 213T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50 Hz, 1450 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # L3708T-50SKU # YLSG47K8PW3LIOY

EnclosureTEFC

Frame213T

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency3.700 KW @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 5 hp, 1500 rpm, 1 ph, 220 V, 213T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50 Hz, 1450 rpm Base, Foot Mount, Continuous Duty

Baldor L3708T-50

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame213T

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency3.700 KW @ 50 HZ

Phase1

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency220.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · UKCA · WEEE · CE · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage20.400 A @ 220.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load86.3 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)20.4 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 12 AWG, A PH

Motor type3740LC

Mounting arrangementF1

Number of poles4

Overall length19.02 IN

Power factor96

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter1.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568119785

Motor Supply Voltage220 V

Base RPM1450 rpm

Mounting TypeFoot

Weight134 lbs

ApplicationsPumps, fans and other applications where only 50 hertz power is available.

Additional DetailsCE certified. Windings tied each end at every slot for rigidity. Ball bearings, high temperature insulation, copper windings.

Harmonization Code8501.40.6040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberL3708T-50

Specification number37C001Q077G1

Horsepower (HP)5/3.7KW

Voltage (V)220

Current (A)20.4

Speed (1/min)1450

Frame size213T

Frequency (Hz)50

Phase1

Service factor1.00

Code letter (locked rotor kVA)G

NEMA design letter-

Insulation classF

NEMA nominal efficiency (%)86.3

Power factor96

Rating40C AMB-S1 CONT

Drive end bearing6307

Opposite drive end bearing6206

EnclosureTEFC

Nameplate numberNP1372L

Performance

General characteristics· 220 V, 50 Hz, 3.7 kw

Line-to-line resistance at 25 °C (ohms)0.39593 Ω / 1.2526 Ohms B Ph

Temperature rise at rated load (°C)60° C

Start configurationDOL

Breakdown torque56 lb-ft

Pull-up torque24.2 lb-ft

Locked-rotor torque35.6 lb-ft

Starting current (A)135 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	43	86	93	95	96	96	95
Efficiency %	0	71.6	83.1	86.4	86.8	85.6	83.2
Speed rpm	1498.9	1491.8	1483.6	1474.9	1464.8	1452.8	1437.9
Line amps A	4.34	6.88	10.9	15.3	20.3	25.7	32
Power W	413	1294	2228	3212	4263	5404	6690
Torque lb-ft	0	4.372	8.784	13.25	17.78	22.41	27.24

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·105 KB·English

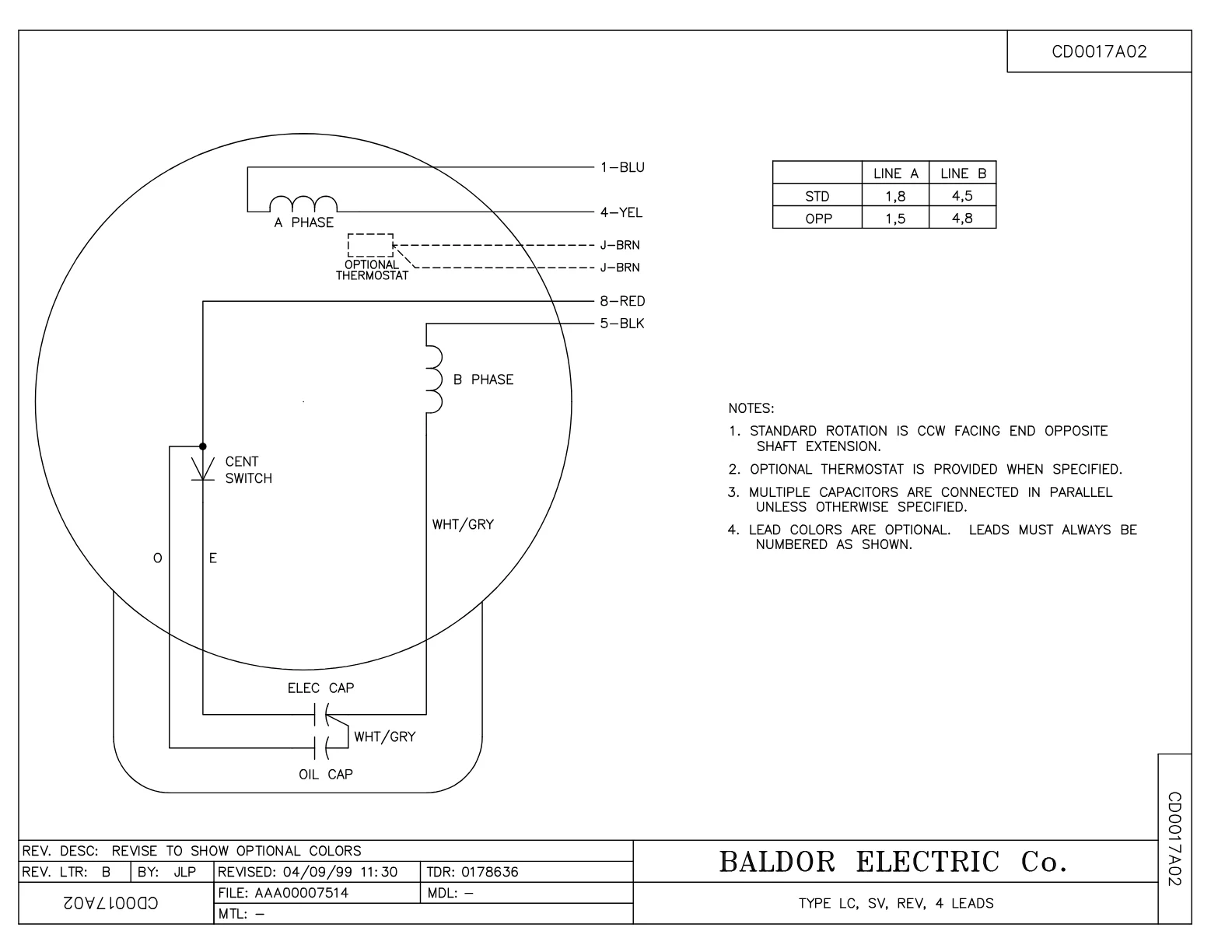

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·595 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

CAD Files 7

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor L3708T-50 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3060F10SP	CYL OIL CAP 60MFD/370V	1 pcs	14 motors
37FN3002A01SP	EXFN, PLASTIC, 9.00 OD, 1.155 ID	1 pcs	141 motors
37GS1000SP	GASKET, CONDUIT BOX STD., .06 THICK LEXI	1 pcs	264 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	2 pcs	1,543 motors
37CB3802SP	CAPACITOR COVER, CAST	1 pcs	8 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors

Accessories 1

Genuine accessories that can be used with the Baldor L3708T-50 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
