Baldor L3705 AC Motors
U Frame Motor - 3 hp, 1800 rpm, 1 ph, 115/230 V, 215 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Foot Mount, Continuous Duty
ITEM #6907d0626c556f461693d77f MFR #L3705 SKU #YLS57URVXNKQ28R
Quick Specs
Motor Category: U-Frame Motor
Motor Phase: 1 ph
Motor Horsepower: 3 hp
Synchronous Rpm: 1800 rpm
Motor Supply Voltage: 115/230 V
Frame Size: 215
Overview
U Frame Motor - 3 hp, 1800 rpm, 1 ph, 115/230 V, 215 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Foot Mount, Continuous Duty
Features and Benefits
- Heavy-gauge steel frames and a heavy-duty base seam welded to the frame
- Ball bearings
- “Snap Action” starting switch and gasketed conduit box and capacitor cover
- TEFC, foot mount
- Applications: Compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools and others
Specifications
Motor Category U-Frame Motor
Motor Phase 1 ph
Motor Horsepower 3 hp
Synchronous Rpm 1800 rpm
Motor Supply Voltage 115/230 V
Frame Size 215
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Full Load Current 14.00 A
Duty Condition Type Continuous Duty
Base RPM 1725 rpm
Full Load Efficiency 80.00 %
Amps @ Voltage 30.0 A @ 115 V; 15.0 A @ 208 V; 14.0 A @ 230 V
Volts @ Frequency 115 V @ 60 Hz; 230 V @ 60 Hz
Shaft Diameter 1.1250 in
Overall Length C Dimension 17.51 in
Type Of Bearing Ball
NEMA Design Class L
Service Factor 1.15
Frame Material Steel
Insulation Class B
IP Rating 44
Standards Met UR, CSA
Warranty 2 Year Warranty
Harmonization Code 8501.40.6040
Weight 116 lbs
Applications Pumps, compressors, fans, conveyors, machine tools and other general purpose single phase applications requiring NEMA U-frame mounting.
Additional Details Ball bearings, heavy-gauge steel frames, Exxon Polyrex EM grease, All the features of our stock general purpose single phase NEMA T-frame motors but with NEMA U-frame mounting dimensions.
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/L3705
UPC_NO 781568100783

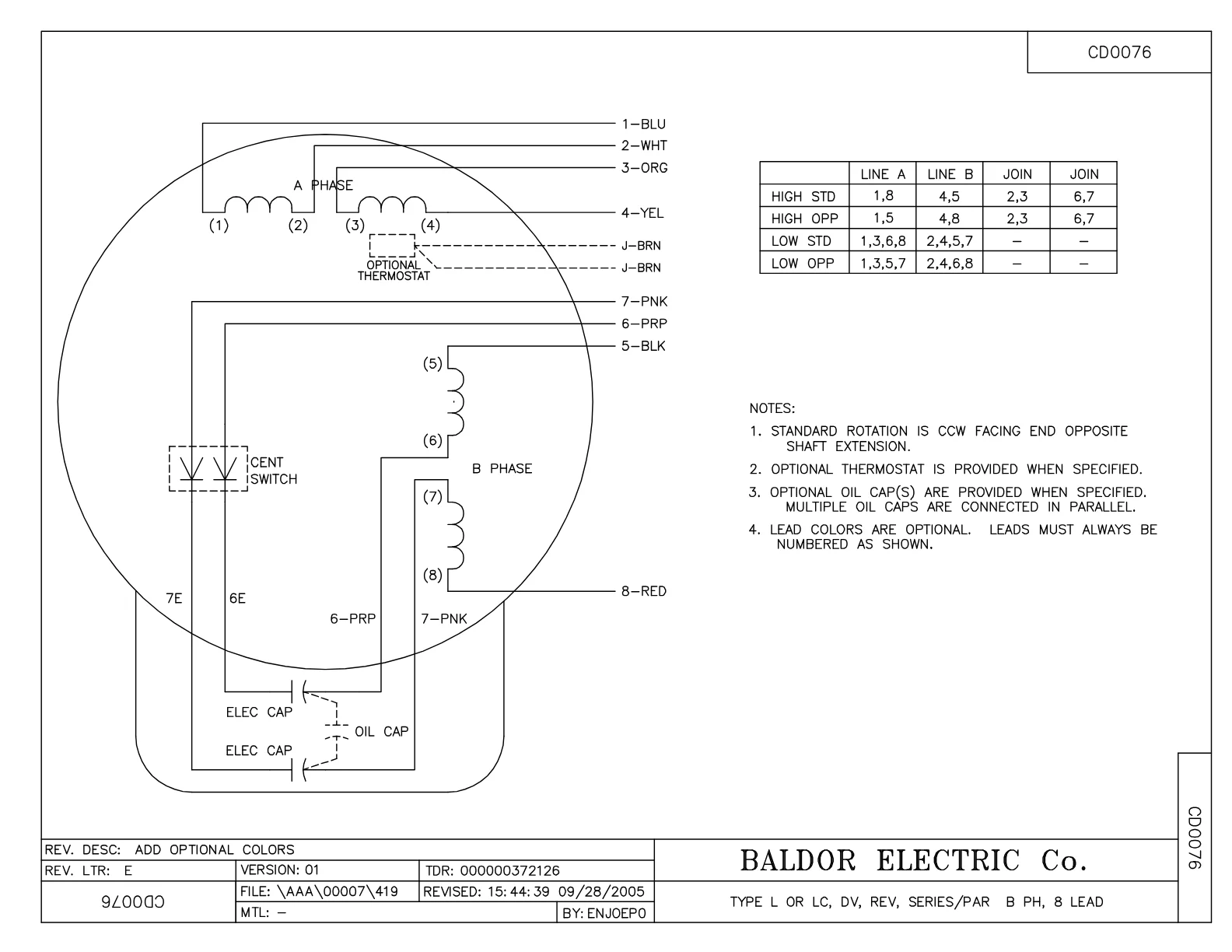

Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=L3705&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Mounting Type Foot
Product Type Definite Purpose Motors
