Baldor L3609T-50

Baldor-Reliance L3609T-50; 2.2 kW, 1440 rpm, single-phase 220 V 50 Hz, 184T frame, TEFC enclosed, IEC60034-30 general purpose single-phase AC electric motor.

BaldorMFR # L3609T-50SKU # YLS7ISRIEEPJKMK

EnclosureTEFC

Frame184T

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency2.200 KW @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance L3609T-50; 2.2 kW, 1440 rpm, single-phase 220 V 50 Hz, 184T frame, TEFC enclosed, IEC60034-30 general purpose single-phase AC electric motor.

Baldor L3609T-50

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame184T

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency2.200 KW @ 50 HZ

Phase1

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency220.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · UKCA · WEEE · CE · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage12.000 A @ 220.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load84.3 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)12.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 14 AWG, A PH

Motor type3646LC

Mounting arrangementF1

Number of poles4

Overall length18.06 IN

Power factor98

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1440 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568119778

Nameplate

Catalog numberL3609T-50

Specification number36E004Q058

Horsepower (HP)3/2.2kw IEC60034-30

Voltage (V)220

Current (A)12

Speed (1/min)1440

Frame size184T

Frequency (Hz)50

Phase1

Service factor1.15

Code letter (locked rotor kVA)G

NEMA design letter-

Insulation classF

NEMA nominal efficiency (%)84.3

Power factor98

Rating40C AMB-S1 CONT

Drive end bearing6206

Opposite drive end bearing6205

EnclosureTEFC

Nameplate numberNP1372L

Performance

General characteristics· 220 V, 50 Hz, 2.2 kw

Line-to-line resistance at 25 °C (ohms)0.85023 Ω / 1.4968 Ohms B Ph

Temperature rise at rated load (°C)60° C

Temperature rise at service factor load (°C)79° C

Start configurationDOL

Breakdown torque25.1 lb-ft

Pull-up torque17.2 lb-ft

Locked-rotor torque31.3 lb-ft

Starting current (A)78.6 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	74	96	98	98	98	97	96	97
Efficiency %	0	71.2	83.7	86.2	85.4	82.4	76.9	83.6
Speed rpm	1499	1488.2	1476.5	1463.5	1448	1428.2	1398.5	1436
Line amps A	1.66	3.64	6.09	8.84	11.9	15.6	20.3	14.1
Power W	270	773	1317	1917	2576	3345	4284	3037
Torque lb-ft	0	2.603	5.254	7.949	10.7	13.58	16.58	12.4

Documents & CAD

For this product 3

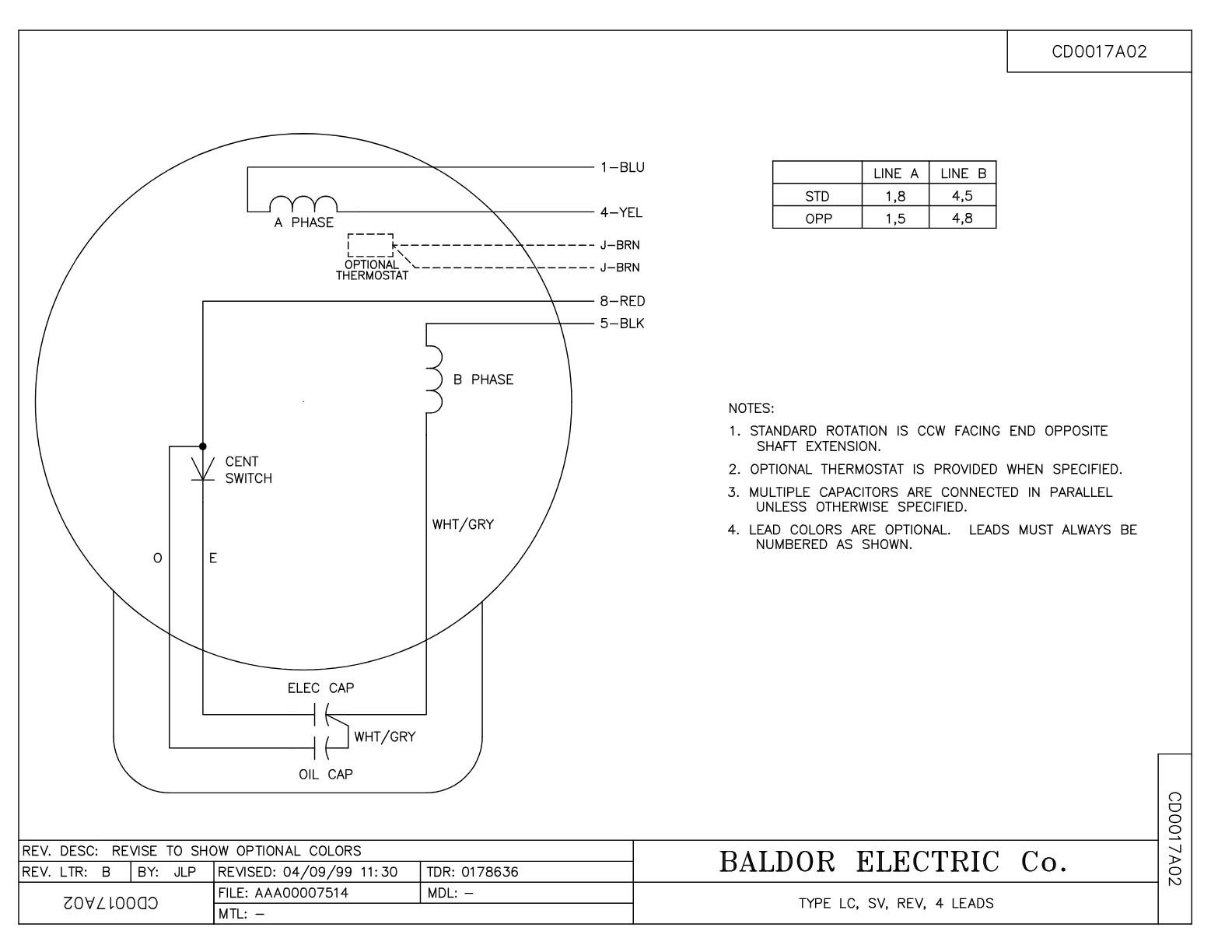

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·600 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·108 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 9

The genuine spare parts used for servicing and repairing the Baldor L3609T-50 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3050F09SP	CAPACITOR 50 MFD 370 VAC	1 pcs	69 motors
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
36EP3104A01	FREP MACH W/GRSR, RAISED FH PADS	1 pcs	141 motors
36EP3100A01SP	PUEP ASSEMBLY FOR ROUTING PURPOSES	1 pcs	74 motors
37GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK LEXID	1 pcs	329 motors
36CB3800SP	CAPACITOR COVER, CAST	1 pcs	16 motors
36FN3000A01SP	EXFN, PLASTIC, 7.00 OD, .912 ID	1 pcs	167 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 2

Genuine accessories that can be used with the Baldor L3609T-50 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
