Baldor L3514M

Baldor-Reliance L3514M; 1.5 HP, 1725 rpm, single-phase 115/208/230 V 60 Hz, 56H frame, TEFC enclosed general purpose single-phase AC electric motor.

BaldorMFR # L3514MSKU # YLSGJJYFWLMKOKM

EnclosureTEFC

Frame56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance L3514M; 1.5 HP, 1725 rpm, single-phase 115/208/230 V 60 Hz, 56H frame, TEFC enclosed general purpose single-phase AC electric motor.

Baldor L3514M

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 208.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage12.200 A @ 115.0 V · 5.500 A @ 230.0 V · 6.200 A @ 208.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load80.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)5.5 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeH

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size7 @ 18 AWG

Motor type3532LC

Mounting arrangementF1

Number of poles4

Overall length13.81 IN

Power factor90

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingDo Not Use

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568100547

Nameplate

Catalog numberL3514M

Specification number35H611G398

Horsepower (HP)1.5

Voltage (V)115/208-230

Current (A)12.2/6.2-5.5

Speed (rpm)1725

Frame size56H

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)H

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)80

Power factor90

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)0.517 Ω / 1.32 Ohms B Ph

Temperature rise at rated load (°C)67° C

Start configurationDOL

Breakdown torque9.9 lb-ft

Pull-up torque8.06 lb-ft

Locked-rotor torque12.98 lb-ft

Starting current (A)43.97 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	72	95	98	98	98	97	96
Efficiency %	0	68.1	80.4	82.5	81.1	76.9	69.8
Speed rpm	1798	1782	1765	1746	1723	1690	1641
Line amps A	0.877	1.83	3.08	4.5	6.1	8.12	10.79
Power W	146	401	692	1016	1376	1816	2392
Torque lb-ft	0	1.08	2.22	3.38	4.56	5.82	7.17

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·106 KB·English

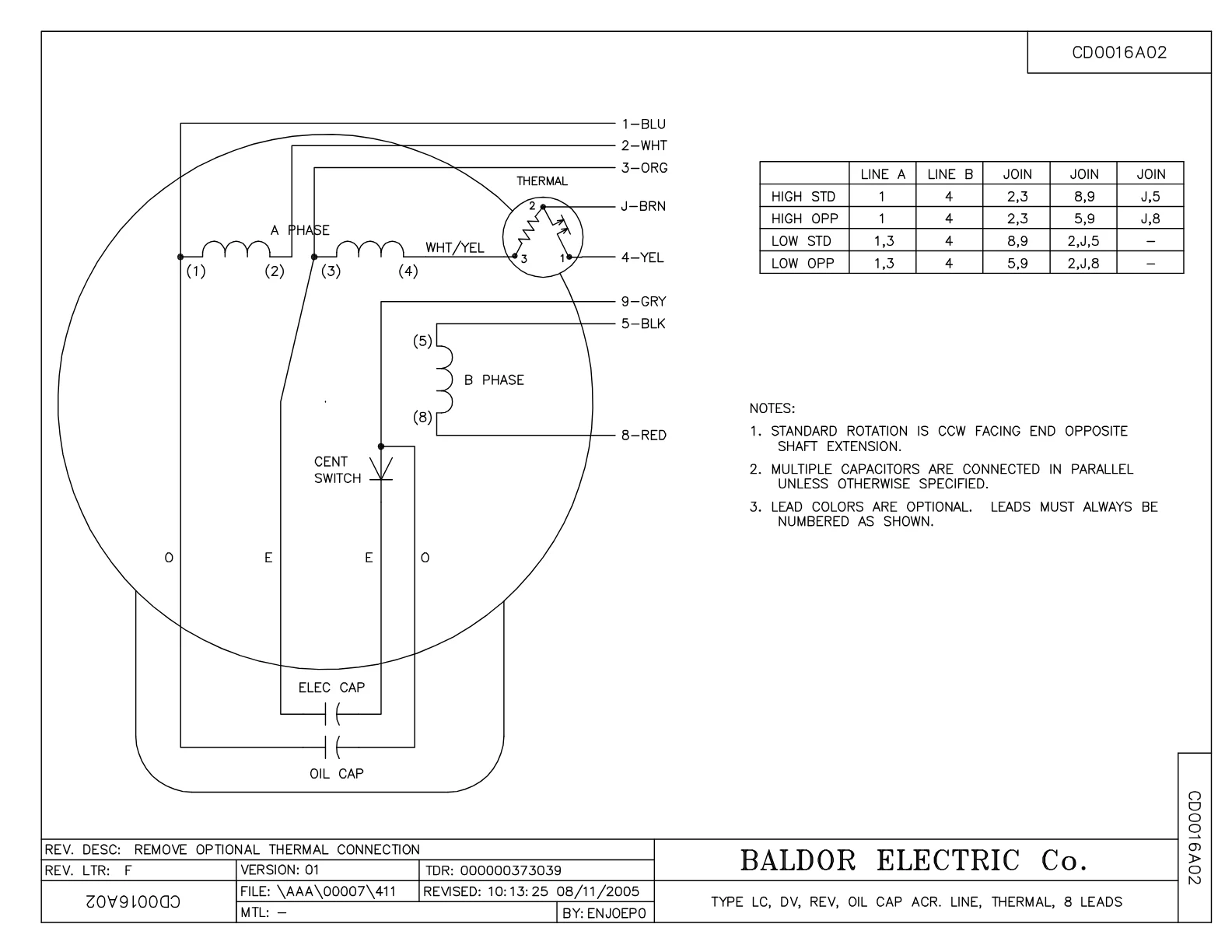

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·594 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor L3514M motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1540A06SP	ELEC CAP, 540-648 MFD, 125V, 2.06D X 4.	1 pcs	53 motors
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
35CB4801C01SP	COVER, MANUAL THERMAL PROT, PLATED	1 pcs	1 motors
RM1014A01SP	BUTYL RUB.THRM COV. (MENA)	1 pcs	37 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors

Accessories 2

Genuine accessories that can be used with the Baldor L3514M motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
