Baldor L3513M

Baldor-Reliance L3513M; 1.5 HP, 3450 rpm, single-phase 115/230 V 60 Hz, 56/56H frame, TEFC enclosed general purpose single-phase AC electric motor.

BaldorMFR # L3513MSKU # YLSJRKVVQIWJC1

EnclosureTEFC

Frame56/56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance L3513M; 1.5 HP, 3450 rpm, single-phase 115/230 V 60 Hz, 56/56H frame, TEFC enclosed general purpose single-phase AC electric motor.

Baldor L3513M

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56/56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage15.000 A @ 115.0 V · 7.500 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load70.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)7.5 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeH

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size4 @ 16 AWG, A&J

Motor type3528L

Mounting arrangementF1

Number of poles2

Overall length12.91 IN

Power factor82

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingDo Not Use

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568100493

Nameplate

Catalog numberL3513M

Specification number35J383-600

Horsepower (HP)1.5

Voltage (V)115/230

Current (A)15/7.5

Speed (rpm)3450

Frame size56/56H

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)H

NEMA design letterL

Insulation classB

NEMA nominal efficiency (%)70

Power factor82

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)1.26 Ω / 1.23 Ohms B Ph

Temperature rise at rated load (°C)70° C

Start configurationDOL

Breakdown torque5.6 lb-ft

Pull-up torque5.2 lb-ft

Locked-rotor torque5.5 lb-ft

Starting current (A)42 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	22	47	64	73	80	84	86
Efficiency %	0	51.9	65.3	68.4	71.2	70.6	68.4
Speed rpm	3591	3567	3541	3514	3475	3439	3397
Line amps A	4.5	5	5.8	6.9	8.6	10.2	12.1
Power W	228	561	886	1259	1594	1989	2434
Torque lb-ft	0	0.575	1.15	1.725	2.3	2.875	3.45

Documents & CAD

For this product 3

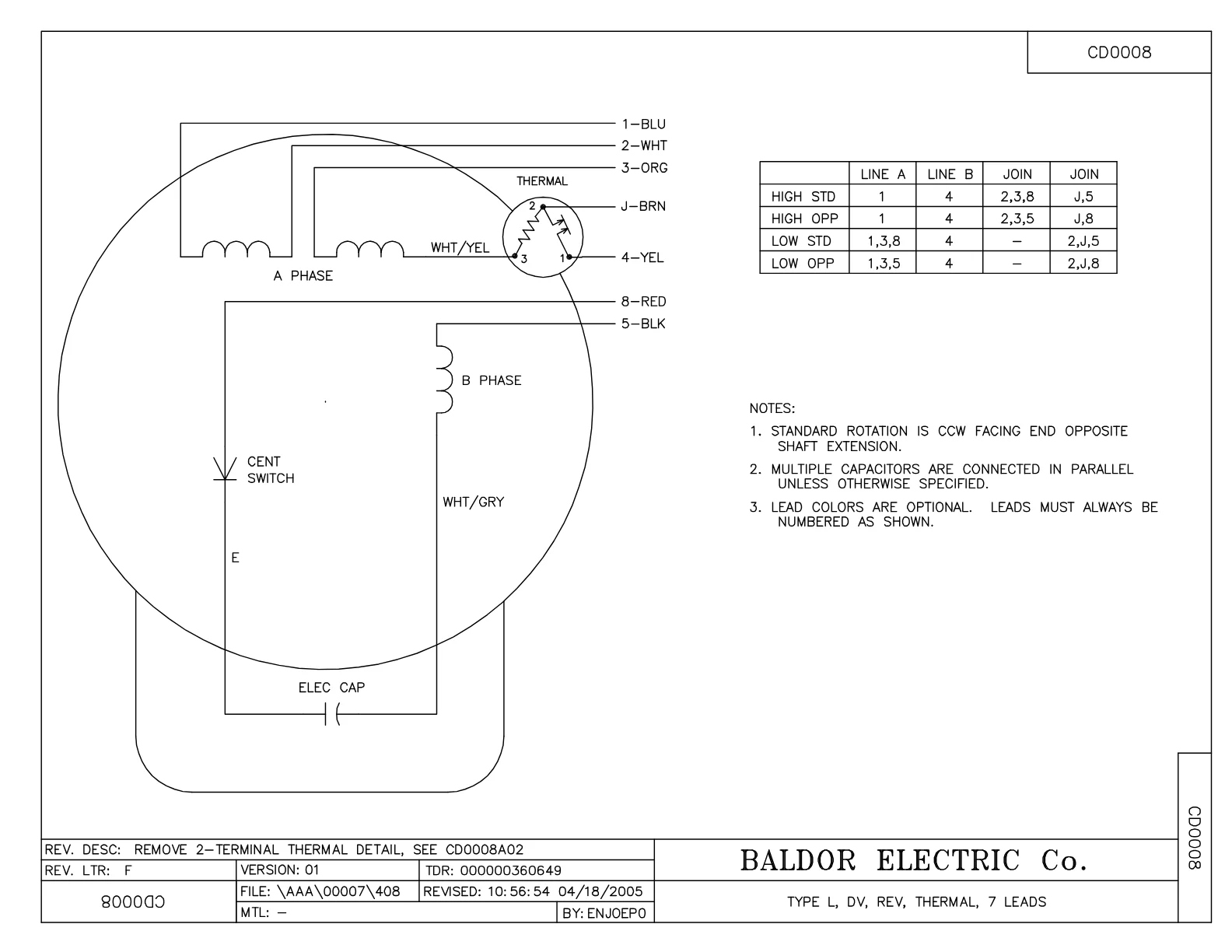

Wiring DiagramWiring DiagramPDF·34 KB·English

DatasheetDatasheetPDF·596 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·110 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor L3513M motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1645A06SP	ELEC CAP, 645-774 MFD, 125V, 2.06D X 4.	1 pcs	56 motors
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	1 pcs	103 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 2

Genuine accessories that can be used with the Baldor L3513M motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
