Baldor L3509M

General Purpose Motor - 1 hp, 3600 rpm, 1 ph, 115/230 V, 56/56H Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # L3509MSKU # YLSQD8VG43ADXYJ

EnclosureTEFC

Frame56/56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 1 hp, 3600 rpm, 1 ph, 115/230 V, 56/56H Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

Features and Benefits

Heavy-gauge steel frames and a heavy-duty base seam welded to the frame
Ball bearings
“Snap Action” starting switch and gasketed conduit box and capacitor cover
TEFC, foot mount
Applications: Compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools and others

Baldor L3509M

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56/56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage12.000 A @ 115.0 V · 6.000 A @ 230.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load66.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)6.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size4 @ 16 AWG, A&J

Motor type3524L

Mounting arrangementF1

Number of poles2

Overall length12.91 IN

Power factor81

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingDo Not Use

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568100387

Motor Supply Voltage115/230 V

Base RPM3450 rpm

Mounting TypeFoot

Warranty2 Year Warranty

Type Of BearingBall

IP Rating44

Weight40 lbs

ApplicationsCompressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools and others.

Additional DetailsHeavy gauge steel frames and a heavy duty base seam welded to the frame, ball bearings, a “Snap Action” starting switch and gasketed conduit box and capacitor cover.

Harmonization Code8501.40.6040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberL3509M

Specification number35J383-480

Horsepower (HP)1

Voltage (V)115/230

Current (A)12/6

Speed (rpm)3450

Frame size56/56H

Frequency (Hz)60

Phase1

Service factor1.25

Code letter (locked rotor kVA)K

NEMA design letterN

Insulation classB

NEMA nominal efficiency (%)66

Power factor81

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)2.37 Ω / 1.75 Ohms B Ph

Temperature rise at rated load (°C)61° C

Temperature rise at service factor load (°C)78° C

Start configurationDOL

Breakdown torque3.7 lb-ft

Pull-up torque3.3 lb-ft

Locked-rotor torque4.5 lb-ft

Starting current (A)38 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	31	52	67	77	83	86	88	86
Efficiency %	0	44.7	59.7	66.2	68.9	69.4	68.5	69.4
Speed rpm	3585	3563	3538	3511	3480	3444	3400	3444
Line amps A	3.15	3.5	4.05	4.8	5.7	6.8	8.1	6.8
Power W	225	425	631	847	1076	1322	1586	0
Torque lb-ft	0	0.375	0.75	1.125	1.5	1.875	2.25	0

Documents & CAD

For this product 3

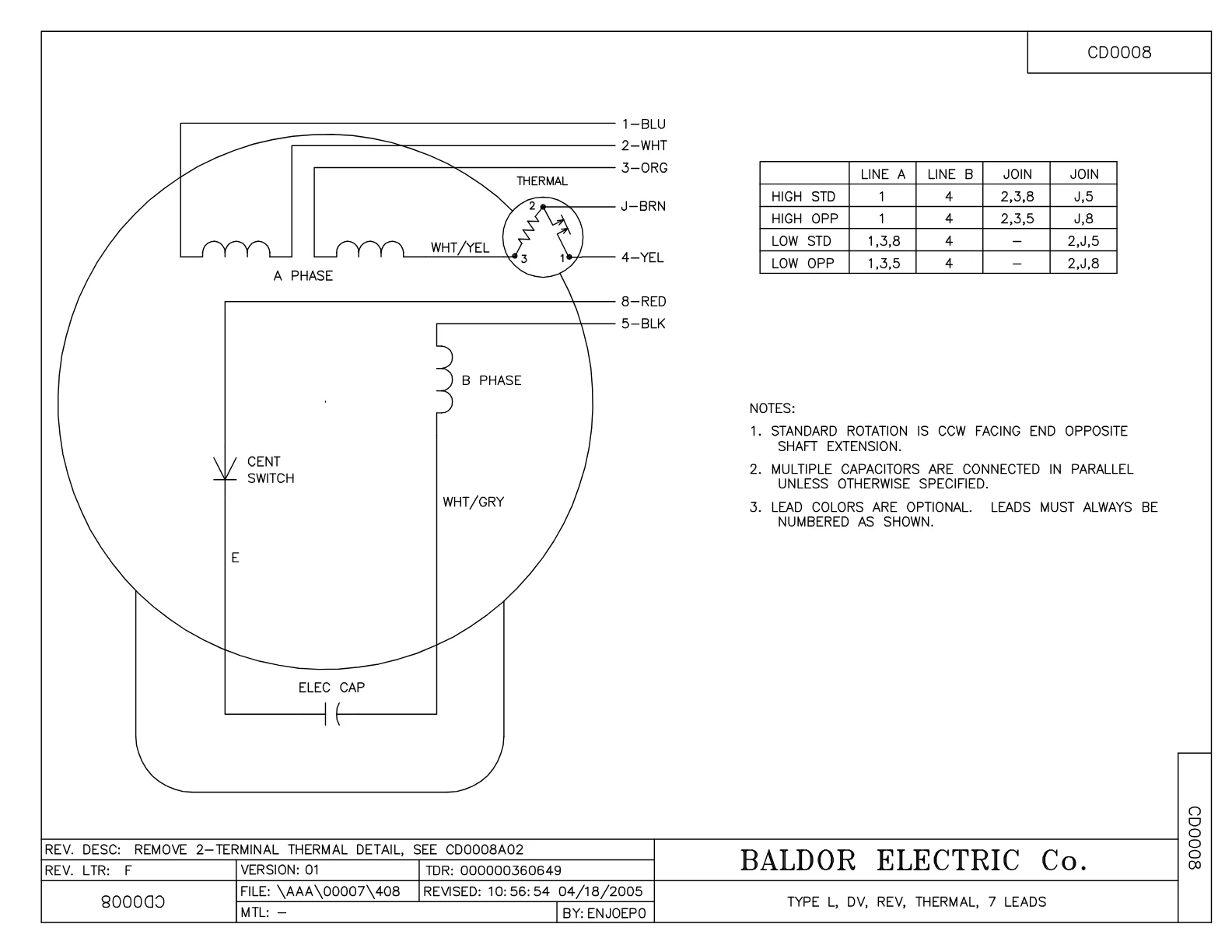

Wiring DiagramWiring DiagramPDF·34 KB·English

DatasheetDatasheetPDF·596 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·110 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor L3509M motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1645A06SP	ELEC CAP, 645-774 MFD, 125V, 2.06D X 4.	1 pcs	56 motors
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	1 pcs	103 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
