Baldor L3506

Baldor-Reliance L3506; 0.75 HP, 3450 rpm, single-phase 115/230 V 60 Hz, 56 frame, TEFC enclosed general purpose single-phase AC electric motor.

BaldorMFR # L3506SKU # YLSXL4BRHCH1VWG

EnclosureTEFC

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance L3506; 0.75 HP, 3450 rpm, single-phase 115/230 V 60 Hz, 56 frame, TEFC enclosed general purpose single-phase AC electric motor.

Baldor L3506

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.750 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage4.800 A @ 230.0 V · 9.600 A @ 115.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load66.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)4.8 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

IP ratingNONE

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3424L

Mounting arrangementF1

Number of poles2

Overall length11.97 IN

Power factor74

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.25

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568100301

Nameplate

Catalog numberL3506

Specification number34K42-3405

Horsepower (HP).75

Voltage (V)115/230

Current (A)9.6/4.8

Speed (rpm)3450

Frame size56

Frequency (Hz)60

Phase1

Service factor1.25

Code letter (locked rotor kVA)K

NEMA design letterN

Insulation classB

NEMA nominal efficiency (%)66

Power factor74

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1256L

Performance

General characteristics· 230 V, 60 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)2.5 Ω / 2.5 Ohms B Ph

Temperature rise at rated load (°C)78° C

Temperature rise at service factor load (°C)92° C

Start configurationDOL

Breakdown torque3.5 lb-ft

Pull-up torque2.7 lb-ft

Locked-rotor torque3.7 lb-ft

Starting current (A)28 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	20	36	51	62	70	76	81	0
Efficiency %	0	47.2	61.1	66.5	68.7	68.7	66.7	0
Speed rpm	3595	3561	3534	3500	3464	3421	3365	0
Line amps A	3.5	3.6	3.9	4.4	5	5.7	6.7	5.7
Power W	161	308	472	645	824	1017	1236	0
Torque lb-ft	0	0.2875	0.575	0.8625	1.15	1.4375	1.725	0

Documents & CAD

For this product 4

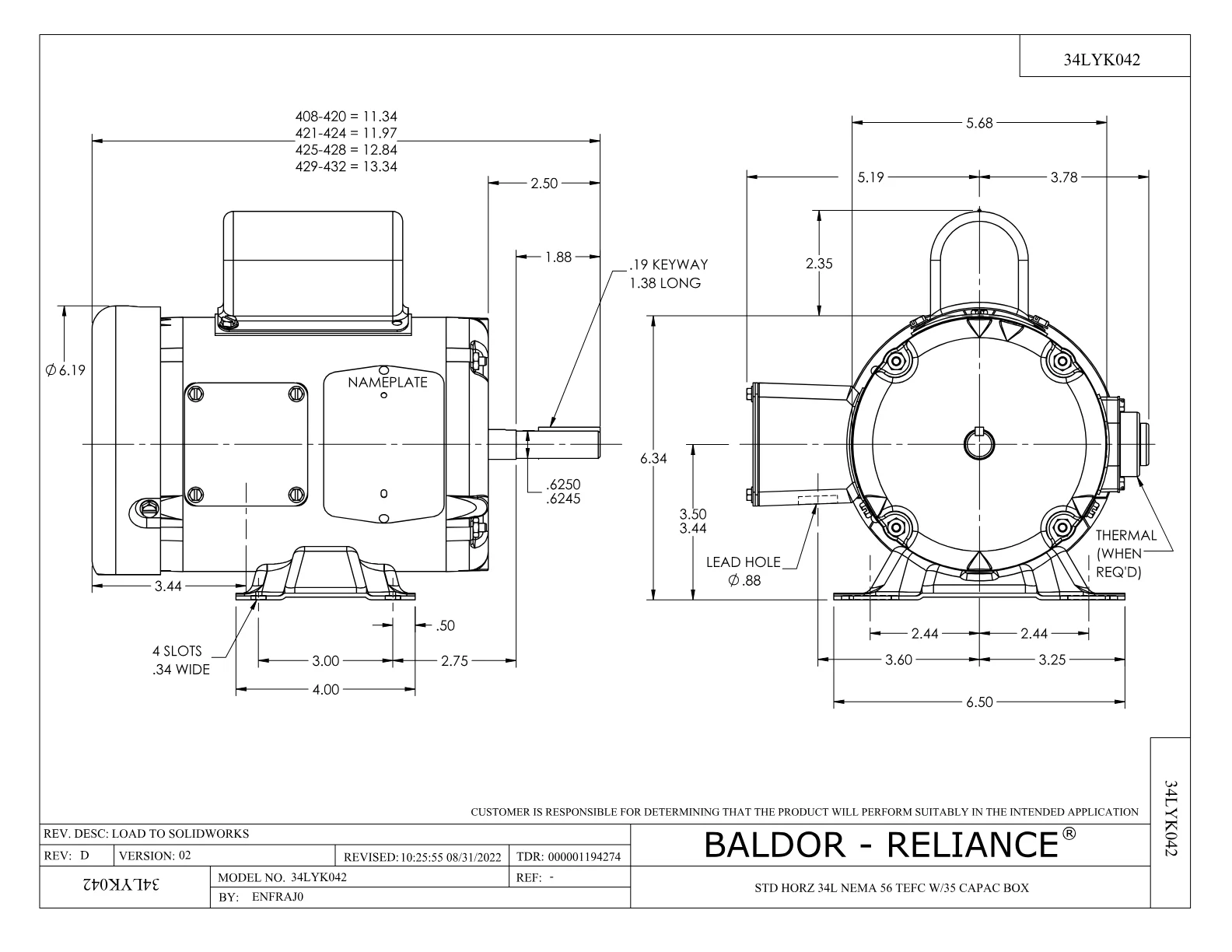

Dimension DrawingDimension SheetPDF·98 KB·English

Wiring DiagramWiring DiagramPDF·39 KB·English

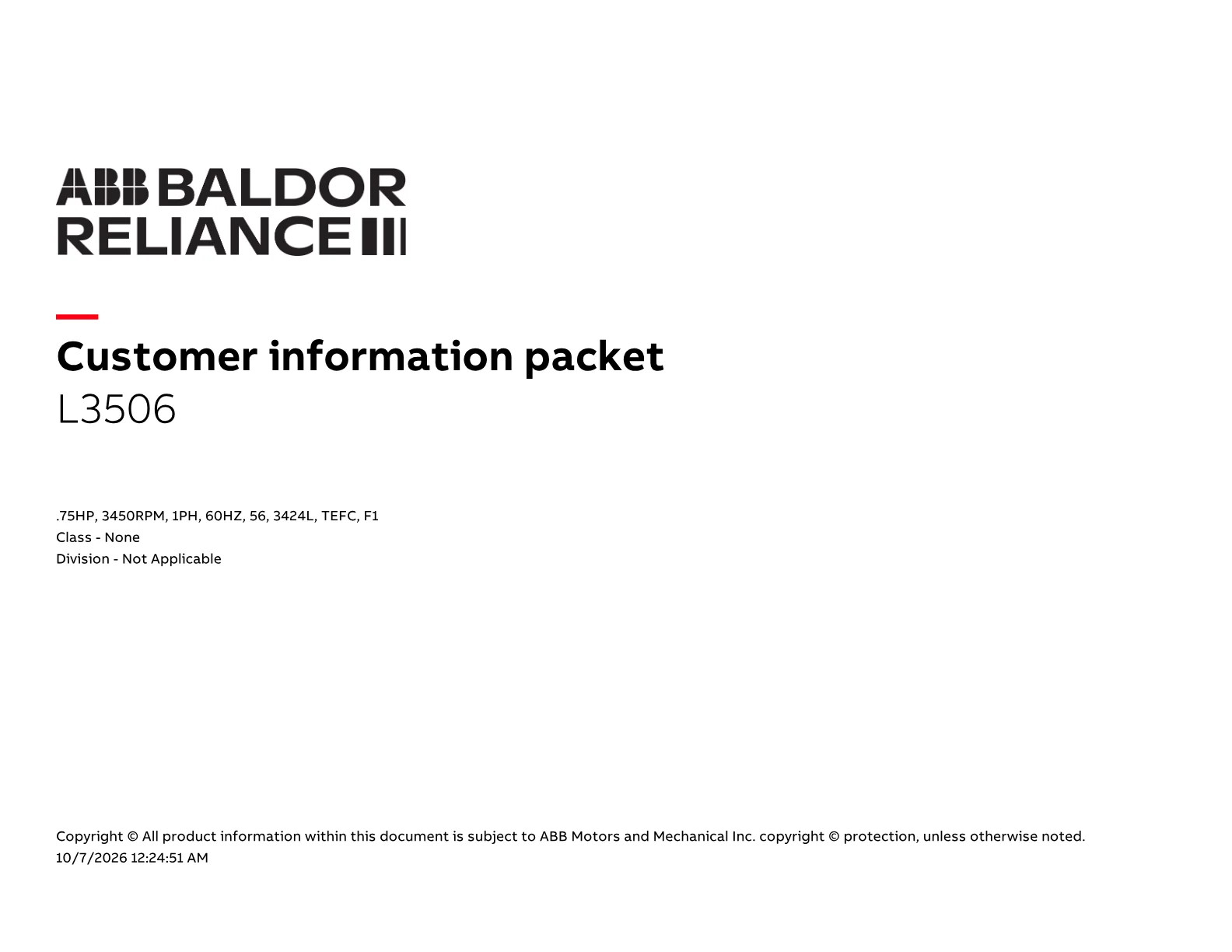

DatasheetDatasheetPDF·587 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor L3506 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1400A03SP	ELEC CAP, 400-480 MFD, 125V, 1.81D X 3.	1 pcs	37 motors
34EP3102A01SP	FR ENDPLATE, MACH	1 pcs	179 motors
34EP3102A02SP	FR/PU ENDPLATE, MACH	1 pcs	112 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
34FH4002A01SP	IEC FH NO GREASER PRIMED	1 pcs	210 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
