Baldor L3400

General Purpose Motor - 1/6 hp, 1800 rpm, 1 ph, 115/230 V, 48 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # L3400SKU # YLS30Y1VZHSVGQ2

EnclosureTEFC

Frame48

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.170 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 1/6 hp, 1800 rpm, 1 ph, 115/230 V, 48 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Foot Mount, Continuous Duty

Features and Benefits

Heavy-gauge steel frames and a heavy-duty base seam welded to the frame
Ball bearings
“Snap Action” starting switch and gasketed conduit box and capacitor cover
TEFC, foot mount
Applications: Compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools and others

Baldor L3400

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame48

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.170 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.900 A @ 230.0 V · 2.300 A @ 208.0 V · 3.800 A @ 115.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load49.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.9 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

IP ratingNONE

KVA codeM

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3408L

Mounting arrangementF1

Number of poles4

Overall length10.72 IN

Power factor57

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.35

Shaft diameter0.500 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568100066

Motor Supply Voltage115/230 V

Base RPM1725 rpm

Mounting TypeFoot

Warranty2 Year Warranty

Type Of BearingBall

Weight18 lbs

ApplicationsCompressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools and others.

Additional DetailsHeavy gauge steel frames and a heavy duty base seam welded to the frame, ball bearings, a “Snap Action” starting switch and gasketed conduit box and capacitor cover.

Harmonization Code8501.40.4040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberL3400

Specification number34C51W20

Horsepower (HP).17

Voltage (V)115/230

Current (A)3.8/1.9

Speed (rpm)1725

Frame size48

Frequency (Hz)60

Phase1

Service factor1.35

Code letter (locked rotor kVA)M

NEMA design letterN

Insulation classB

NEMA nominal efficiency (%)49

Power factor57

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1256L

Performance

General characteristics· 230 V, 60 Hz, 0.17 hp

Line-to-line resistance at 25 °C (ohms)13.7 Ω / 10.8 Ohms B Ph

Temperature rise at rated load (°C)50° C

Temperature rise at service factor load (°C)61° C

Start configurationDOL

Breakdown torque1.38 lb-ft

Pull-up torque1.2 lb-ft

Locked-rotor torque2.13 lb-ft

Starting current (A)7.8 A

Line-to-line resistance at 25 °C (ohms)3.23 Ω / 10.5 Ohms B Ph

Temperature rise at rated load (°C)50° C

Temperature rise at service factor load (°C)58° C

Start configurationDOL

Breakdown torque1.38 lb-ft

Pull-up torque1.2 lb-ft

Locked-rotor torque2.35 lb-ft

Starting current (A)16.2 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	25	32	41	49	57	63	69	67
Efficiency %	0	21	35	45	49	52	53	53
Speed rpm	1795	1775	1760	1730	1710	1685	1650	1665
Line amps A	1.75	1.75	1.8	1.9	2	2.1	2.4	2.2
Power W	101	150	179	205	248	288	332	0
Torque lb-ft	0	0.125	0.25	0.375	0.5	0.625	0.75	0

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·39 KB·English

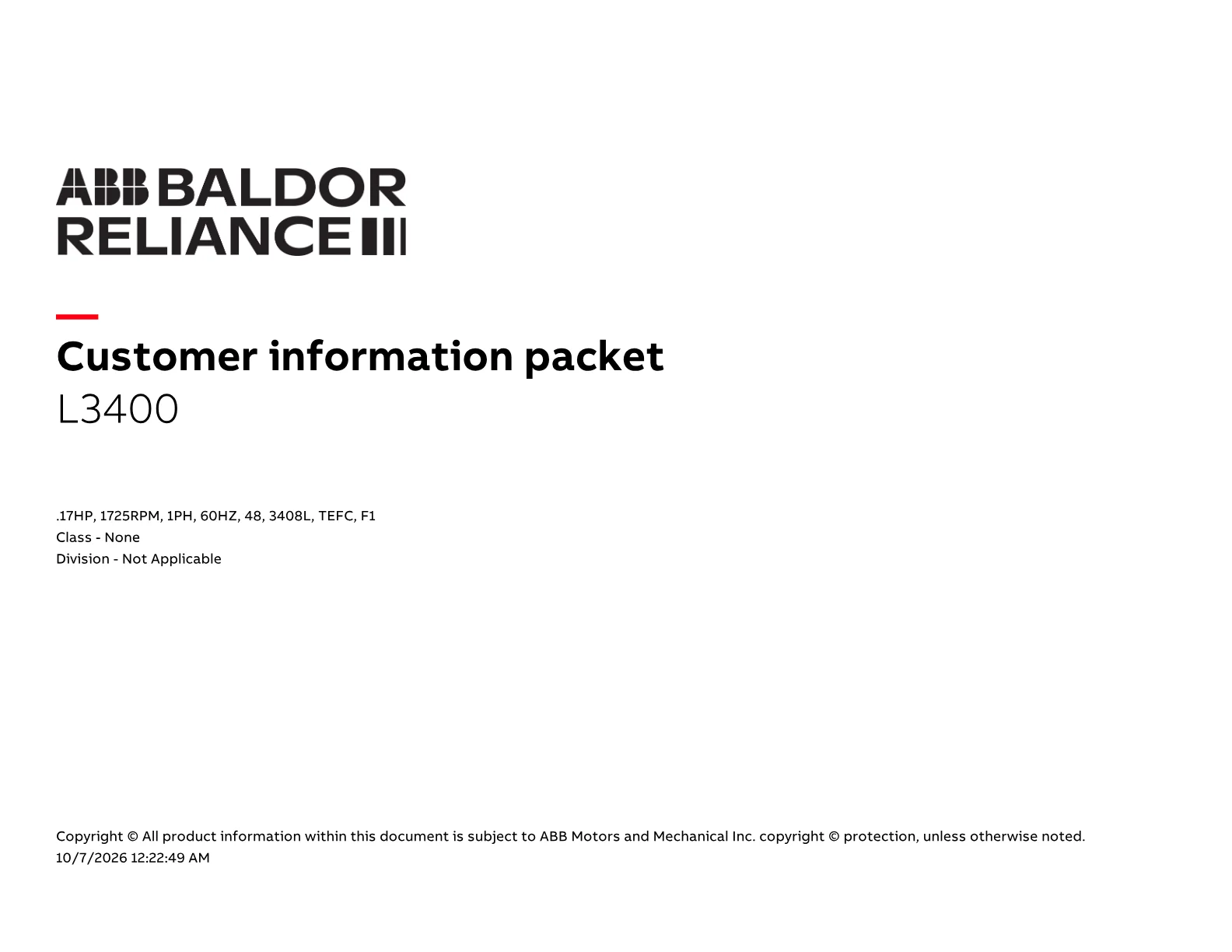

DatasheetDatasheetPDF·665 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·96 KB·English

CAD Files 8

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor L3400 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
34EP3102A01SP	FR ENDPLATE, MACH	1 pcs	179 motors
34CB4800SP	CAPACITOR COVER, STAMPED PRIMED	1 pcs	79 motors
34EP3102A02SP	FR/PU ENDPLATE, MACH	1 pcs	112 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
34FH4002A01SP	IEC FH NO GREASER PRIMED	1 pcs	210 motors
EC1130A02SP	ELEC CAP, 130-156 MFD, 125V, 1.48D X 3.3	1 pcs	15 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors

Accessories 1

Genuine accessories that can be used with the Baldor L3400 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
