Baldor L3355

General Purpose Motor - 1/6 hp, 1800 rpm, 1 ph, 115/230 V, 42 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # L3355SKU # YLS5V48LHHAKQMN

EnclosureTEFC

Frame42

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.170 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 1/6 hp, 1800 rpm, 1 ph, 115/230 V, 42 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Foot Mount, Continuous Duty

Features and Benefits

Heavy-gauge steel frames and a heavy-duty base seam welded to the frame
Ball bearings
“Snap Action” starting switch and gasketed conduit box and capacitor cover
TEFC, foot mount
Applications: Compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools and others

Baldor L3355

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame42

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.170 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Agency approvalsCURUS · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.800 A @ 230.0 V · 2.000 A @ 208.0 V · 3.600 A @ 115.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load51.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

Feedback signalNONE

High voltage full load current (A)1.8 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3316L

Mounting arrangementF1

Number of poles4

Overall length9.56 IN

Power factor62

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.35

Shaft diameter0.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568100059

Motor Supply Voltage115/230 V

Base RPM1725 rpm

Mounting TypeFoot

Warranty2 Year Warranty

Type Of BearingBall

IP Rating44

Weight18 lbs

ApplicationsCompressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools and others.

Additional DetailsHeavy gauge steel frames and a heavy duty base seam welded to the frame, ball bearings, a “Snap Action” starting switch and gasketed conduit box and capacitor cover.

Harmonization Code8501.40.4040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Documents & CAD

For this product 2

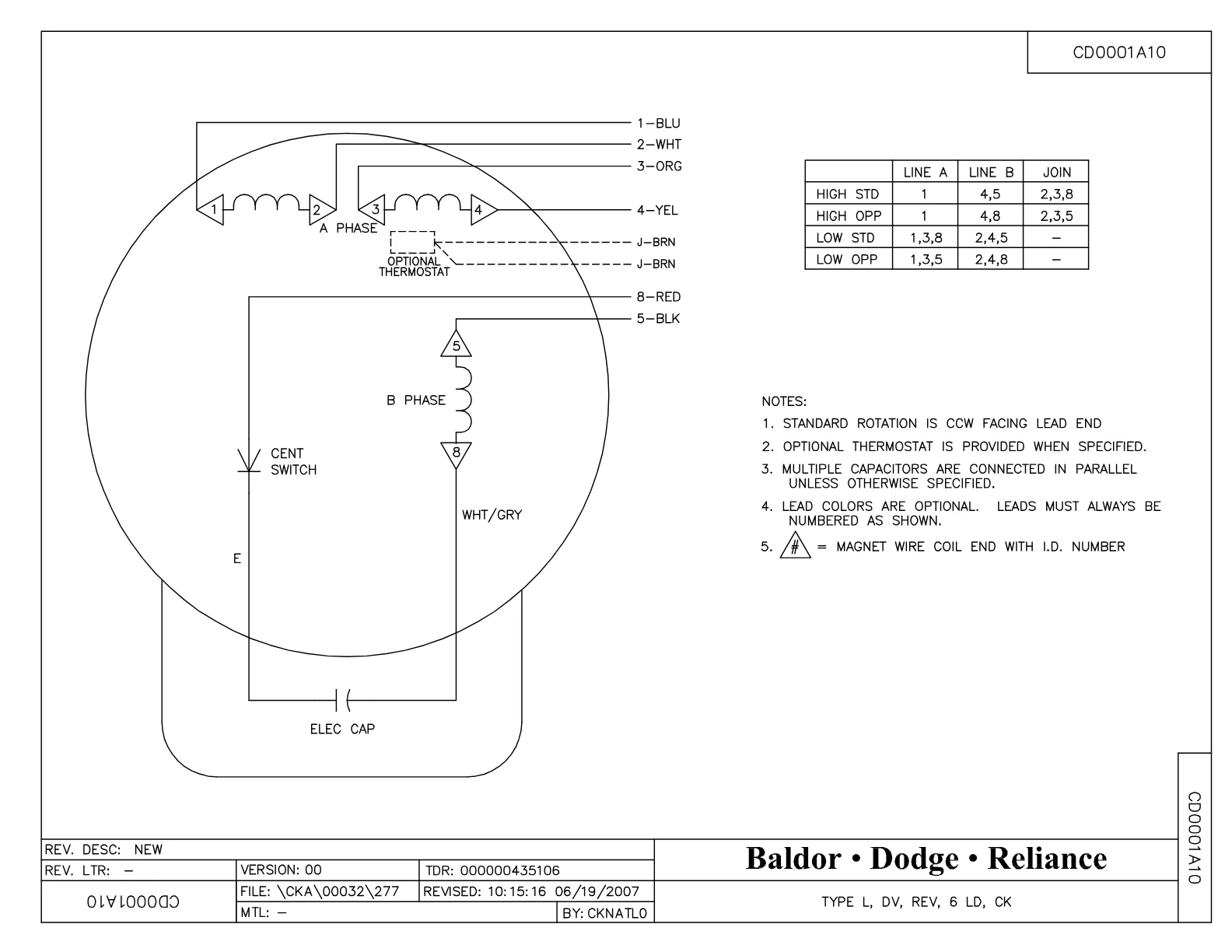

Wiring DiagramWiring DiagramPDF·40 KB·English

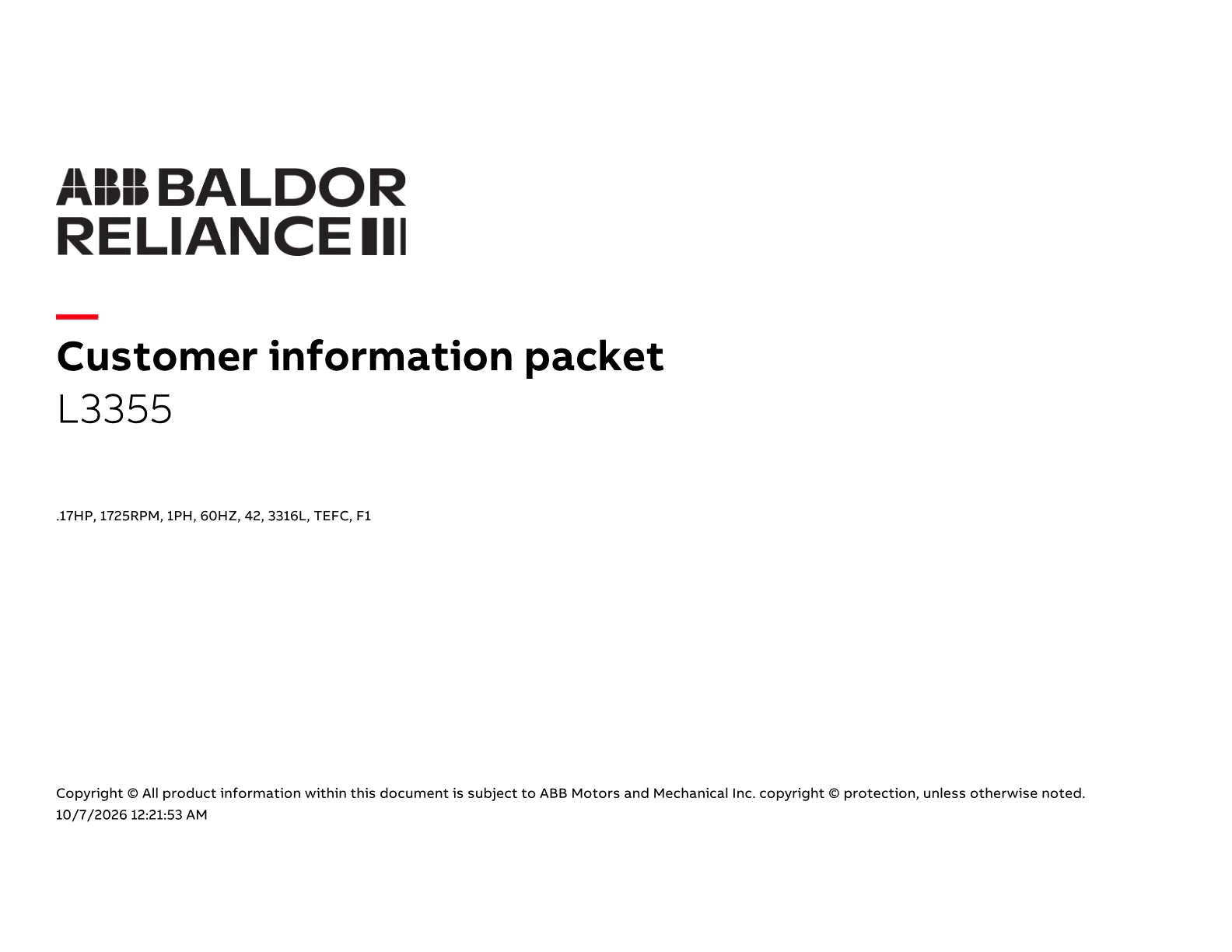

DatasheetDatasheetPDF·520 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·118 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor L3355 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1130A02SP	ELEC CAP, 130-156 MFD, 125V, 1.48D X 3.3	1 pcs	15 motors
34CB4800SP	CAPACITOR COVER, STAMPED PRIMED	1 pcs	79 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
