How can I get a price quote for Baldor L1512T?

You can request a fast quote for Baldor L1512T from Yılsa Engineering. Reference part number YLSOKDABY8ETHSY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor L1512T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor L1512T genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor L1512T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor L1512T

Baldor L1512T is a general purpose single-phase AC electric motor rated 10 HP, 1725 rpm, 1 phase, 60 Hz, 230 V, with 215T frame and OPSB enclosure.

BaldorMFR # L1512TSKU # YLSOKDABY8ETHSY

EnclosureOPSB

Frame215T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency10.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor L1512T is a general purpose single-phase AC electric motor rated 10 HP, 1725 rpm, 1 phase, 60 Hz, 230 V, with 215T frame and OPSB enclosure.

Baldor L1512T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame215T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency10.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage39.000 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)39.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeE

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitCap Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 10 AWG, A PH

Motor type3737LC

Mounting arrangementF1

Number of poles4

Overall length17.45 IN

Power factor97

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.00

Shaft diameter1.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568101728

Nameplate

Catalog numberL1512T

Specification number37L969T923G1

Horsepower (HP)10

Voltage (V)230

Current (A)39

Speed (rpm)1725

Frame size215T

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)E

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)85.5

Power factor97

Rating40C AMB-CONT

Drive end bearing6307

Opposite drive end bearing6206

EnclosureOPSB

Nameplate numberNP1256L

Performance

General characteristics· 230 V, 60 Hz, 10 hp

Line-to-line resistance at 25 °C (ohms)0.242 Ω / 0.538 Ohms B Ph

Temperature rise at rated load (°C)73° C

Start configurationDOL

Breakdown torque76.1 lb-ft

Pull-up torque51.8 lb-ft

Locked-rotor torque78.4 lb-ft

Starting current (A)211 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%
Power factor %	53	94	97	98	97	96
Efficiency %	0	76.1	86	87.5	85.7	81.8
Speed rpm	1799	1785	1770	1751	1727	1699
Line amps A	6.2	11.3	19.2	28.3	38.8	50.9
Power W	751	2448	4274	6360	8675	11293
Torque lb-ft	0	7.34	14.6	22.4	30.3	38.3

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·119 KB·English

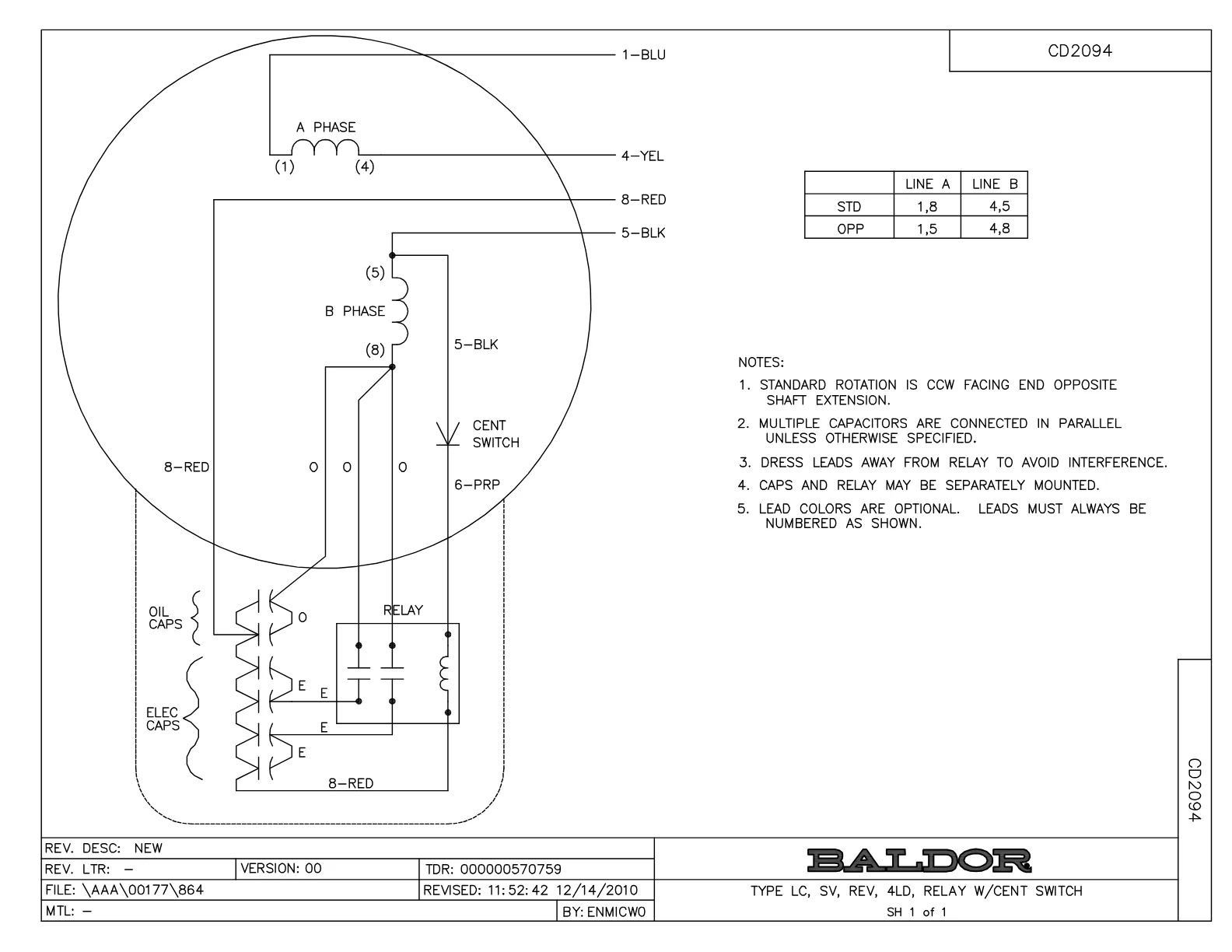

Wiring DiagramWiring DiagramPDF·54 KB·English

DatasheetDatasheetPDF·624 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor L1512T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3050F09SP	CAPACITOR 50 MFD 370 VAC	2 pcs	69 motors
RE5029	MARS 91423 DOUBLE POLE 230-240V CONTACTO	1 pcs	8 motors
EC1216C06SP	ELEC CAP, 216-259 MFD, 250V, 2.06D X 4.	2 pcs	45 motors
EC1189C06SP	ELEC CAP, 189-227 MFD, 250V, 2.06D X 4.	2 pcs	7 motors
37EP3203A00	MASTER,ODE,206 BRG,GREASER	1 pcs	86 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors

Accessories 1

Genuine accessories that can be used with the Baldor L1512T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
