Baldor L1430T

Baldor L1430T is a general purpose single-phase AC electric motor rated 5 HP, 1725 rpm, 1 phase, 60 Hz, 230 V, with 184T frame and ODTF enclosure.

BaldorMFR # L1430TSKU # YLSRFPA4J3Z1LDO

EnclosureODTF

Frame184T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor L1430T is a general purpose single-phase AC electric motor rated 5 HP, 1725 rpm, 1 phase, 60 Hz, 230 V, with 184T frame and ODTF enclosure.

Baldor L1430T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODTF

Frame184T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency5.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage20.600 A @ 230.0 V

Design codeL

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load84.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)20.6 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeH

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 10 AWG, A PH

Motor type3634LC

Mounting arrangementF1

Number of poles4

Overall length16.53 IN

Power factor94

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568196595

Nameplate

Catalog numberL1430T

Specification number36M926T077G1

Horsepower (HP)5

Voltage (V)230

Current (A)20.6

Speed (rpm)1725

Frame size184T

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)H

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)84

Power factor94

Rating40C AMB-CONT

Drive end bearing6206

Opposite drive end bearing6205

EnclosureODTF

Nameplate numberNP1256L

Performance

General characteristics· 230 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)0.4981 Ω / 1.6049 Ohms B Ph

Temperature rise at rated load (°C)60° C

Temperature rise at service factor load (°C)74° C

Start configurationDOL

Breakdown torque40.5 lb-ft

Pull-up torque30.5 lb-ft

Locked-rotor torque36.5 lb-ft

Starting current (A)134.2 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	32	70	86	91	94	94	94	94
Efficiency %	0	66	79.7	83.8	84.4	82.7	79	83.4
Speed rpm	1799	1785	1773	1759	1741	1721	1692	1729
Line amps A	7.49	8.87	11.94	15.93	20.56	25.99	32.81	23.82
Power W	551	1441	2370	3354	4395	5542	6845	0
Torque lb-ft	0	3.75	7.5	11.25	15	18.75	22.5	0

Documents & CAD

For this product 4

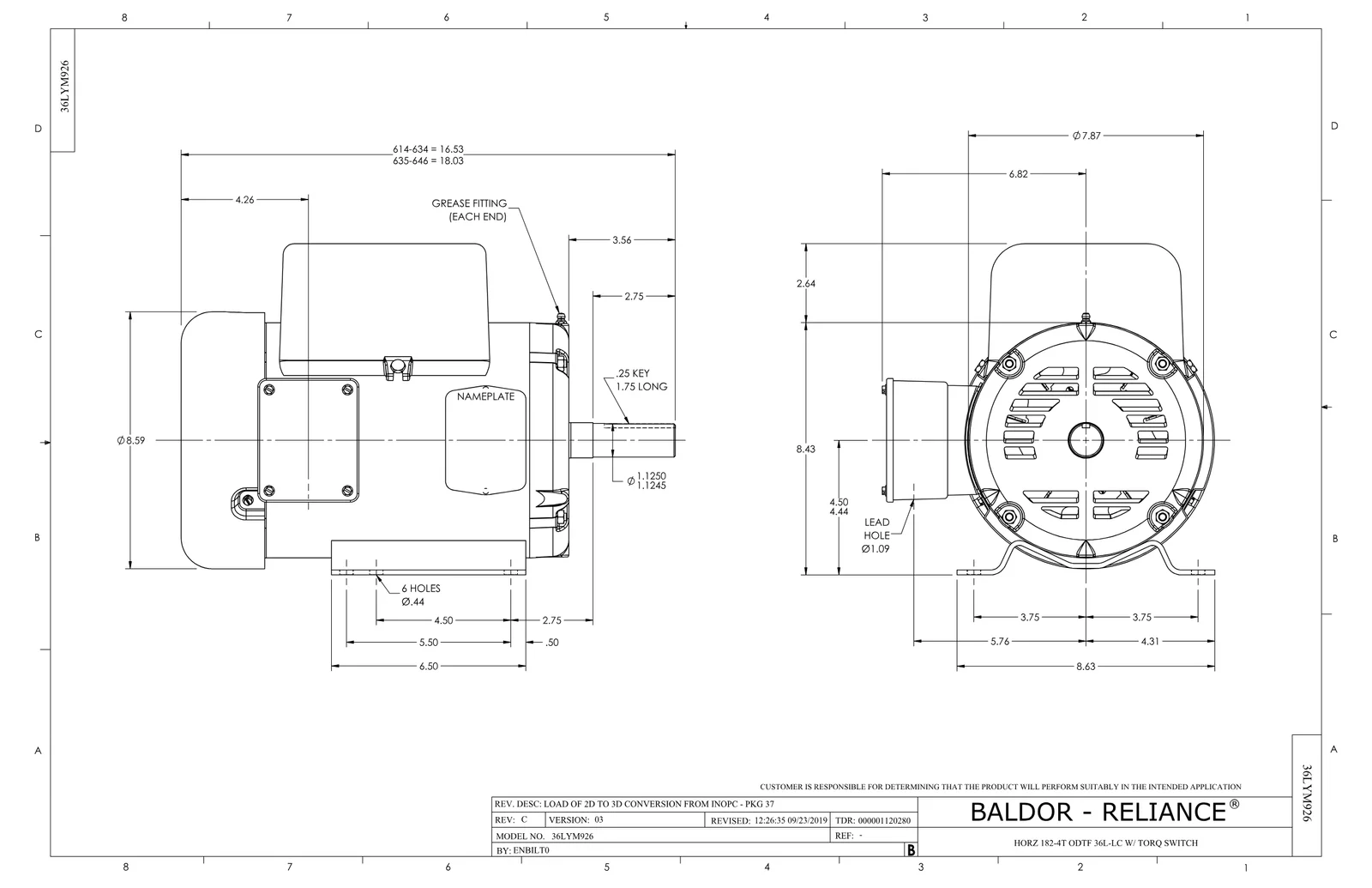

Dimension DrawingDimension SheetPDF·108 KB·English

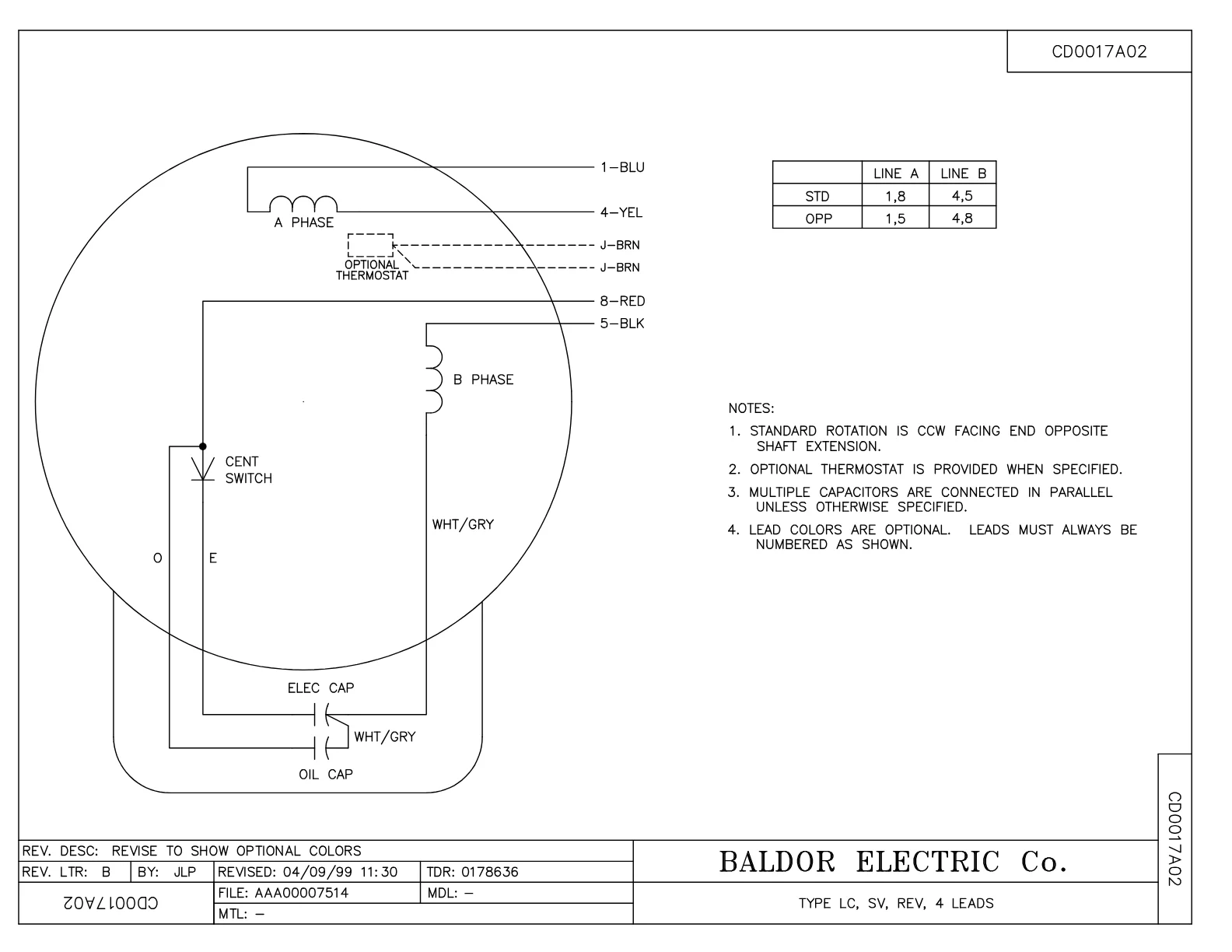

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·596 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor L1430T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36FN3000A01SP	EXFN, PLASTIC, 7.00 OD, .912 ID	1 pcs	167 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 2

Genuine accessories that can be used with the Baldor L1430T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
