Baldor L1318-50

Baldor-Reliance L1318-50 is a general purpose single-phase AC motor rated 0.75 kW, 1460 rpm, 110/220 V 50 Hz, with 56 frame and open enclosure.

BaldorMFR # L1318-50SKU # YLSKXBQDOCADDWP

EnclosureOPEN

Frame56

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.750 KW @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance L1318-50 is a general purpose single-phase AC motor rated 0.75 kW, 1460 rpm, 110/220 V 50 Hz, with 56 frame and open enclosure.

Baldor L1318-50

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame56

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.750 KW @ 50 HZ

Phase1

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency220.0 V @ 50 HZ · 110.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · UKCA · WEEE · CE · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage4.600 A @ 220.0 V · 9.200 A @ 110.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load79.6 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)4.6 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor finishCLEAR COAT

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3532LC

Mounting arrangementF1

Number of poles4

Overall length12.94 IN

Power factor93

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1460 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568119877

Nameplate

Catalog numberL1318-50

Specification number35M497G769

Horsepower (HP)1/.75KW

Voltage (V)110/220

Current (A)9.2/4.6

Speed (1/min)1460

Frame size56

Frequency (Hz)50

Phase1

Service factor1.00

Code letter (locked rotor kVA)K

NEMA design letter-

Insulation classF

NEMA nominal efficiency (%)79.6

Power factor93

Rating40C AMB-S1 CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1372L

Performance

General characteristics· 220 V, 50 Hz, 0.75 kw

Line-to-line resistance at 25 °C (ohms)2.936 Ω / 1.6806 Ohms B Ph

Temperature rise at rated load (°C)42° C

Start configurationDOL

Breakdown torque9.34 lb-ft

Pull-up torque6.87 lb-ft

Locked-rotor torque10.4 lb-ft

Starting current (A)38.1 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	35	68	83	90	93	94	95
Efficiency %	0	62.5	76.3	80.6	81.2	79.9	77
Speed rpm	1498	1489.6	1480.7	1471.1	1460.2	1447.2	1430.2
Line amps A	1.69	1.99	2.68	3.52	4.51	5.65	6.99
Power W	129	297	488	694	919	1170	1458
Torque lb-ft	0	0.8766	1.772	2.677	3.599	4.543	5.526

Documents & CAD

For this product 3

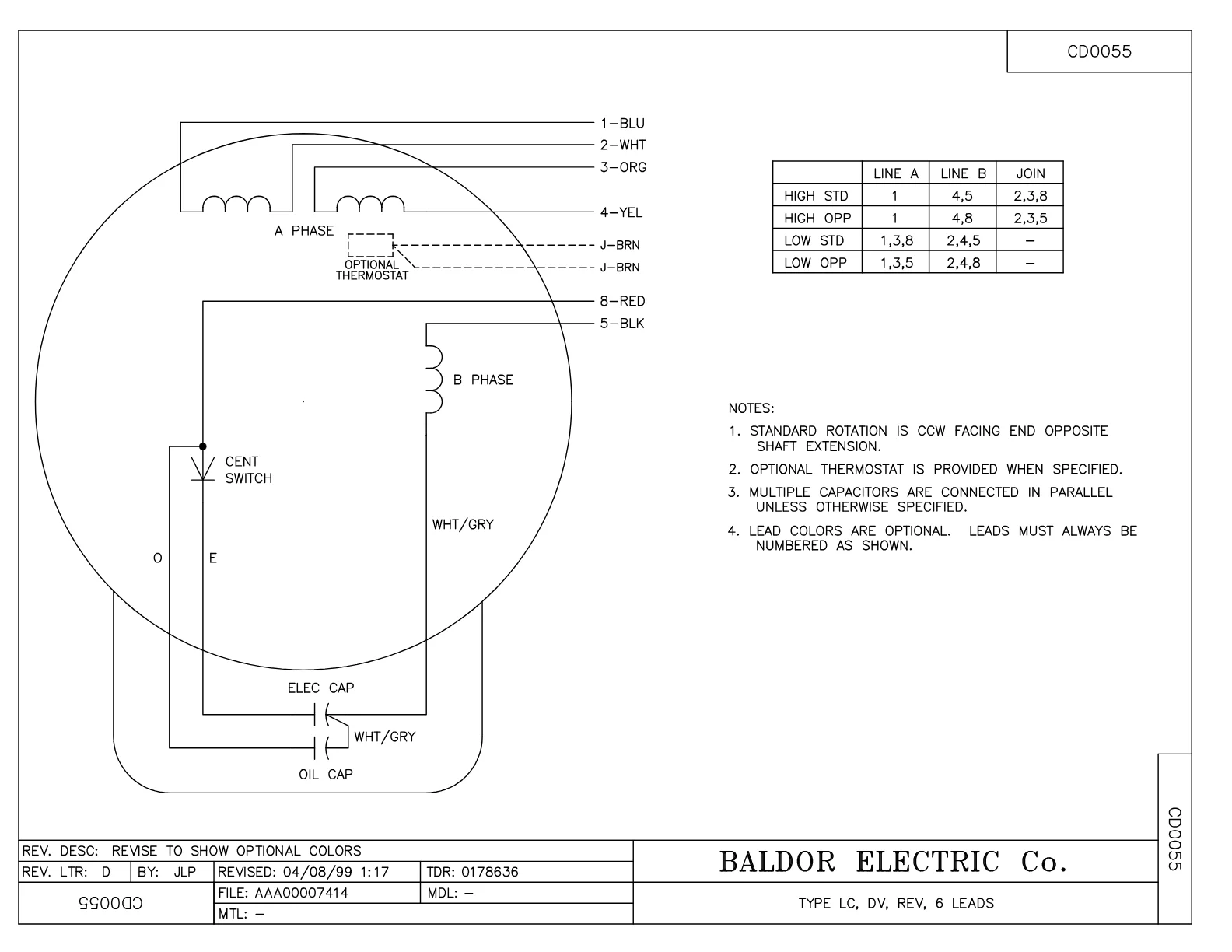

Wiring DiagramWiring DiagramPDF·40 KB·English

DatasheetDatasheetPDF·612 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·116 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor L1318-50 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3050F09SP	CAPACITOR 50 MFD 370 VAC	1 pcs	69 motors
EC1645A06SP	ELEC CAP, 645-774 MFD, 125V, 2.06D X 4.	1 pcs	56 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
