Baldor L1208-50

Baldor-Reliance L1208-50 is a general purpose single-phase AC motor rated 0.37 kW, 2870 rpm, 110/220 V 50 Hz, with 48 frame and ODP enclosure.

BaldorMFR # L1208-50SKU # YLSSAD0SMMS7ZXZ

EnclosureODP

Frame48

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.370 KW @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance L1208-50 is a general purpose single-phase AC motor rated 0.37 kW, 2870 rpm, 110/220 V 50 Hz, with 48 frame and ODP enclosure.

Baldor L1208-50

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame48

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.370 KW @ 50 HZ

Phase1

Synchronous speed at frequency (rpm)3000 RPM @ 50 HZ

Voltage at frequency110.0 V @ 50 HZ · 220.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsUKCA · WEEE · CURUS · CE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage2.400 A @ 220.0 V · 4.800 A @ 110.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load74.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.4 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3420LC

Mounting arrangementF1

Number of poles2

Overall length9.76 IN

Power factor91

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.500 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)2870 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568119815

Nameplate

Catalog numberL1208-50

Specification number34F351R748G1

Horsepower (HP).5 /KW .37

Voltage (V)110/220

Current (A)4.8/2.4

Speed (1/min)2870

Frame size48

Frequency (Hz)50

Phase1

Service factor1.25

Code letter (locked rotor kVA)J

NEMA design letter-

Insulation classB

NEMA nominal efficiency (%)74

Power factor91

Rating40C AMB-S1 CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1372L

Performance

General characteristics· 220 V, 50 Hz, 0.37 kw

Line-to-line resistance at 25 °C (ohms)5.1212 Ω / 3.7762 Ohms B Ph

Temperature rise at rated load (°C)19° C

Temperature rise at service factor load (°C)24° C

Start configurationDOL

Breakdown torque2.85 lb-ft

Pull-up torque1.51 lb-ft

Locked-rotor torque2.84 lb-ft

Starting current (A)16.5 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	39	66	81	88	91	94	95	94
Efficiency %	0	50.2	67.1	73.8	76.7	76.6	74.9	76.6
Speed rpm	2988.8	2962.8	2936.8	2904.8	2874.3	2835	2788.6	2835
Line amps A	1.17	1.32	1.59	1.96	2.42	2.94	3.56	2.94
Power W	100	190	280	378	487	606	741	606
Torque lb-ft	0	0.2263	0.4509	0.6758	0.9146	1.152	1.4	1.15

Documents & CAD

For this product 3

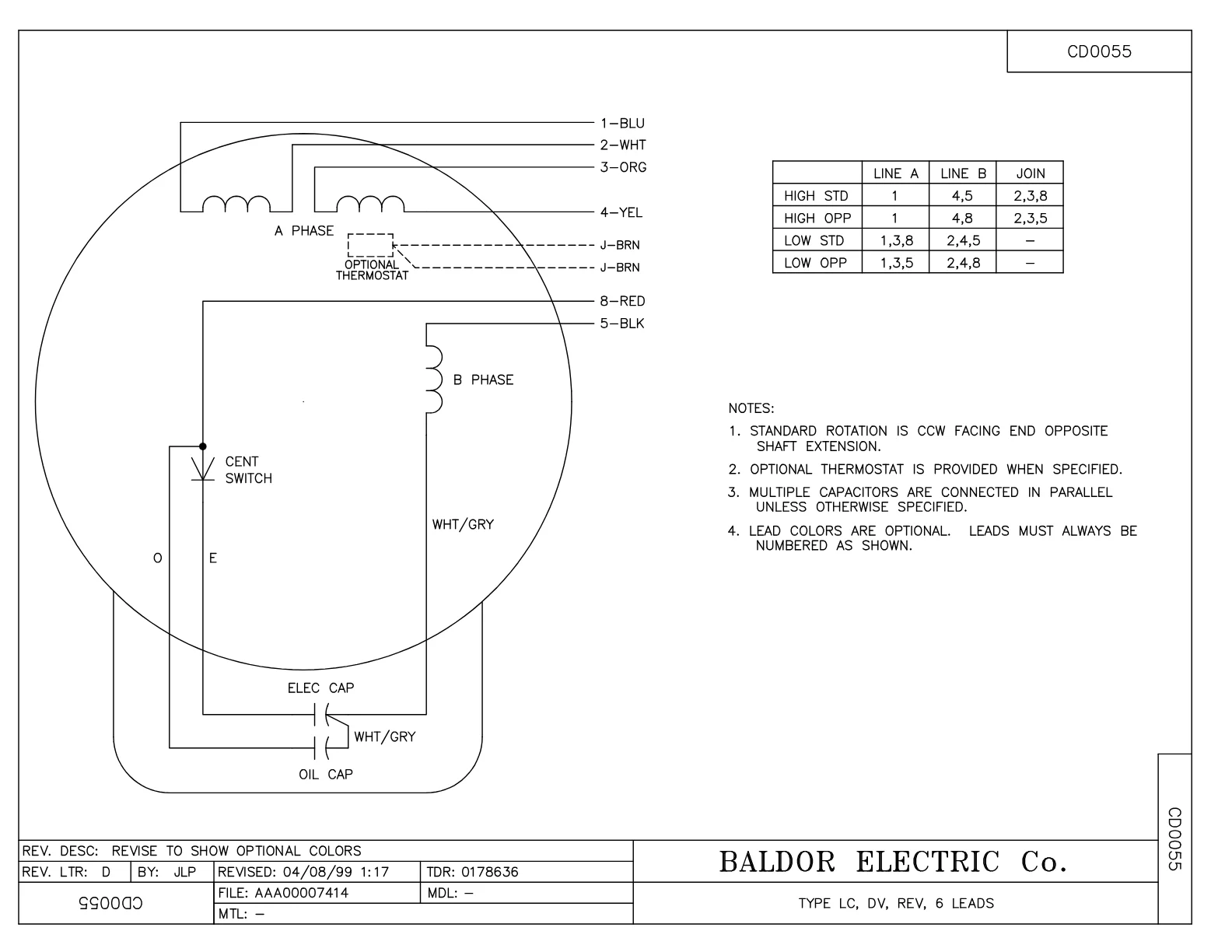

Wiring DiagramWiring DiagramPDF·40 KB·English

DatasheetDatasheetPDF·598 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·113 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor L1208-50 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
