Baldor L1201

General Purpose Motor - 1/6 hp, 1200 rpm, 1 ph, 115/230 V, 48 Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1140 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # L1201SKU # YLSDXI73DC0PAXR

EnclosureOPEN

Frame48

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.170 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 1/6 hp, 1200 rpm, 1 ph, 115/230 V, 48 Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1140 rpm Base, Foot Mount, Continuous Duty

Features and Benefits

Copper windings
Dynamically balanced rotors
Ball bearings
Heavy-gauge steel frames
Applications: Compressors, pumps, conveyors, machine tools, air handling, and others

Baldor L1201

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame48

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.170 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage2.300 A @ 230.0 V · 4.600 A @ 115.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load47.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.3 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeP

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3418L

Mounting arrangementF1

Number of poles6

Overall length9.38 IN

Power factor52

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.35

Shaft diameter0.500 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1140 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568100943

Motor Supply Voltage115/230 V

Base RPM1140 rpm

Mounting TypeFoot

Warranty2 Year Warranty

Type Of BearingBall

IP Rating22/23

Weight23 lbs

ApplicationsCompressors, pumps, conveyors, machine tools, air handling, and others.

Additional DetailsCopper windings, dynamically balanced rotors, ball bearings, heavy gauge steel frames, and other industrial quality features.

Harmonization Code8501.40.4040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberL1201

Specification number34F01-5612

Horsepower (HP).17

Voltage (V)115/230

Current (A)4.6/2.3

Speed (rpm)1140

Frame size48

Frequency (Hz)60

Phase1

Service factor1.35

Code letter (locked rotor kVA)P

NEMA design letterN

Insulation classB

NEMA nominal efficiency (%)47

Power factor52

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1256L

Performance

General characteristics· 230 V, 60 Hz, 0.17 hp

Line-to-line resistance at 25 °C (ohms)11.6 Ω / 10.4 Ohms B Ph

Temperature rise at rated load (°C)43° C

Temperature rise at service factor load (°C)51° C

Start configurationDOL

Breakdown torque2.18 lb-ft

Pull-up torque1.84 lb-ft

Locked-rotor torque2.33 lb-ft

Starting current (A)9.5 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	22	31	39	45	52	58	64	62
Efficiency %	0	19	34	42	47	50	51	50.5
Speed rpm	1195	1185	1175	1160	1150	1135	1120	1125
Line amps A	2.1	2.1	2.15	2.2	2.3	2.4	2.7	2.5
Power W	106	166	184	221	261	302	351	0
Torque lb-ft	0	0.1875	0.375	0.5625	0.75	0.9375	1.125	0

Documents & CAD

For this product 4

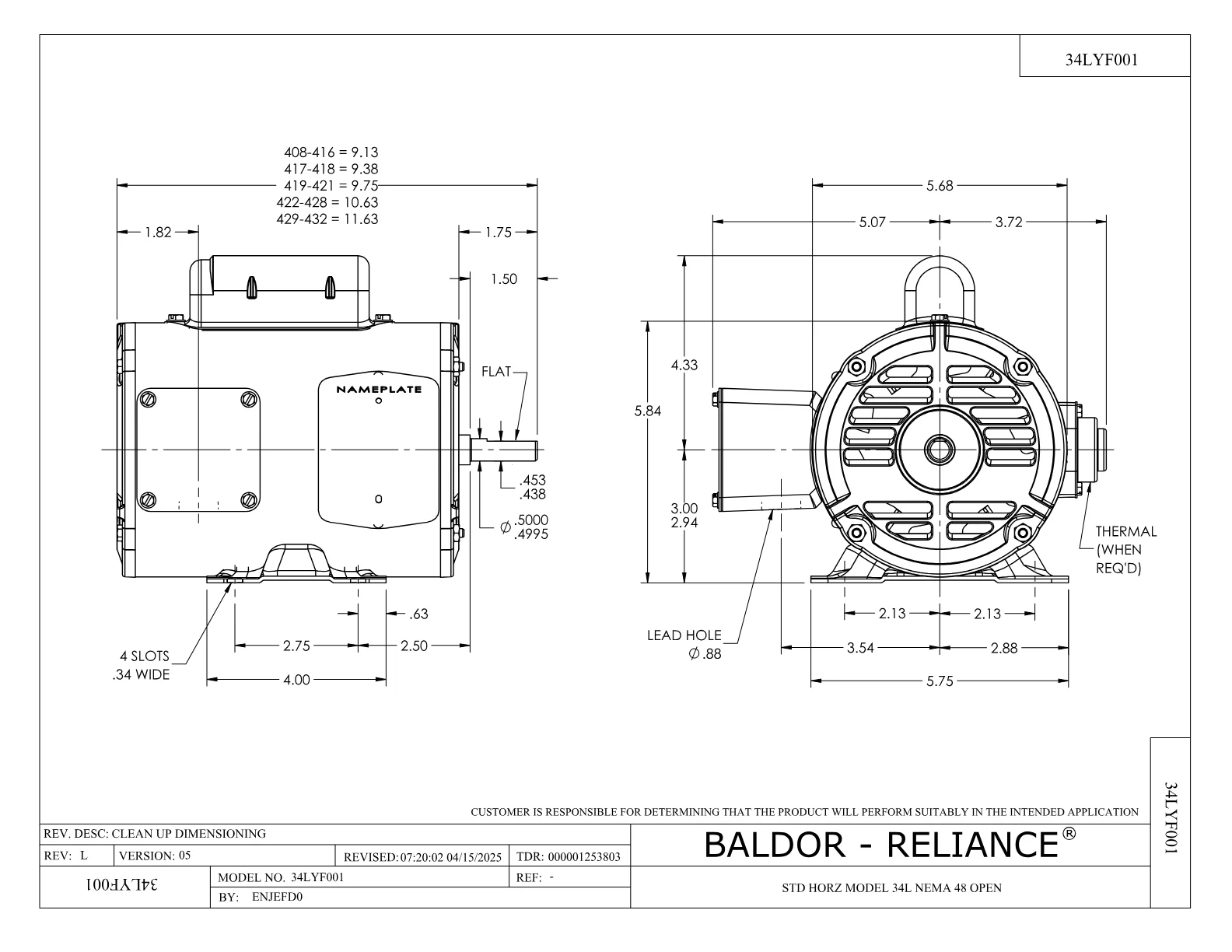

Dimension DrawingDimension SheetPDF·104 KB·English

Wiring DiagramWiring DiagramPDF·39 KB·English

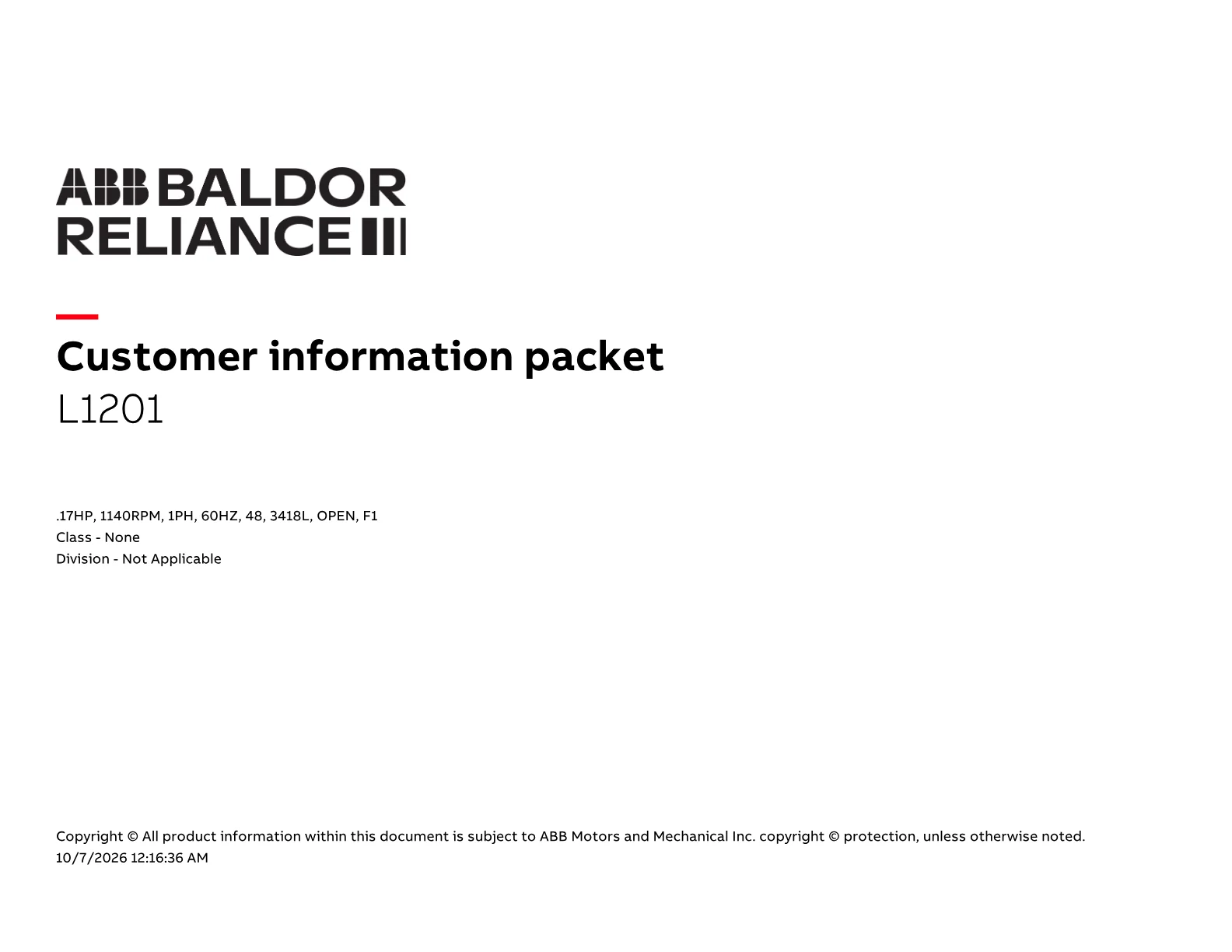

DatasheetDatasheetPDF·585 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor L1201 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
