Baldor L1177T

General Purpose Motor - 15 hp, 1800 rpm, 1 ph, 230 V, 254T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1760 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # L1177TSKU # YLSWIWM55LR22RE

EnclosureTEFC

Frame254T

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency15.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 15 hp, 1800 rpm, 1 ph, 230 V, 254T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1760 rpm Base, Foot Mount, Continuous Duty

Features and Benefits

Heavy-gauge steel frames and a heavy-duty base seam welded to the frame
Ball bearings
“Snap Action” starting switch and gasketed conduit box and capacitor cover
TEFC, foot mount
Applications: Compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools and others

Baldor L1177T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame254T

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency15.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage60.000 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load86.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)60.0 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeE

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 6 AWG, A PH

Motor type0956LC

Mounting arrangementF1

Number of poles4

Overall length23.36 IN

Power factor96

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS NON-COMPLIANT

Service factor1.00

Shaft diameter1.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1760 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568100929

Motor Supply Voltage230 V

Base RPM1760 rpm

Mounting TypeFoot

Warranty2 Year Warranty

Type Of BearingBall

IP Rating44

Weight322 lbs

ApplicationsCompressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools and others.

Additional DetailsHeavy gauge steel frames and a heavy duty base seam welded to the frame, ball bearings, a “Snap Action” starting switch and gasketed conduit box and capacitor cover.

Harmonization Code8501.40.6040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberL1177T

Specification number09G373Z143G1

Horsepower (HP)15

Voltage (V)230

Current (A)60

Speed (rpm)1760

Frame size254T

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)E

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)86.5

Power factor96

Rating40C AMB-CONT

Drive end bearing6309

Opposite drive end bearing6307

EnclosureTEFC

Nameplate numberNP1256L

Performance

General characteristics· 230 V, 60 Hz, 15 hp

Line-to-line resistance at 25 °C (ohms)0.11 Ω / 0.415 Ohms B Ph

Temperature rise at rated load (°C)80° C

Start configurationDOL

Breakdown torque114 lb-ft

Pull-up torque55 lb-ft

Locked-rotor torque76.7 lb-ft

Starting current (A)304 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	42	89	95	96	96	95	94
Efficiency %	0	80.5	87.6	88.3	86.9	83.8	79.3
Speed rpm	1799	1784	1768	1749	1727	1698	1664
Line amps A	7.93	17	29	42.7	57.9	75.8	97.2
Power W	768	3487	6341	9465	12785	16586	20904
Torque lb-ft	0	11.1	22.1	33.6	45.3	57.6	70.1

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·151 KB·English

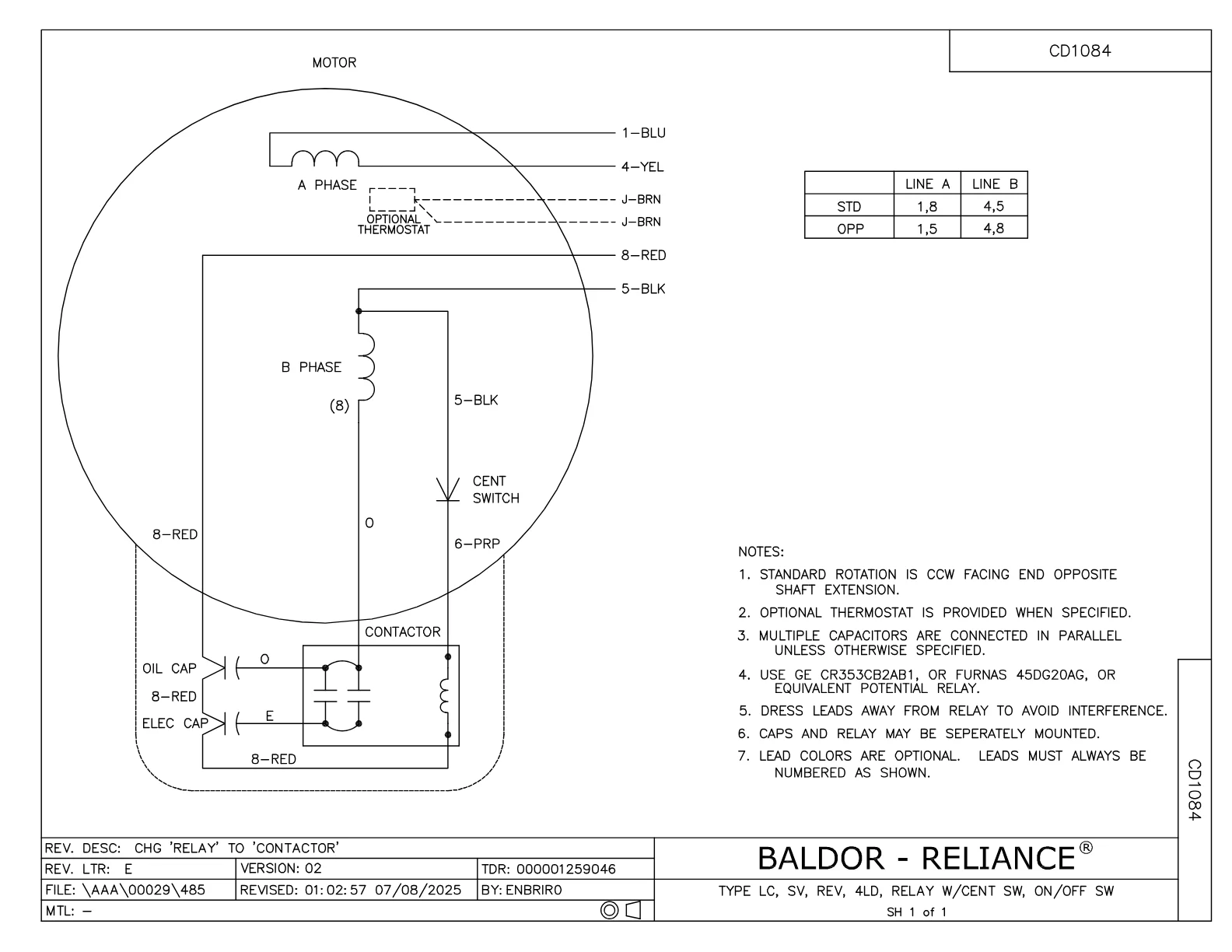

Wiring DiagramWiring DiagramPDF·49 KB·English

DatasheetDatasheetPDF·651 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor L1177T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3050F09SP	CAPACITOR 50 MFD 370 VAC	2 pcs	69 motors
EC1216C06SP	ELEC CAP, 216-259 MFD, 250V, 2.06D X 4.	4 pcs	45 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	8 pcs	1,543 motors
SP5165	MODEL 39 DOUBLE ARM STATIONARY SWITCH	1 pcs	6 motors
09EP1101A11SP	PU ENDPLATE, MACH	1 pcs	23 motors
09FH4000SP	309 FH - BLACK PRIMER	1 pcs	131 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 1

Genuine accessories that can be used with the Baldor L1177T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
