Baldor JWDM3463

Washdown Duty Jet Pump Motor (Painted) - 3/4 hp, 3600 rpm, 3 ph, 208-230/460 V, 56J Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, C-Face / Footless Mount

BaldorMFR # JWDM3463SKU # YLS6599VLM35A9V

EnclosureTEFC

Frame56J

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Washdown Duty Jet Pump Motor (Painted) - 3/4 hp, 3600 rpm, 3 ph, 208-230/460 V, 56J Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, C-Face / Footless Mount

Baldor JWDM3463

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56J

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.750 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency208.0 V @ 60 HZ · 230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.400 A @ 460.0 V · 2.800 A @ 230.0 V · 3.000 A @ 208.0 V · 3.800 A @ 208.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load68.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.4 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 18 AWG

Motor type3514M

Mounting arrangementF1

Number of poles2

Overall length12.72 IN

Power factor74

Product familyWash Down

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorExt Thread

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.50

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568720769

Motor CategoryJet Pump Motor (Painted)

Motor Supply Voltage208-230/460 V

Base RPM3450 rpm

IP Rating55

Harmonization Code8501.51.4040

Weight33 lbs

ApplicationsIndustrial pumping applications in wet or humid environments, especially in food and beverage processing facilities in which equipment is cleaned on a regular basis.

Additional Details300 series stainless steel shaft and hardware. Contact lip seal and V-ring slinger on drive end, easily removable drain plugs for thorough drainage, neoprene gaskets, precision die cast aluminum rotor coated with epoxy primer. Double-sealed ball bearings with moisture-resistant grease. White epoxy exterior paint.

Mounting TypeC-Face / Footless

Product TypeWashdown Duty Motors

Nameplate

Catalog numberJWDM3463

Specification number35E2235-0081G1

Horsepower (HP).75

Voltage (V)208-230/460

Current (A)3-2.8/1.4

Speed (rpm)3450

Frame size56J

Frequency (Hz)60

Phase3

Service factor1.50

Code letter (locked rotor kVA)L

NEMA design letterB

Insulation classF

NEMA nominal efficiency (%)68

Power factor74

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1496L

Performance

General characteristics· 460 V, 60 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)18.6 Ω

Temperature rise at rated load (°C)43° C

Temperature rise at service factor load (°C)57° C

Start configurationDOL

Breakdown torque4.98 lb-ft

Pull-up torque3.71 lb-ft

Locked-rotor torque4.4 lb-ft

Starting current (A)8.85 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	26	43	58	68	76	80	83	83
Efficiency %	0	41.9	57.7	64.8	69.2	70.7	71.1	71.1
Speed rpm	3586	3559	3534	3507	3475	3441	3402	3402
Line amps A	0.908	0.98	1.05	1.18	1.31	1.51	1.71	1.71
Power W	188	339	487	642	798	960	1127	1127
Torque lb-ft	0	0.281	0.56	0.835	1.12	1.39	1.66	1.66

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

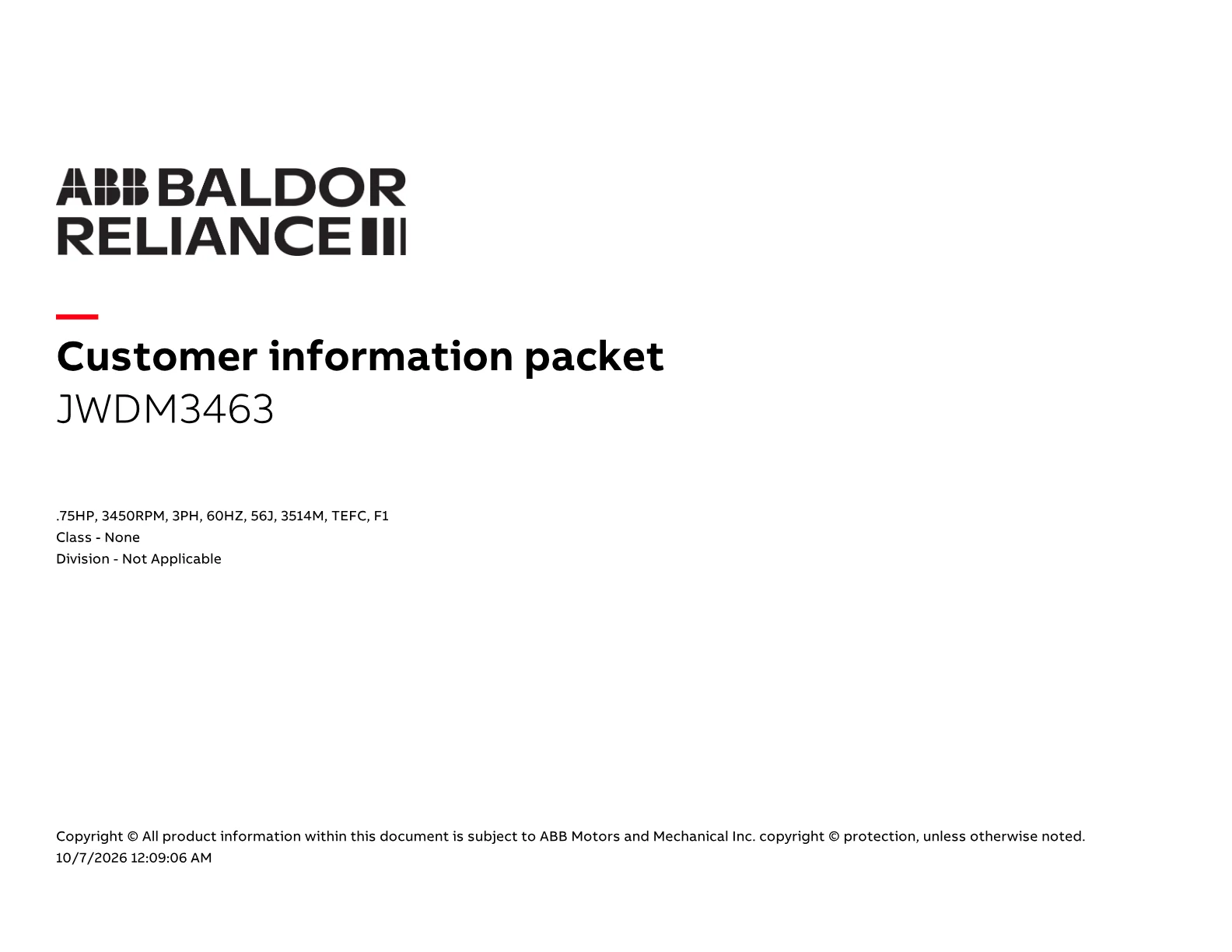

DatasheetDatasheetPDF·641 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·157 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor JWDM3463 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW4600B39SP	V-RING SLINGER 0.550 X 0.790 X .18 VITON	1 pcs	142 motors
34FN3002B01	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	623 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
