How can I get a price quote for Baldor JSL625A?

You can request a fast quote for Baldor JSL625A from Yılsa Engineering. Reference part number YLS0UQXBFEJ700Y. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor JSL625A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor JSL625A genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor JSL625A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor JSL625A

Baldor-Reliance JSL625A is a general purpose AC electric motor rated 1.5 HP, 3450 rpm, single phase 115/230 V, 60 Hz, with a 56YZ frame and OPSB enclosure.

BaldorMFR # JSL625ASKU # YLS0UQXBFEJ700Y

EnclosureOPSB

Frame56YZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance JSL625A is a general purpose AC electric motor rated 1.5 HP, 3450 rpm, single phase 115/230 V, 60 Hz, with a 56YZ frame and OPSB enclosure.

Baldor JSL625A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame56YZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage11.000 A @ 208.0 V · 18.000 A @ 115.0 V · 9.000 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load72.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)9.0 a

Front face codeTerminal Panel

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeH

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitTerminal Panel

Motor lead terminationNone

Motor lead quantity/wire size4 @ 14 AWG, A&J

Motor type3524L

Mounting arrangementF1

Number of poles2

Overall length13.43 IN

Power factor75

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codePool Pump

Pulley shaft indicatorExt Thread & Tapped Hole

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.30

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorShaft Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568704622

Nameplate

Catalog numberJSL625A

Specification number35E2011L466G1

Horsepower (HP)1.5

Voltage (V)115/230

Current (A)18/9

Speed (rpm)3450

Frame size56YZ

Frequency (Hz)60

Phase1

Service factor1.30

Code letter (locked rotor kVA)H

NEMA design letterL

Insulation classB

NEMA nominal efficiency (%)72

Power factor75

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureOPSB

Nameplate numberNP1257L

Performance

General characteristics· 115 V, 60 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)0.313 Ω / 0.963 Ohms B Ph

Temperature rise at rated load (°C)78° C

Temperature rise at service factor load (°C)97° C

Start configurationDOL

Breakdown torque7.57 lb-ft

Pull-up torque6.05 lb-ft

Locked-rotor torque7.32 lb-ft

Starting current (A)108 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	21	41	57	67	75	80	83	81
Efficiency %	0	49	64	70.8	74.1	74.4	74.6	74.4
Speed rpm	3591	3574	3554	3534	3513	3488	3460	3482
Line amps A	10.8	11.8	13.3	15.3	17.7	20.6	23.7	21.2
Power W	259	552	876	1178	1530	1885	2255	1959
Torque lb-ft	0	0.533	1.11	1.66	2.27	2.83	3.42	2.95

Documents & CAD

For this product 3

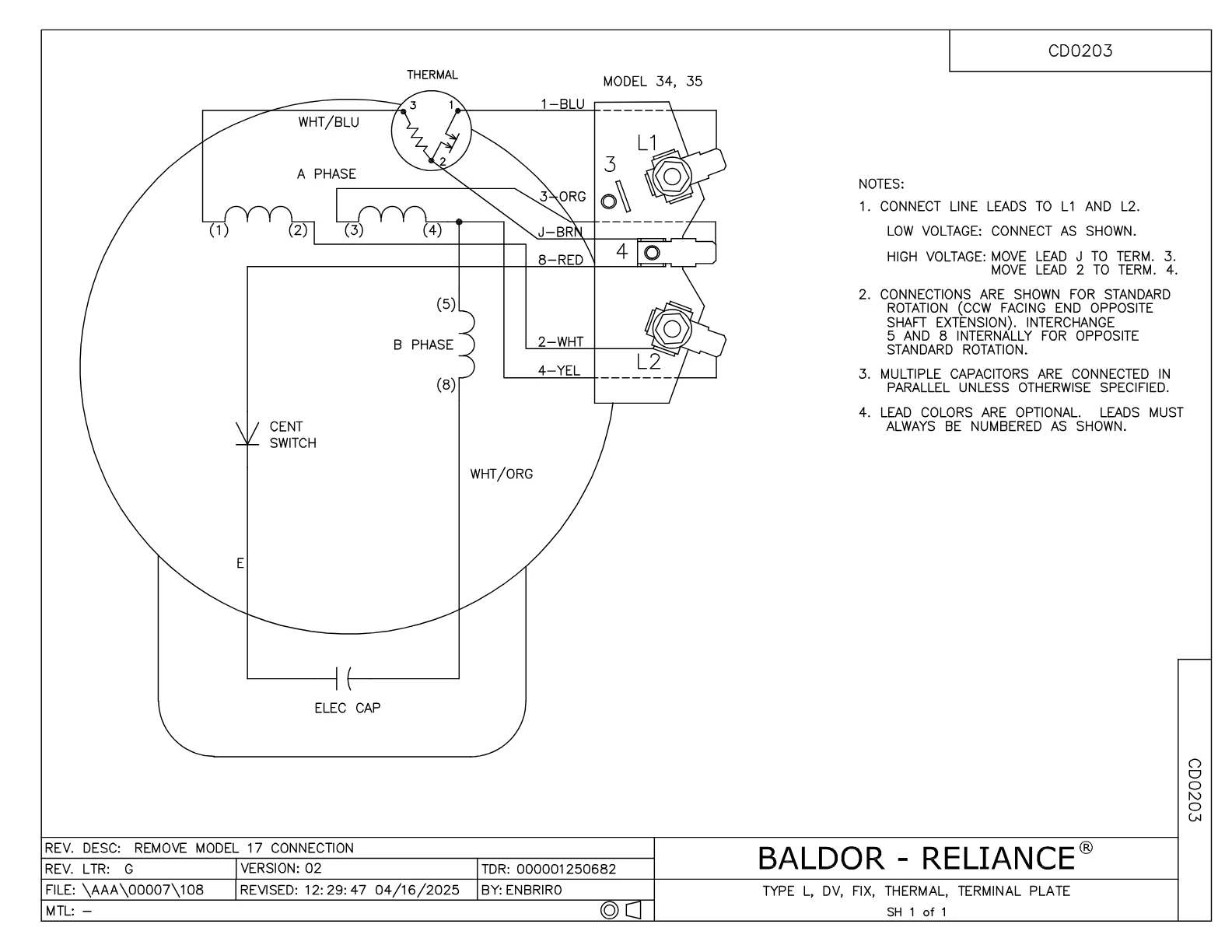

Wiring DiagramWiring DiagramPDF·48 KB·English

DatasheetDatasheetPDF·620 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·128 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor JSL625A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1645A06SP	ELEC CAP, 645-774 MFD, 125V, 2.06D X 4.	1 pcs	56 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	1 pcs	103 motors
HW4600B39SP	V-RING SLINGER 0.550 X 0.790 X .18 VITON	1 pcs	142 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
