Baldor JSL325A

Baldor-Reliance JSL325A is a general purpose AC electric motor rated 0.5 HP, 3450 rpm, single phase 115/230 V, 60 Hz, with a 56Y frame and ODP enclosure.

BaldorMFR # JSL325ASKU # YLSMBGWDDGBMS1N

EnclosureODP

Frame56Y

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance JSL325A is a general purpose AC electric motor rated 0.5 HP, 3450 rpm, single phase 115/230 V, 60 Hz, with a 56Y frame and ODP enclosure.

Baldor JSL325A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame56Y

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage3.300 A @ 230.0 V · 4.400 A @ 208.0 V · 6.600 A @ 115.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load70.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.3 a

Front face codeTerminal Panel

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeG

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitTerminal Panel Or Lead Hole

Motor lead terminationFlying Leads With QC

Motor lead quantity/wire size5 @ 18 AWG

Motor type3416L

Mounting arrangementF1

Number of poles2

Overall length11.35 IN

Power factor69

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codePool Pump

Pulley shaft indicatorExt Thread & Tapped Hole

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.60

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorShaft Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationEP

Winding thermal 2None

UPC781568346365

Nameplate

Catalog numberJSL325A

Specification number34M228R049G1

Horsepower (HP).5

Voltage (V)115/230

Current (A)6.6/3.3

Speed (rpm)3450

Frame size56Y

Frequency (Hz)60

Phase1

Service factor1.60

Code letter (locked rotor kVA)G

NEMA design letter-

Insulation classB

NEMA nominal efficiency (%)70

Power factor69

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1257L

Performance

General characteristics· 115 V, 60 Hz, 0.5 hp

Line-to-line resistance at 25 °C (ohms)0.87803 Ω / 2.7463 Ohms B Ph

Temperature rise at rated load (°C)26° C

Temperature rise at service factor load (°C)43° C

Start configurationDOL

Breakdown torque2.59 lb-ft

Pull-up torque1.81 lb-ft

Locked-rotor torque2.04 lb-ft

Starting current (A)24.5 A

Line-to-line resistance at 25 °C (ohms)3.388 Ω / 2.78 Ohms B Ph

Temperature rise at rated load (°C)26° C

Temperature rise at service factor load (°C)43° C

Start configurationDOL

Breakdown torque2.59 lb-ft

Pull-up torque1.87 lb-ft

Locked-rotor torque2.1 lb-ft

Starting current (A)12.7 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	23	35	50	61	69	76	81	82
Efficiency %	0	44.8	60.8	67.2	70.3	71.5	71.1	68.7
Speed rpm	3599	3569.3	3545.7	3521.6	3495.4	3464.3	3428.1	3383
Line amps A	5.04	5.14	5.41	5.98	6.63	7.47	8.48	9.116
Power W	134	208	309	419	530	654	786	866
Torque lb-ft	0	0.184	0.373	0.563	0.751	0.95	1.15	1.238

Documents & CAD

For this product 3

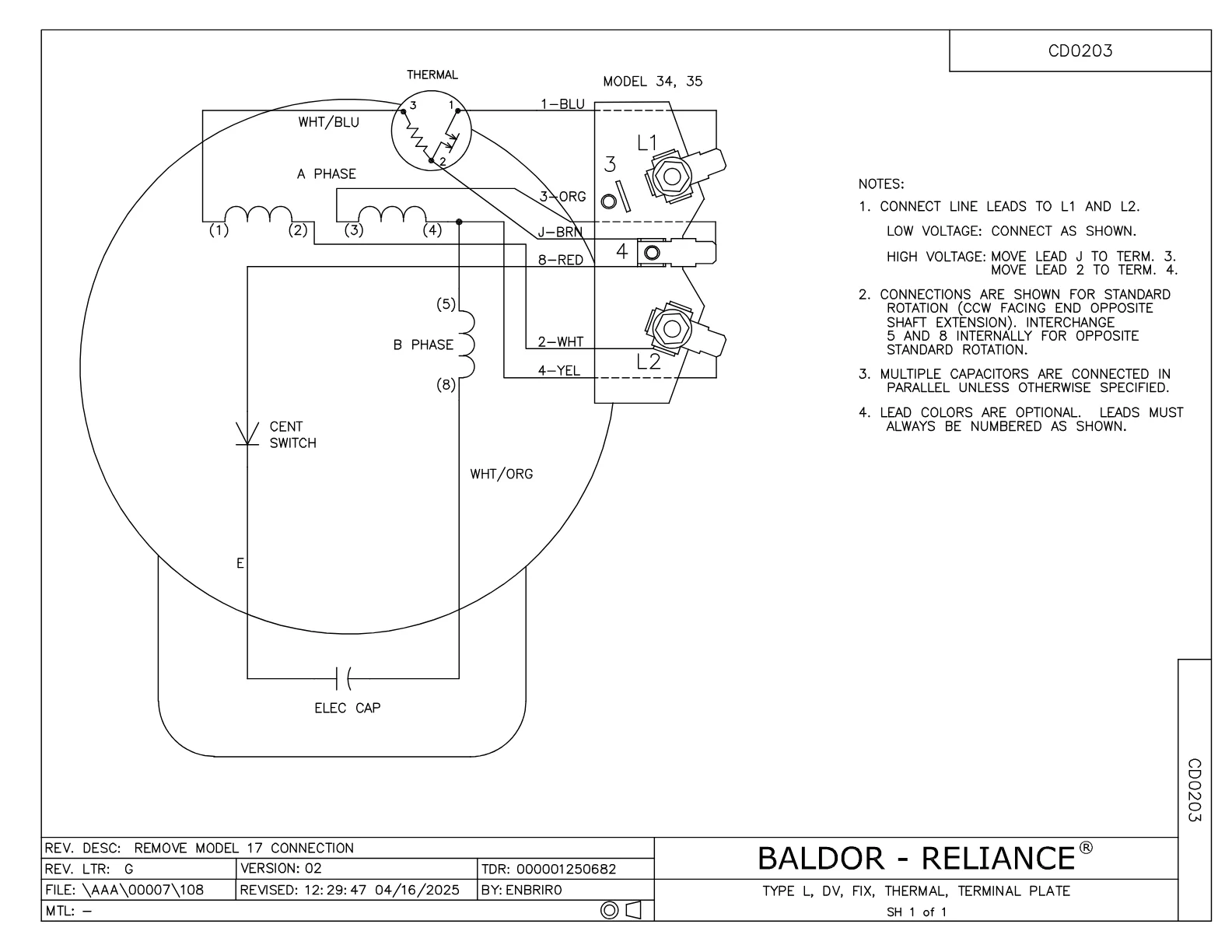

Wiring DiagramWiring DiagramPDF·48 KB·English

DatasheetDatasheetPDF·696 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·123 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor JSL325A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1216A02SP	ELEC CAP, 216-259 MFD, 125V, 1.48D X 3.	1 pcs	6 motors
34CB4800SP	CAPACITOR COVER, STAMPED PRIMED	1 pcs	79 motors
HA1005A05SP	SLINGER, OD 1.50, ID .659, 203 BRG	1 pcs	112 motors
34CB4501SP	TERMINAL BOX LID, STAMPED X (PLATED)	1 pcs	95 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
