Baldor JPL1508T

Close Coupled Pump Motor - 5 hp, 1800 rpm, 1 ph, 230 V, 213JP Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1725 rpm Base, Foot Mounted Mount, Continuous Duty

BaldorMFR # JPL1508TSKU # YLSH7SVKAB5YYW1

EnclosureODP

Frame213JP

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Close Coupled Pump Motor - 5 hp, 1800 rpm, 1 ph, 230 V, 213JP Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1725 rpm Base, Foot Mounted Mount, Continuous Duty

Baldor JPL1508T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame213JP

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency5.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage27.000 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load77.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)27.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 10 AWG, A PH

Motor type3727L

Mounting arrangementF1

Number of poles4

Overall length22.07 IN

Power factor78

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenIncluded

Service factor1.15

Shaft diameter1.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568114728

Motor CategoryClose Coupled Pump Motor

Motor Supply Voltage230 V

Base RPM1725 rpm

Harmonization Code8501.40.6040

Weight134 lbs

ApplicationsPumping systems where only single phase power is available.

Additional DetailsHeavy-gauge steel frame construction, corrosion resistant finish, oversized ball bearings with locked construction to minimize axial shaft movement.

Mounting TypeFoot Mounted

Product TypePump Motors

Nameplate

Catalog numberJPL1508T

Specification number37K239T912

Horsepower (HP)5

Voltage (V)230

Current (A)27

Speed (rpm)1725

Frame size213JP

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)G

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)77

Power factor78

Rating40C AMB-CONT

Drive end bearing6309

Opposite drive end bearing6206

EnclosureOPSB

Nameplate numberNP1256L

Performance

General characteristics· 230 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)0.352 Ω / 1.48 Ohms B Ph

Temperature rise at rated load (°C)68° C

Temperature rise at service factor load (°C)88° C

Start configurationDOL

Breakdown torque43 lb-ft

Pull-up torque30.8 lb-ft

Locked-rotor torque46.9 lb-ft

Starting current (A)132 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	11	38	58	71	78	81	82	80
Efficiency %	0	71.1	79.4	78	77.1	74.1	67.1	75.3
Speed rpm	1799	1781	1766	1749	1728	1699	1653	1711
Line amps A	14.3	14.9	17.5	21.9	27.1	33.9	44.4	31.2
Power W	359	1319	2346	3602	4860	6325	8365	5739
Torque lb-ft	0	3.71	7.42	11.3	15.3	19.4	23.9	17.8

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·153 KB·English

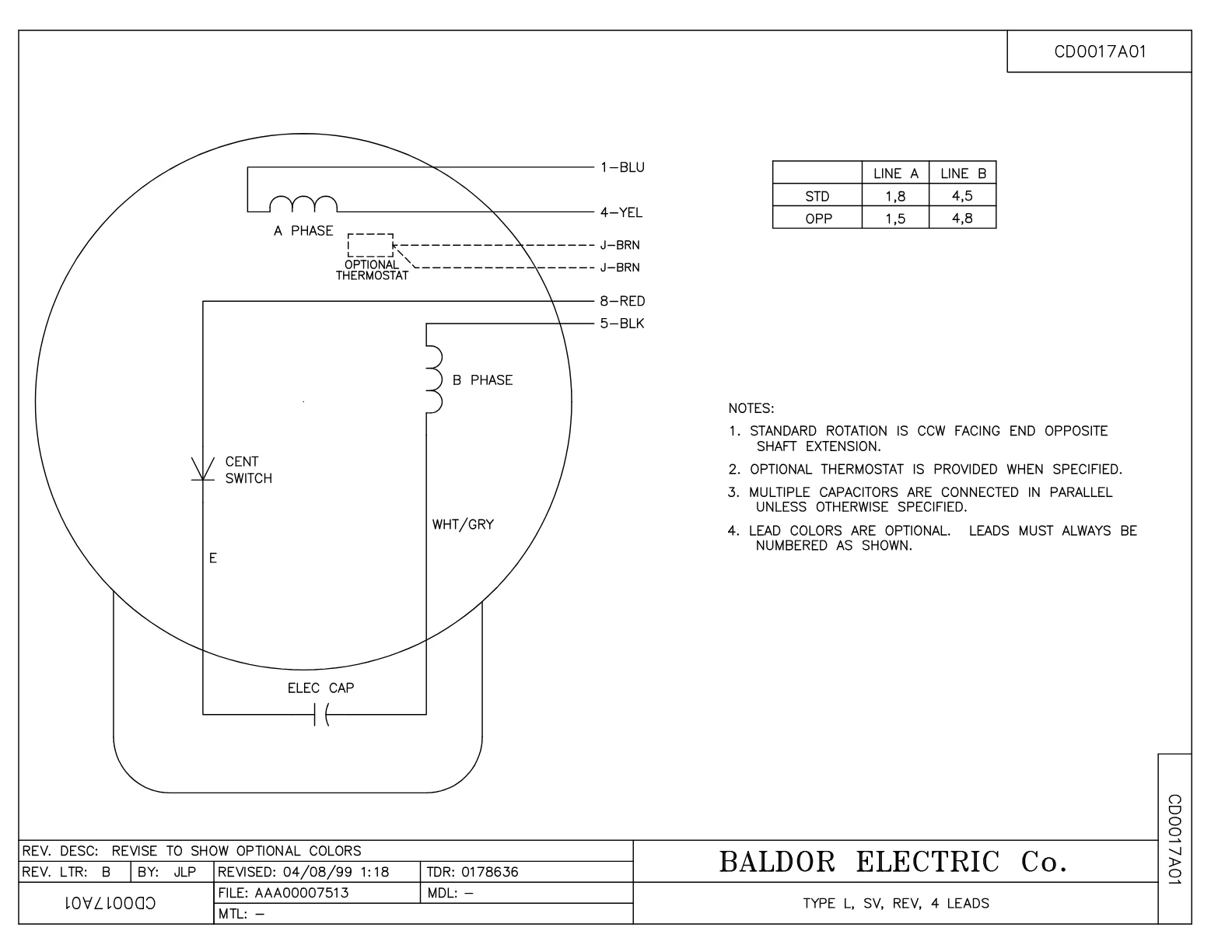

Wiring DiagramWiring DiagramPDF·35 KB·English

DatasheetDatasheetPDF·634 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor JPL1508T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1216C06SP	ELEC CAP, 216-259 MFD, 250V, 2.06D X 4.	2 pcs	45 motors
37CB3802SP	CAPACITOR COVER, CAST	1 pcs	8 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
