Baldor JMXM18322T

Explosion Proof General Purpose Motor - 3 hp, 3600 rpm, 3 ph, 230/460 V, 182JM Frame, EPFC (Explosion Proof Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, Rigid Base Mount, Continuous Duty

BaldorMFR # JMXM18322TSKU # YLSD88YNZ6GNC0B

EnclosureTEFC

Frame182JM

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency2.000 HP @ 50 HZ · 3.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Explosion Proof General Purpose Motor - 3 hp, 3600 rpm, 3 ph, 230/460 V, 182JM Frame, EPFC (Explosion Proof Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, Rigid Base Mount, Continuous Duty

Baldor JMXM18322T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame182JM

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency2.000 HP @ 50 HZ · 3.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency380.0 V @ 50 HZ · 230.0 V @ 60 HZ · 190.0 V @ 50 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupCLI GP D; CLII GP F,G

Hazardous area divisionDivision I

Agency approvalsCSA EEV · UL

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Constant torque speed range6

Current at voltage7.400 A @ 230.0 V · 6.000 A @ 190.0 V · 3.700 A @ 460.0 V · 3.000 A @ 380.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load86.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Duty

IP ratingNONE

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)5400 rpm

Motor lead terminationFlying Leads

Motor type3622M

Mounting arrangementF1

Number of poles2

Overall length18.98 IN

Power factor91

Product familyGeneral Purpose

Pulley face codeC-Face

Rodent screenNone

Service factor1.00

Shaft diameter0.875 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

Hazardous area temperature codeT3C

UPC781568970164

Motor CategoryGeneral Purpose Motor

Motor Supply Voltage230/460 V

Base RPM3450 rpm

Weight80 lbs

RoHs ComplianceRoHS Compliant

Superseded Motor Part NumberEJMM7026T

Mounting TypeRigid Base

Product TypeExplosion Proof (Hazardous Location) Motors

Nameplate

CC number010A

Temperature codeT3C

Specification number36-0000-0482

Inverter typePWM

Catalog numberJMXM18322T

Constant horsepower range from60

Constant horsepower range to90

Horsepower (HP)3//2

Constant torque frequency from (Hz)6

Constant torque frequency to (Hz)60

Voltage (V)230/460//190/380

Variable torque frequency from (Hz)6

Variable torque frequency to (Hz)60

Current (A)7.4/3.7//6/3

Magnetizing current (A)2.4/1.2

Speed (rpm)3450//2890

Maximum speed (rpm)5400

Frequency (Hz)60//50

Phase3

Insulation classF

Nominal efficiency (%)86.5

Service factor1.00

NEMA design letterB

SL HZ2.5

Inertia (WK²)0.1

Frame size182JM

Rating40C AMB-CONT

Nameplate numberNP0887XPSLEV

Performance

General characteristics· 460 V, 60 Hz, 3 hp

Line-to-line resistance at 25 °C (ohms)4.71 Ω

Temperature rise at rated load (°C)52° C

Start configurationDOL

Breakdown torque19.7 lb-ft

Pull-up torque12 lb-ft

Locked-rotor torque14.1 lb-ft

Starting current (A)33.3 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	15	66	82	88	91	92	93
Efficiency %	0	80.3	86	87.3	86.9	86	84.5
Speed rpm	3592	3565	3535	3504	3472	3434	3394
Line amps A	1.17	1.56	2.17	2.93	3.67	4.57	5.5
Power W	140	819	1419	2046	2667	3368	4085
Torque lb-ft	0	1.3	2.43	3.59	4.7	5.94	7.16

Documents & CAD

For this product 4

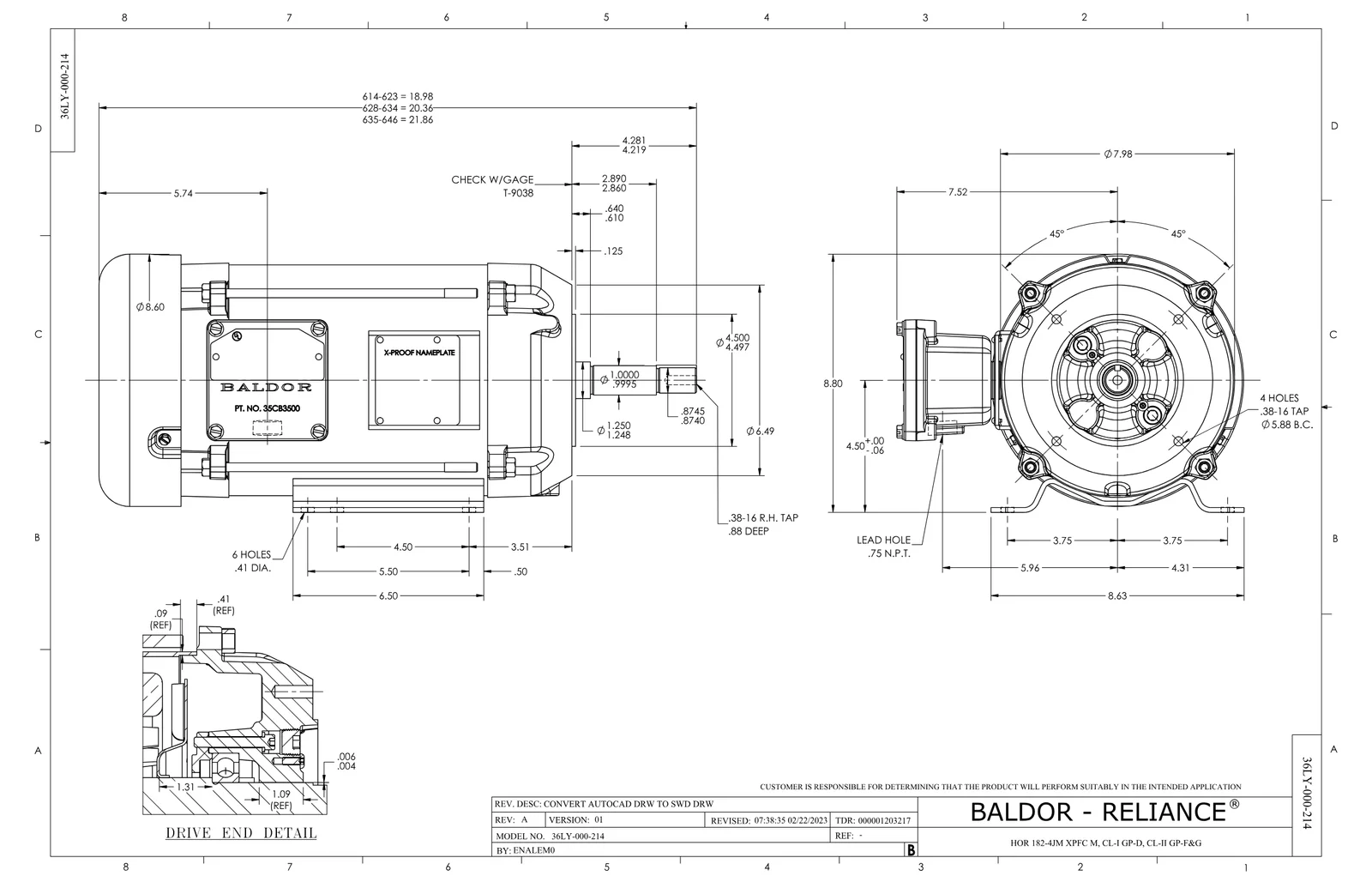

Dimension DrawingDimension SheetPDF·142 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·627 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor JMXM18322T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
35CB3001A02SP	EXPL PROOF CONDUIT BOX, 3/4"PIPE TAP LEA	1 pcs	100 motors
35CB3500A01SP	CONDUIT BOX LID, MACH	1 pcs	203 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
