Baldor JML3608T

Close Coupled Pump Motor - 5 hp, 3600 rpm, 1 ph, 230 V, 184JM Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, Foot Mounted Mount, Continuous Duty

BaldorMFR # JML3608TSKU # YLSC52TN62OJ26K

EnclosureTEFC

Frame184JM

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Close Coupled Pump Motor - 5 hp, 3600 rpm, 1 ph, 230 V, 184JM Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, Foot Mounted Mount, Continuous Duty

Baldor JML3608T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame184JM

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency5.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage19.500 A @ 230.0 V · 22.000 A @ 208.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load83.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)19.5 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeG

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 14 AWG, A PH

Motor type3640LC

Mounting arrangementF1

Number of poles2

Overall length19.55 IN

Power factor99

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorTapped & Key

Rodent screenNone

Service factor1.00

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568145517

Motor CategoryClose Coupled Pump Motor

Motor Supply Voltage230 V

Base RPM3450 rpm

Warranty2 Year Warranty

Type Of BearingBall

Harmonization Code8501.40.6040

Weight97 lbs

ApplicationsPumping systems where only single phase power is available.

Additional DetailsHeavy-gauge steel frame construction, corrosion resistant finish, oversized ball bearings with locked construction to minimize axial shaft movement.

Mounting TypeFoot Mounted

Product TypePump Motors

Nameplate

Catalog numberJML3608T

Specification number36E510W914

Horsepower (HP)5

Voltage (V)230

Current (A)19.5

Speed (rpm)3450

Frame size184JM

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)G

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)83

Power factor99

Rating40C AMB-CONT

Drive end bearing6207

Opposite drive end bearing6205

EnclosureTEFC

Nameplate numberNP1256L

Performance

General characteristics· 230 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)0.38 Ω / 1.02 Ohms B Ph

Temperature rise at rated load (°C)93° C

Start configurationDOL

Breakdown torque26 lb-ft

Pull-up torque12.5 lb-ft

Locked-rotor torque15 lb-ft

Starting current (A)128 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	71	98	98	98	98	97	97
Efficiency %	0	66.4	81.5	83.9	83.9	82.1	79.2
Speed rpm	3595	3565	3539	3507	3472	3430	3389
Line amps A	2.3	6.5	10.4	14.9	19.6	24.7	29.9
Power W	376	1430	2313	3340	4409	5563	6838
Torque lb-ft	0	1.875	3.75	5.625	7.5	9.375	11.25

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·133 KB·English

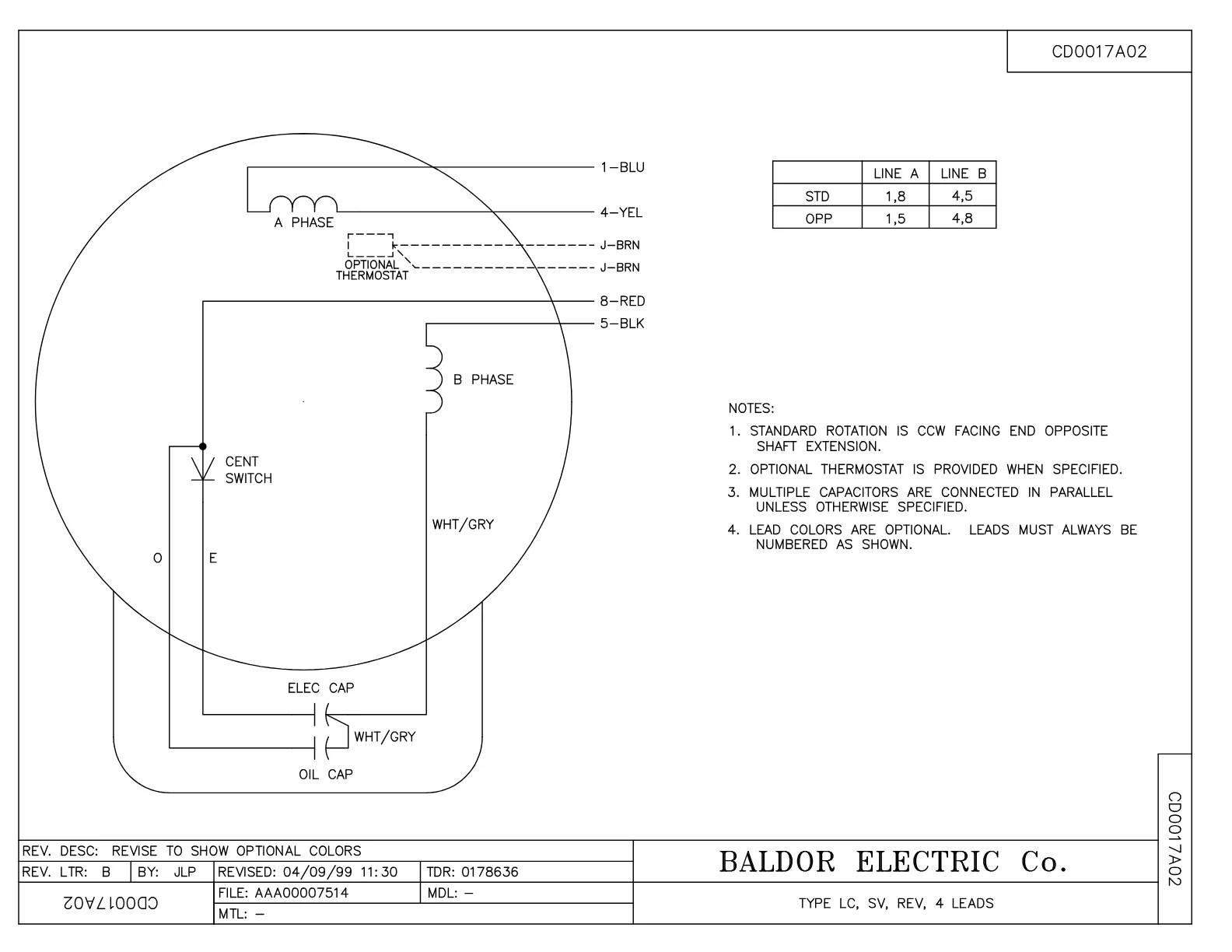

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·612 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor JML3608T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
36EP3104A01	FREP MACH W/GRSR, RAISED FH PADS	1 pcs	141 motors
37GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK LEXID	1 pcs	329 motors
35FN3002A04SP	EXFN, PLASTIC, 6.376 OD, .906 ID W/KEY	1 pcs	22 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
