Baldor JL3510A

Jet Pump Motor - 1 hp, 1800 rpm, 1 ph, 115/230 V, 56J Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Footless Mount, Continuous Duty

BaldorMFR # JL3510ASKU # YLSTRJJTU79TX65

EnclosureTEFC

Frame56J

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Jet Pump Motor - 1 hp, 1800 rpm, 1 ph, 115/230 V, 56J Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Footless Mount, Continuous Duty

Baldor JL3510A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56J

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage12.400 A @ 115.0 V · 6.200 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load67.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)6.2 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size4 @ 18 AWG, A&J

Motor type3528L

Mounting arrangementF1

Number of poles4

Overall length13.72 IN

Power factor68

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorExt Thread

Rodent screenNone

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingDo Not Use Eve-Not Valiid

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568218808

Motor CategoryJet Pump Motor

Motor Supply Voltage115/230 V

Base RPM1725 rpm

Harmonization Code8501.40.6040

Weight42 lbs

ApplicationsResidential and industrial pumps, swimming pool pumps, etc.

Additional DetailsDiecast aluminum end plates with machined steel bearing seat insert. Stainless steel shaft extension, and slotted non-drive end shaft. Catalog numbers ending with “A” have automatic thermal overload.

Mounting TypeFootless

Product TypePump Motors

Nameplate

Catalog numberJL3510A

Specification number35F083G240G2

Horsepower (HP)1

Voltage (V)115/230

Current (A)12.9/6.7

Speed (rpm)1750

Frame size56J

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)J

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)74

Power factor68

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1257L

Performance

General characteristics· 115 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)0.525 Ω / 1.17 Ohms B Ph

Temperature rise at rated load (°C)36° C

Start configurationDOL

Breakdown torque9.7 lb-ft

Pull-up torque9.3 lb-ft

Locked-rotor torque16.5 lb-ft

Starting current (A)96.2 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	15	33	48	60	69	76	80
Efficiency %	0	53.1	67.5	72.9	74.8	74.6	72.8
Speed rpm	1798	1786	1775	1763	1750	1735	1714
Line amps A	9.53	9.3	9.98	11.06	12.51	14.28	16.82
Power W	162	351	554	769	998	1251	1542
Torque lb-ft	0	0.74	1.48	2.24	3.01	3.79	4.61

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·120 KB·English

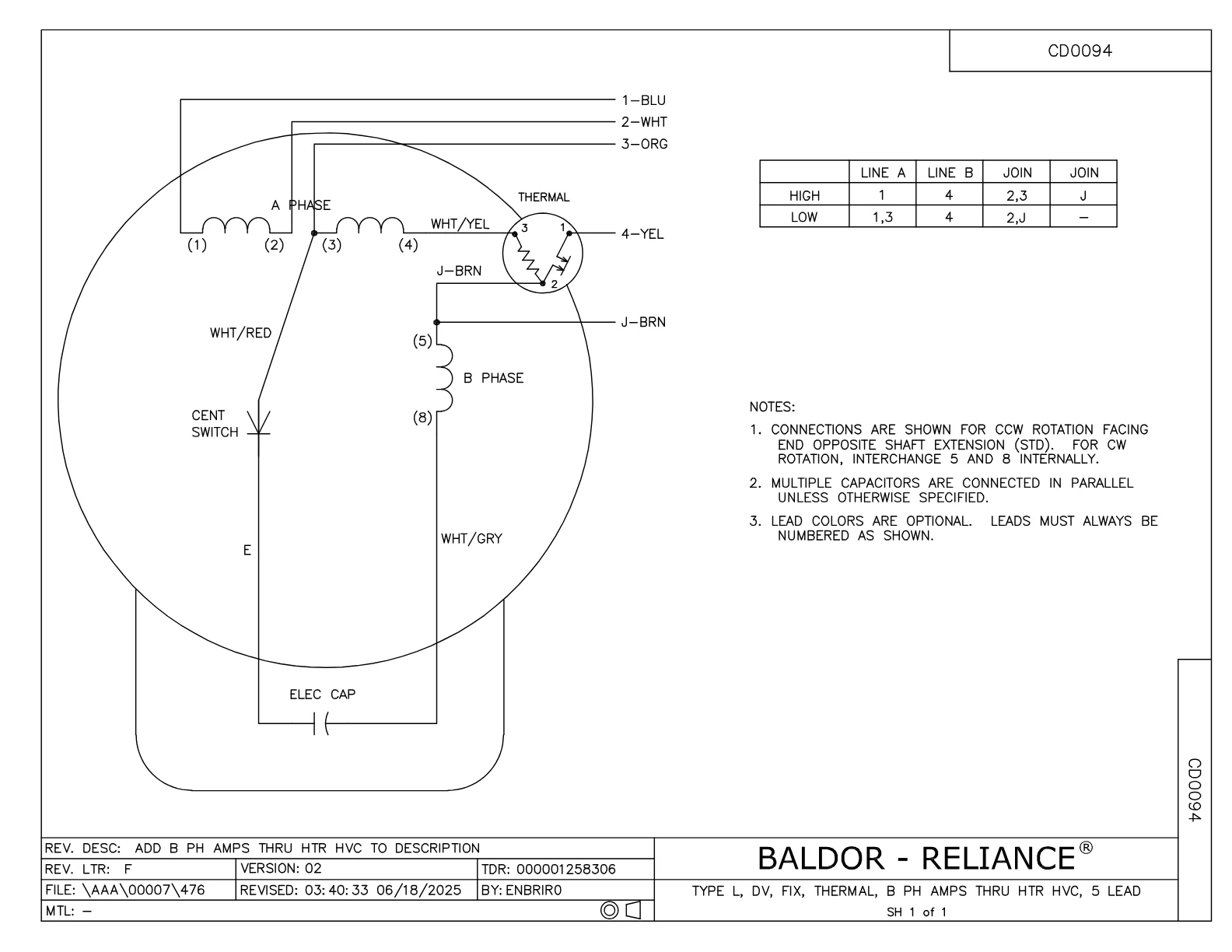

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·605 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor JL3510A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	1 pcs	103 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
