Baldor JL3501A

Baldor-Reliance JL3501A is a general purpose AC electric motor rated 0.33 HP, 1725 rpm, single phase 115/230 V, 60 Hz, with a 56J frame and TEFC enclosure.

BaldorMFR # JL3501ASKU # YLSZJ2JTB0GIP0

EnclosureTEFC

Frame56J

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.330 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance JL3501A is a general purpose AC electric motor rated 0.33 HP, 1725 rpm, single phase 115/230 V, 60 Hz, with a 56J frame and TEFC enclosure.

Baldor JL3501A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56J

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.330 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage3.000 A @ 230.0 V · 3.600 A @ 208.0 V · 6.000 A @ 115.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load60.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size5 @ 18 AWG

Motor type3414L

Mounting arrangementF1

Number of poles4

Overall length11.85 IN

Power factor60

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorExt Thread

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.35

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationES

Winding thermal 2None

UPC781568217993

Nameplate

Catalog numberJL3501A

Specification number34-3099-5597

Horsepower (HP).33

Voltage (V)115/230

Current (A)6/3

Speed (rpm)1725

Frame size56J

Frequency (Hz)60

Phase1

Service factor1.35

Code letter (locked rotor kVA)L

NEMA design letterN

Insulation classB

NEMA nominal efficiency (%)60

Power factor60

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 0.33 hp

Line-to-line resistance at 25 °C (ohms)6.32 Ω / 4.93 Ohms B Ph

Temperature rise at rated load (°C)59° C

Temperature rise at service factor load (°C)73° C

Start configurationDOL

Breakdown torque2.95 lb-ft

Pull-up torque2.55 lb-ft

Locked-rotor torque3.6 lb-ft

Starting current (A)13 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	22	31	41	52	60	67	73	71
Efficiency %	0	33	41	52	60	61.5	61.5	61.5
Speed rpm	1795	1780	1760	1745	1725	1705	1680	1690
Line amps A	2.6	2.6	2.7	2.8	3	3.3	3.7	3.4
Power W	132	192	305	357	408	492	582	0
Torque lb-ft	0	0.25	0.5	0.75	1	1.25	1.5	0

Documents & CAD

For this product 3

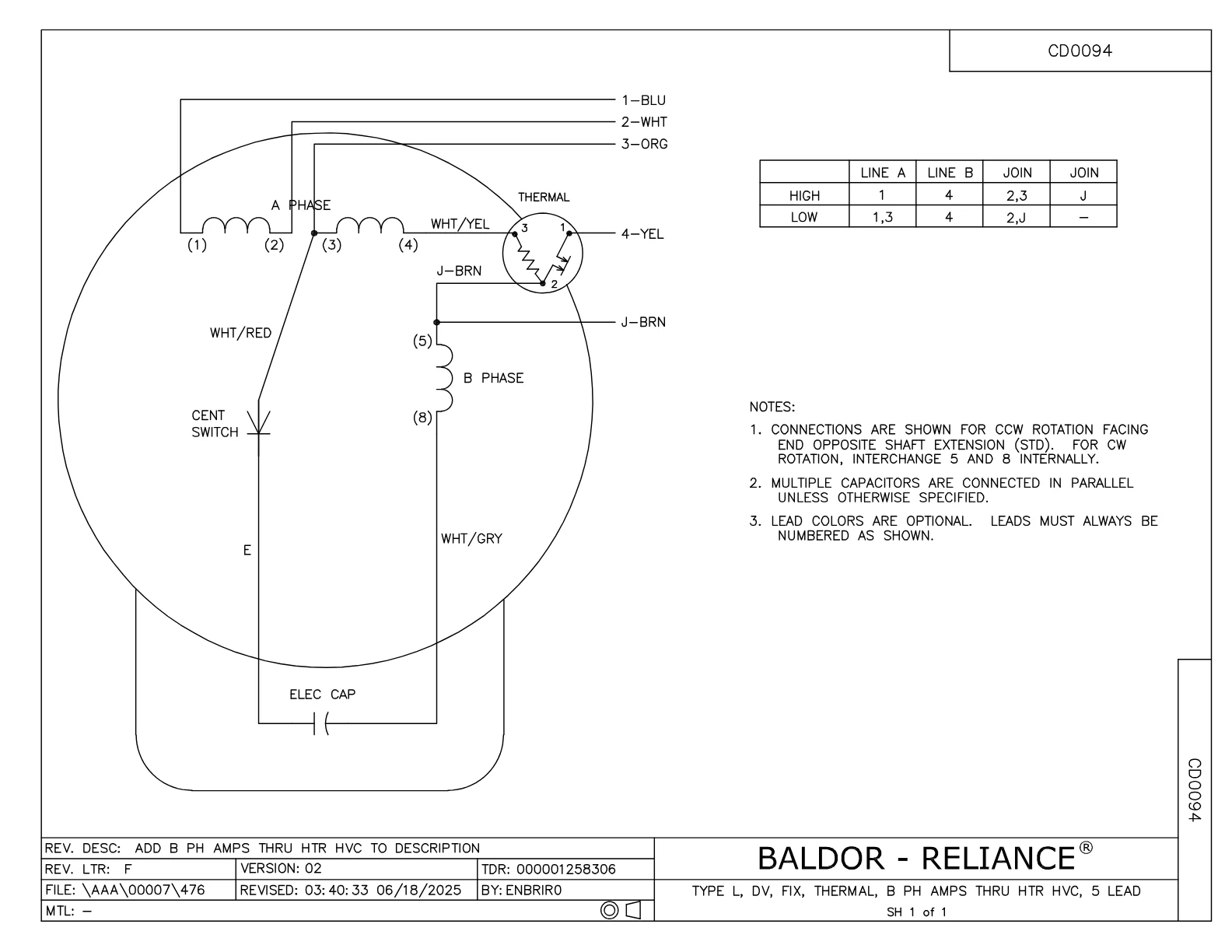

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·581 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·88 KB·English

CAD Files 13

3D Model

2D Drawing

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor JL3501A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1189A02SP	61B2D120189NNBA ELEC CAP, 189-227MFD, 12	1 pcs	37 motors
34EP3102A01SP	FR ENDPLATE, MACH	1 pcs	179 motors
34CB4800SP	CAPACITOR COVER, STAMPED PRIMED	1 pcs	79 motors
34EP3300A24SP	PU ENDPLATE, MACH	1 pcs	100 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
34FH4002A03SP	IEC FH NO GREASER W/.88 DIA SHAFT HOLE,	1 pcs	30 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors

Accessories 1

Genuine accessories that can be used with the Baldor JL3501A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
