Baldor JL1323A

Baldor-Reliance JL1323A is a general purpose AC electric motor rated 3 HP, 3450 rpm, single phase 230 V, 60 Hz, with a 56J frame and open enclosure.

BaldorMFR # JL1323ASKU # YLSAAIJI441MH

EnclosureOPEN

Frame56J

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency3.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance JL1323A is a general purpose AC electric motor rated 3 HP, 3450 rpm, single phase 230 V, 60 Hz, with a 56J frame and open enclosure.

Baldor JL1323A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame56J

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency3.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage13.000 A @ 230.0 V

Design codeL

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load82.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)13.0 a

Front face codeTerminal Panel

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitTerminal Panel

Motor lead terminationNone

Motor lead quantity/wire size2 @ 14 AWG, A PH

Motor type3535LC

Mounting arrangementF1

Number of poles2

Overall length14.11 IN

Power factor93

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorExt Thread

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568112847

Nameplate

Catalog numberJL1323A

Specification number35H992Y105

Horsepower (HP)3

Voltage (V)230

Current (A)13

Speed (rpm)3450

Frame size56J

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)K

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)82.5

Power factor93

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 3 hp

Line-to-line resistance at 25 °C (ohms)0.617 Ω / 2.54 Ohms B Ph

Temperature rise at rated load (°C)49° C

Temperature rise at service factor load (°C)56° C

Start configurationDOL

Breakdown torque15.5 lb-ft

Pull-up torque13 lb-ft

Locked-rotor torque13 lb-ft

Starting current (A)108 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	48	61	80	87	91	92	93	92
Efficiency %	0	68.8	78.5	82.1	82.5	82.6	81	82.6
Speed rpm	3590	3578	3556	3535	3517	3487	3450	3499
Line amps A	5	6	7.9	10.3	13	16	19	14.8
Power W	552	835	1448	2067	2725	3377	4084	3116
Torque lb-ft	0	1.13	2.25	3.38	4.5	5.63	6.75	5.18

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·109 KB·English

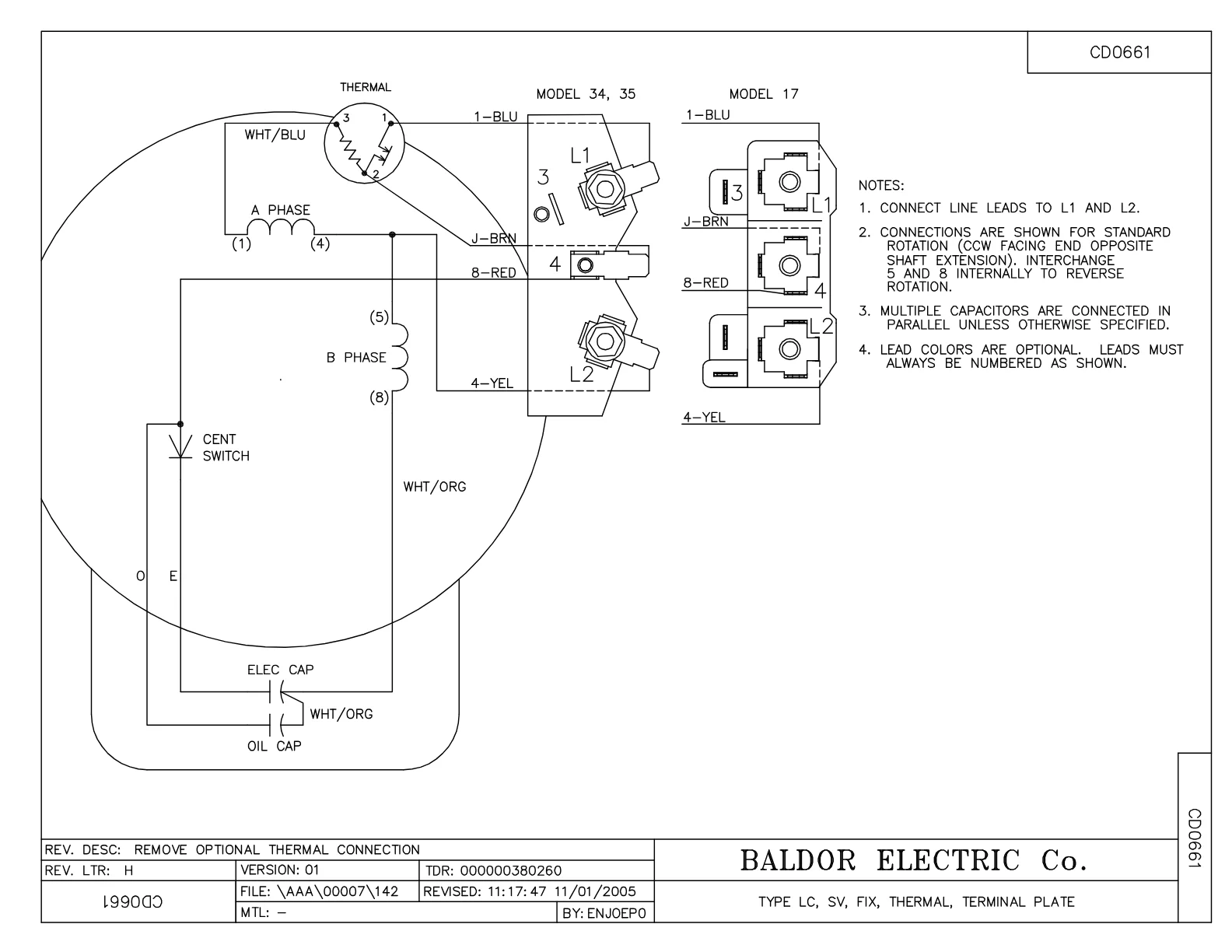

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·595 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor JL1323A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3020F12SP	CAPACITORS 20 MFD 370 VAC	1 pcs	38 motors
EC1216C06SP	ELEC CAP, 216-259 MFD, 250V, 2.06D X 4.	1 pcs	45 motors
35EP3202A02SP	FR ENDPLATE, MACH	1 pcs	3 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
