Baldor JL1301A

Jet Pump Motor - 1/3 hp, 1800 rpm, 1 ph, 115/230 V, 56J Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1725 rpm Base, Footless Mount, Continuous Duty

BaldorMFR # JL1301ASKU # YLSXST7HZ3FCJCI

EnclosureODP

Frame56J

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.330 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Jet Pump Motor - 1/3 hp, 1800 rpm, 1 ph, 115/230 V, 56J Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1725 rpm Base, Footless Mount, Continuous Duty

Baldor JL1301A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame56J

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.330 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 115.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage6.000 A @ 115.0 V · 3.600 A @ 208.0 V · 3.000 A @ 230.0 V

Design codeN

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load60.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.0 a

Front face codeTerminal Panel

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

IP ratingNONE

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitTerminal Panel Or Lead Hole

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3414L

Mounting arrangementF1

Number of poles4

Overall length11.89 IN

Power factor60

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorExt Thread

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.35

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationFixed Opposite Standard

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568217870

Motor CategoryJet Pump Motor

Motor Supply Voltage115/230 V

Base RPM1725 rpm

Harmonization Code8501.40.4040

Weight23 lbs

ApplicationsResidential and industrial pumps, swimming pool pumps, etc.

Additional DetailsDiecast aluminum end plates with machined steel bearing seat insert, drip cover, and stainless steel shaft extension on 56J frames. Catalog numbers ending with “A” have automatic thermal overload.

Mounting TypeFootless

Product TypePump Motors

Nameplate

Catalog numberJL1301A

Specification number34F036-5599

Horsepower (HP).33

Voltage (V)115/230

Current (A)6/3

Speed (rpm)1725

Frame size56J

Frequency (Hz)60

Phase1

Service factor1.35

Code letter (locked rotor kVA)L

NEMA design letterN

Insulation classB

NEMA nominal efficiency (%)60

Power factor60

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 0.33 hp

Line-to-line resistance at 25 °C (ohms)6.32 Ω / 4.93 Ohms B Ph

Temperature rise at rated load (°C)43° C

Temperature rise at service factor load (°C)53° C

Start configurationDOL

Breakdown torque2.95 lb-ft

Pull-up torque2.55 lb-ft

Locked-rotor torque3.6 lb-ft

Starting current (A)13 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	20	31	41	51	60	66	72	70
Efficiency %	0	34	49	56	60	62	63	63
Speed rpm	1795	1783	1765	1745	1730	1710	1680	1695
Line amps A	2.6	2.6	2.7	2.8	3	3.3	3.7	3.4
Power W	120	186	256	332	410	490	568	0
Torque lb-ft	0	0.25	0.5	0.75	1	1.25	1.5	0

Documents & CAD

For this product 3

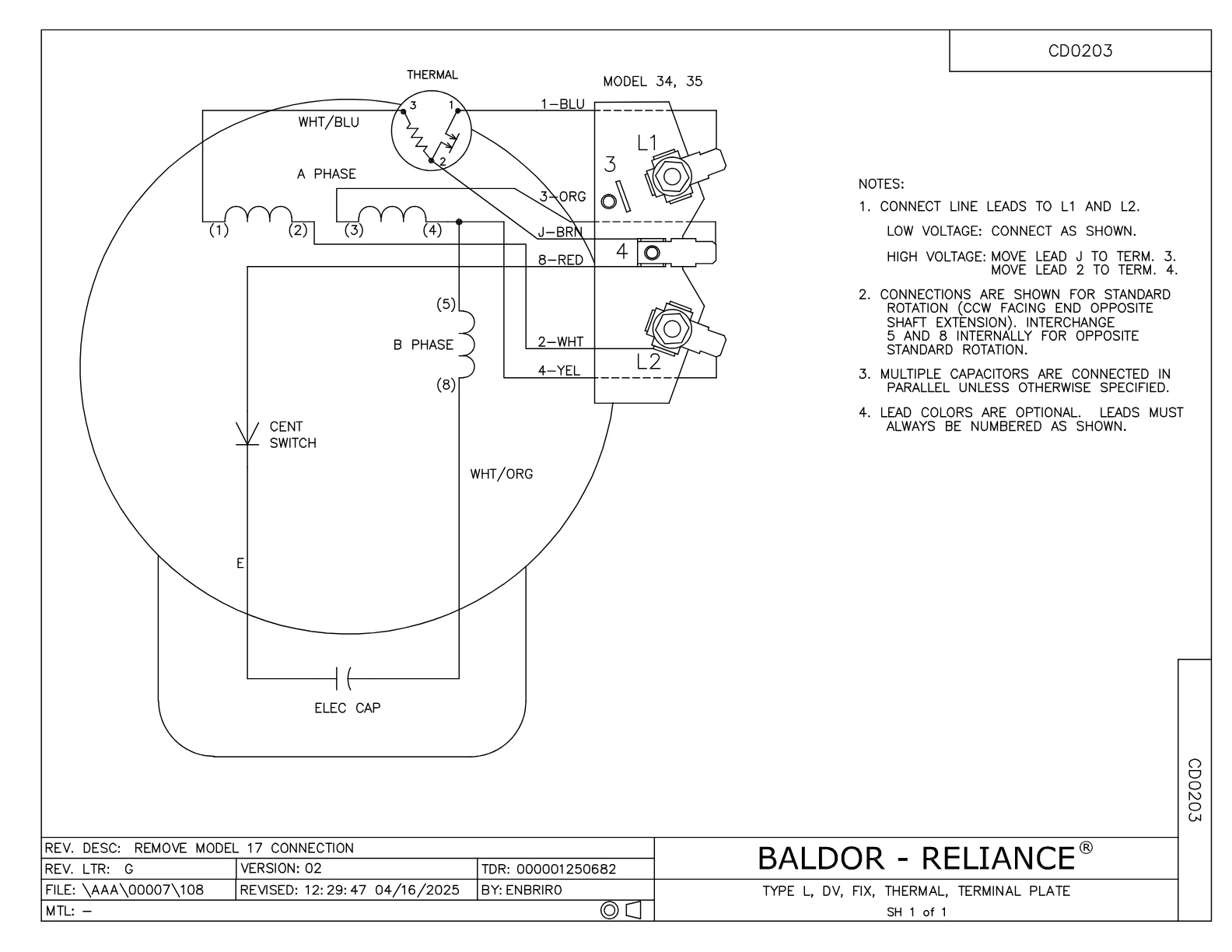

Wiring DiagramWiring DiagramPDF·48 KB·English

DatasheetDatasheetPDF·585 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·93 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor JL1301A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1189A02SP	61B2D120189NNBA ELEC CAP, 189-227MFD, 12	1 pcs	37 motors
34CB4800SP	CAPACITOR COVER, STAMPED PRIMED	1 pcs	79 motors
34EP3401A01SP	PU ENDPLATE, MACH	1 pcs	36 motors
HW4600B39SP	V-RING SLINGER 0.550 X 0.790 X .18 VITON	1 pcs	142 motors
34CB4501SP	TERMINAL BOX LID, STAMPED X (PLATED)	1 pcs	95 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
