Baldor IDXM7566T-C

Explosion Proof / Hazardous Location - Inverter Duty Motor - 60 hp, 1800 rpm, 3 ph, 230/460 V, 364T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Continuous Duty

BaldorMFR # IDXM7566T-CSKU # YLSJOET69M1J8P2

EnclosureTEFC

Frame364T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Explosion Proof / Hazardous Location - Inverter Duty Motor - 60 hp, 1800 rpm, 3 ph, 230/460 V, 364T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Continuous Duty

Baldor IDXM7566T-C

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame364T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupCLI GP C,D; CLII GP F,G

Hazardous area divisionDivision I

Agency approvalsUL · CSA · CCSAUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Constant torque speed range15-60

Current at voltage136.000 A @ 230.0 V · 68.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load95.0 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)68.0 a

Heater indicatorNo Heater

Insulation classB

Inverter codeInverter Ready

KVA codeG

Lifting lugsStandard Lifting Lugs

Maximum speed (rpm)3600 rpm

Motor lead quantity/wire size3 @ 4 AWG

Motor typeA36062M

Mounting arrangementF1

Number of poles4

Overall length33.44 IN

Power factor87

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.00

Shaft diameter2.374 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1780 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Hazardous area temperature codeT3C

UPC781568728871

Motor CategoryInverter Duty Motor - Explosion Proof / Hazardous Location

Motor Supply Voltage230/460 V

Mounting TypeFoot

Harmonization Code8501.52.8040

Weight965 lbs

ApplicationsDesigned for Variable Speed, Foot or Flanged mounted applications where hazardous fumes are present requiring Div 1 UL listed and/or CSA approved enclosures.

Additional DetailsUL and CSA approved for hazardous locations. Division 1, Class I, Group C & D, Class II, Groups F & G, Temperature Code T3C (160°C) 4:1 CT, 10:1 VT. The premium efficient electrical design features Class F insulation system that meets the requirements of NEMA MG1 Part 31.4.4.2. Motor has a 1.0 service factor on inverter power and a 1.15 service factor on sine wave power. Motor winding design includes thermostats. These Division 1 motors are built with rugged all cast iron construction. The cast iron conduit box is threaded on to the motor frame and has a threaded lead input opening.

Product TypeInverter Vector Duty Motors

Nameplate

Nameplate numberNP2496L

Documents & CAD

For this product 4

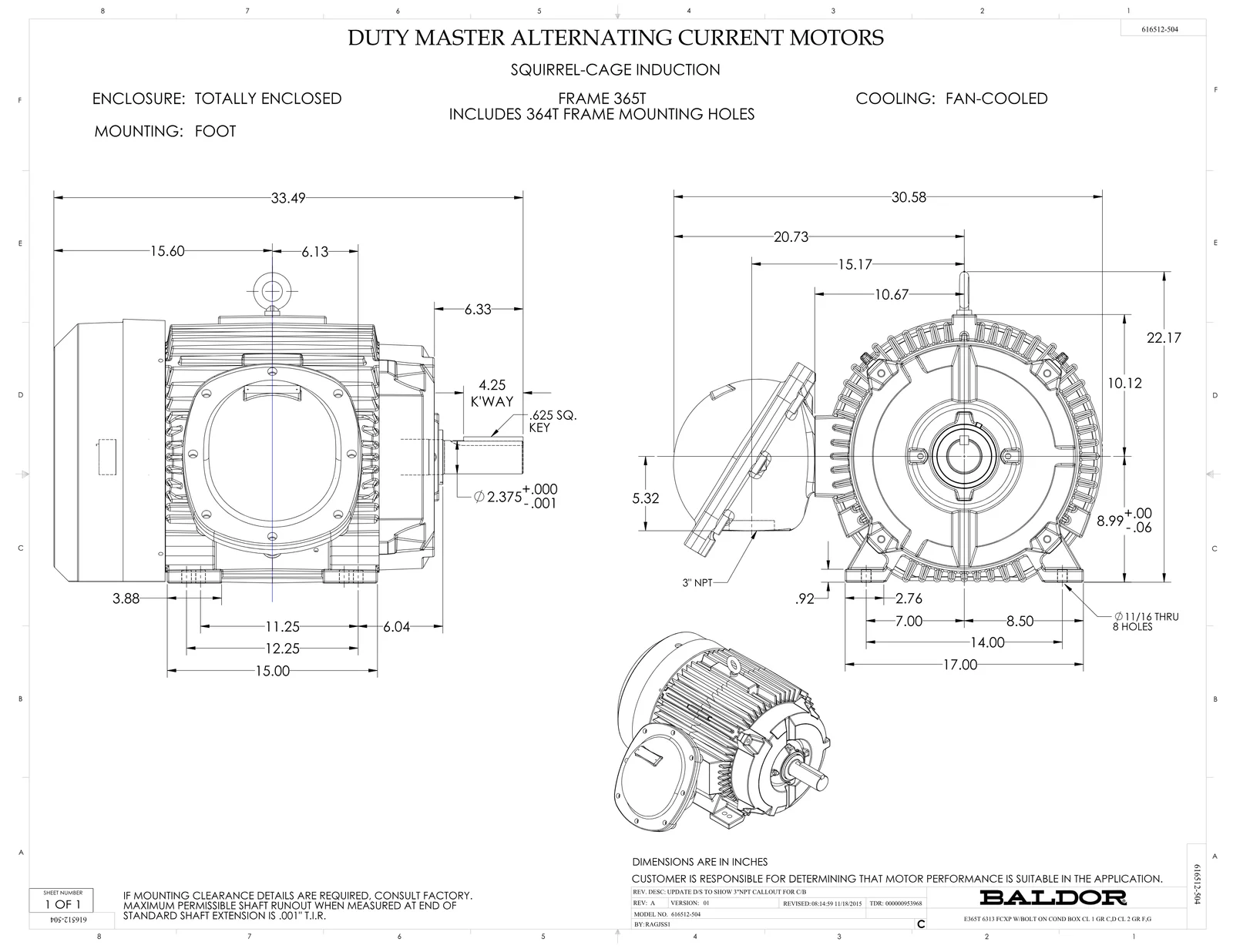

Dimension DrawingDimension SheetPDF·258 KB·English

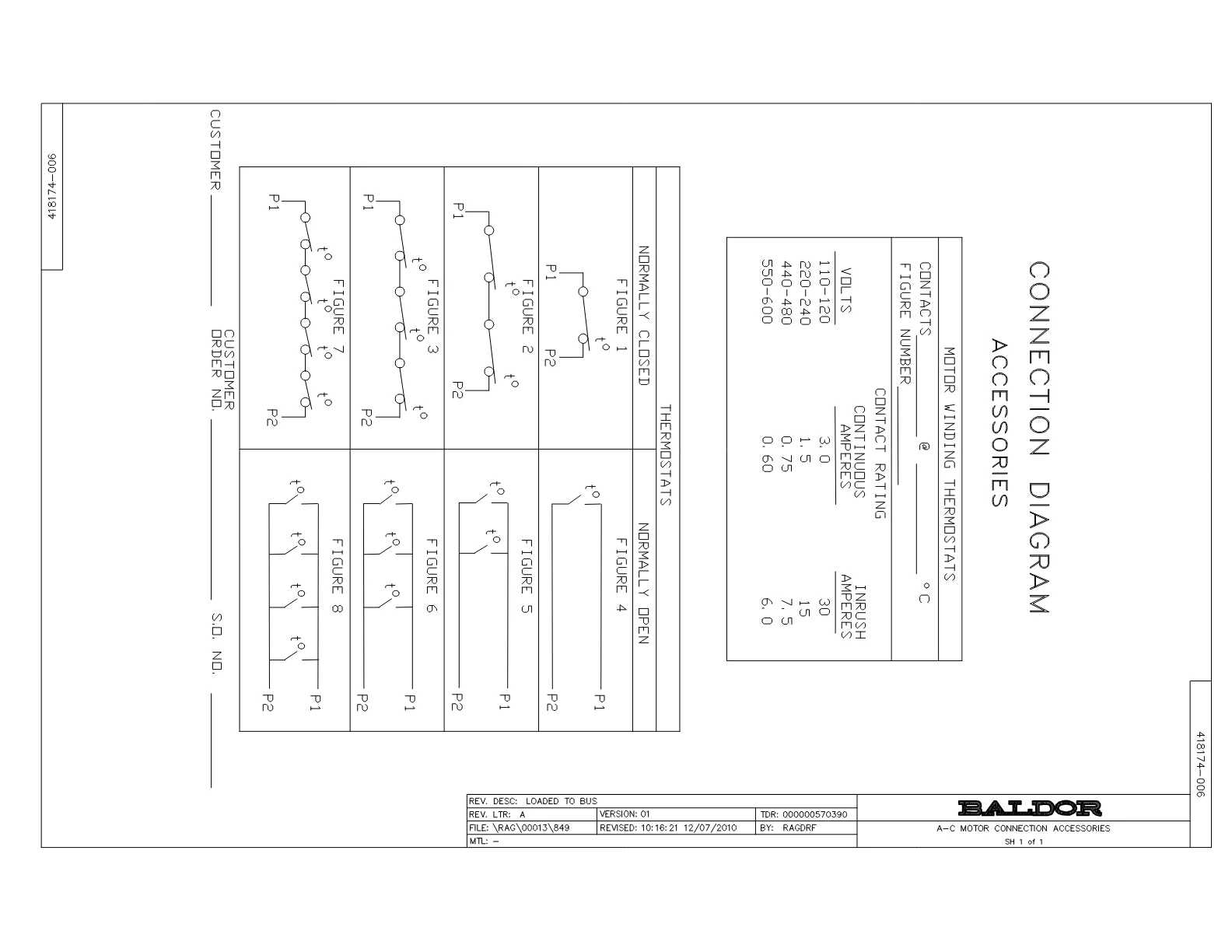

Wiring DiagramWiring DiagramPDF·35 KB·English

DatasheetDatasheetPDF·792 KB·English

Performance CurvePerformance CurvePDF·112 KB·English

Series documents 3· shared by this product series

Wiring DiagramWiring DiagramPDF·28 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor IDXM7566T-C motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
078559001A	+FANCV - 360	1 pcs	93 motors
078548001K	FAN KB 100/30 (70) 360	1 pcs	14 motors
034017012AB	LCKW 1/4 STD. PLATED 034017012AF	4 pcs	112 motors
034017014AB	LCKW 3/8 STD. PLATED	8 pcs	376 motors
