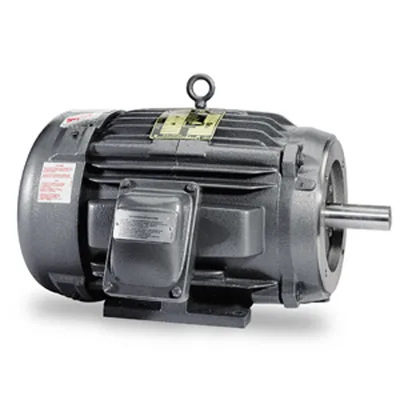

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor IDXM7544T

Explosion Proof / Hazardous Location - Inverter Duty Motor - 5 hp, 1800 rpm, 3 ph, 230/460 V, 213TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1760 rpm Base, C-Face / Foot Mount, Continuous Duty

BaldorMFR # IDXM7544TSKU # YLS018P8ABKWRW0

Motor Phase3 ph

Motor Horsepower5 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage230/460 V

Frame Size213TC

Enclosure TypeTEFC (Totally Enclosed Fan Cooled)

Have questions?Chat on WhatsApp

About This Product

Baldor IDXM7544T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryInverter Duty Motor - Explosion Proof / Hazardous Location

Motor Phase3 ph

Motor Horsepower5 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage230/460 V

Frame Size213TC

Enclosure TypeTEFC (Totally Enclosed Fan Cooled)

Frequency Rating60 Hz

Duty Condition TypeContinuous Duty

Base RPM1760 rpm

Mounting TypeC-Face / Foot

Thermal ProtectionThermostat

Full Load Current6.30 A

Full Load Efficiency90.20 %

Amps @ Voltage6.7 A @ 460 V; 13.4 A @ 230 V

Volts @ Frequency230 V @ 60 Hz; 460 V @ 60 Hz

Shaft Diameter1.3750 in

Overall Length C Dimension20.65 in

Service Factor1.00

Frame MaterialCast Iron

Insulation ClassF

IP Rating44

Standards MetCSA, UL, UR

Harmonization Code8501.52.4000

Weight212 lbs

ApplicationsDesigned for Variable Speed, Flanged mounted applications where hazardous fumes are present requiring Div 1 UL listed and/or CSA approved enclosures.

Additional DetailsUL and CSA approved for hazardous locations. Division 1, Class I, Group D only, Temperature Code T2B (260°C). Rugged Cast Iron construction. Class F insulation, 1.0 service factor and normally closed thermostats. All 4 Pole ratings are constant horsepower 60 to 90 Hz. Not encoder adaptable. Meets NEMA MG 1, Part 31.

Product TypeInverter Vector Duty Motors
