How can I get a price quote for Baldor IDXCM7566T-C?

You can request a fast quote for Baldor IDXCM7566T-C from Yılsa Engineering. Reference part number YLSBE2S2B1T8O5V. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor IDXCM7566T-C in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor IDXCM7566T-C genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor IDXCM7566T-C?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

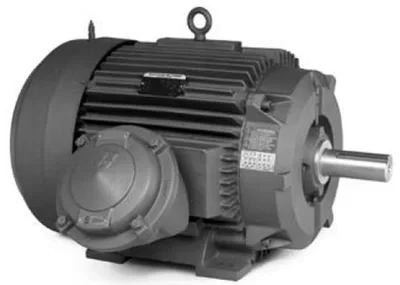

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor IDXCM7566T-C

Explosion Proof / Hazardous Location - Inverter Duty Motor - 60 hp, 1800 rpm, 3 ph, 230/460 V, 364TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, C-Face / Foot Mount, Continuous Duty

BaldorMFR # IDXCM7566T-CSKU # YLSBE2S2B1T8O5V

Motor Phase3 ph

Motor Horsepower60 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage230/460 V

Frame Size364TC

Enclosure TypeTEFC (Totally Enclosed Fan Cooled)

Have questions?Chat on WhatsApp

About This Product

Explosion Proof / Hazardous Location - Inverter Duty Motor - 60 hp, 1800 rpm, 3 ph, 230/460 V, 364TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, C-Face / Foot Mount, Continuous Duty

Baldor IDXCM7566T-C

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryInverter Duty Motor - Explosion Proof / Hazardous Location

Motor Phase3 ph

Motor Horsepower60 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage230/460 V

Frame Size364TC

Enclosure TypeTEFC (Totally Enclosed Fan Cooled)

Frequency Rating60 Hz

Duty Condition TypeContinuous Duty

Mounting TypeC-Face / Foot

Full Load Efficiency95.00 %

Volts @ Frequency230 V @ 60 Hz; 460 V @ 60 Hz

Shaft Diameter2.3750 in

Overall Length C Dimension33.44 in

Service Factor1.00

Frame MaterialCast Iron

Insulation ClassB

Standards MetCCSA US, CSA, CSA EEV, UL

Harmonization Code8501.52.8040

Weight910 lbs

ApplicationsDesigned for Variable Speed, Foot or Flanged mounted applications where hazardous fumes are present requiring Div 1 UL listed and/or CSA approved enclosures.

Additional DetailsUL and CSA approved for hazardous locations. Division 1, Class I, Group C & D, Class II, Groups F & G, Temperature Code T3C (160°C) 4:1 CT, 10:1 VT. The premium efficient electrical design features Class F insulation system that meets the requirements of NEMA MG1 Part 31.4.4.2. Motor has a 1.0 service factor on inverter power and a 1.15 service factor on sine wave power. Motor winding design includes thermostats. These Division 1 motors are built with rugged all cast iron construction. The cast iron conduit box is threaded on to the motor frame and has a threaded lead input opening.

Product TypeInverter Vector Duty Motors
