Baldor IDWNM3609T

Baldor-Reliance IDWNM3609T is a 2 HP, 1760 rpm, 3-phase 230/460 V, 60 Hz, 182TC frame wash down AC electric motor with a totally enclosed non-ventilated (TENV) enclosure.

BaldorMFR # IDWNM3609TSKU # YLSJJS4BOCWBOZZ

EnclosureTENV

Frame182TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency2.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance IDWNM3609T is a 2 HP, 1760 rpm, 3-phase 230/460 V, 60 Hz, 182TC frame wash down AC electric motor with a totally enclosed non-ventilated (TENV) enclosure.

Baldor IDWNM3609T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame182TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency2.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCSA · CSA EEV · NEMA_PREMIUM · UR

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage5.800 A @ 230.0 V · 2.900 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load88.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.9 a

Front face codeEncoder/Feedback Device

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Duty

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)6000 rpm

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 16 AWG

Motor type3628M

Mounting arrangementF1

Number of poles4

Overall length17.78 IN

Power factor73

Product familyWash Down

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS NON-COMPLIANT

Service factor1.00

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1760 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568199701

Nameplate

Catalog numberIDWNM3609T

Specification number36J565R049G1

Frame size182TC

Horsepower (HP)2 TE

Voltage (V)230/460

Magnetizing current (A)3.4/1.7

Full load current (A)5.8/2.9

Speed (rpm)1760

Maximum speed (rpm)6000

Frequency (Hz)60

Phase3

Insulation classH

Service factor1.00

NEMA design letterB

SL HZ1.3

NEMA nominal efficiency (%)88.5

Inertia (WK²)0.26

Rating40C AMB-CONT

Drive end bearing6206

Opposite drive end bearing6205

CC number010A

Nameplate numberNP3956L

Performance

General characteristics· 460 V, 60 Hz, 2 hp

Line-to-line resistance at 25 °C (ohms)5.6879 Ω

Temperature rise at rated load (°C)59° C

Start configurationDOL

Breakdown torque23.2 lb-ft

Pull-up torque13.2 lb-ft

Locked-rotor torque14.9 lb-ft

Starting current (A)22.3 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	7	33	53	65	73	78	81
Efficiency %	0	79.9	86.9	88.7	89	88.5	87.7
Speed rpm	1798.9	1790.3	1781.4	1772.5	1762	1751	1739
Line amps A	1.7	1.82	2.08	2.43	2.88	3.4	3.96
Power W	90.1	482	872	1258	1681	2115	2563
Torque lb-ft	0	1.51	2.99	4.43	5.98	7.52	9.09

Documents & CAD

For this product 4

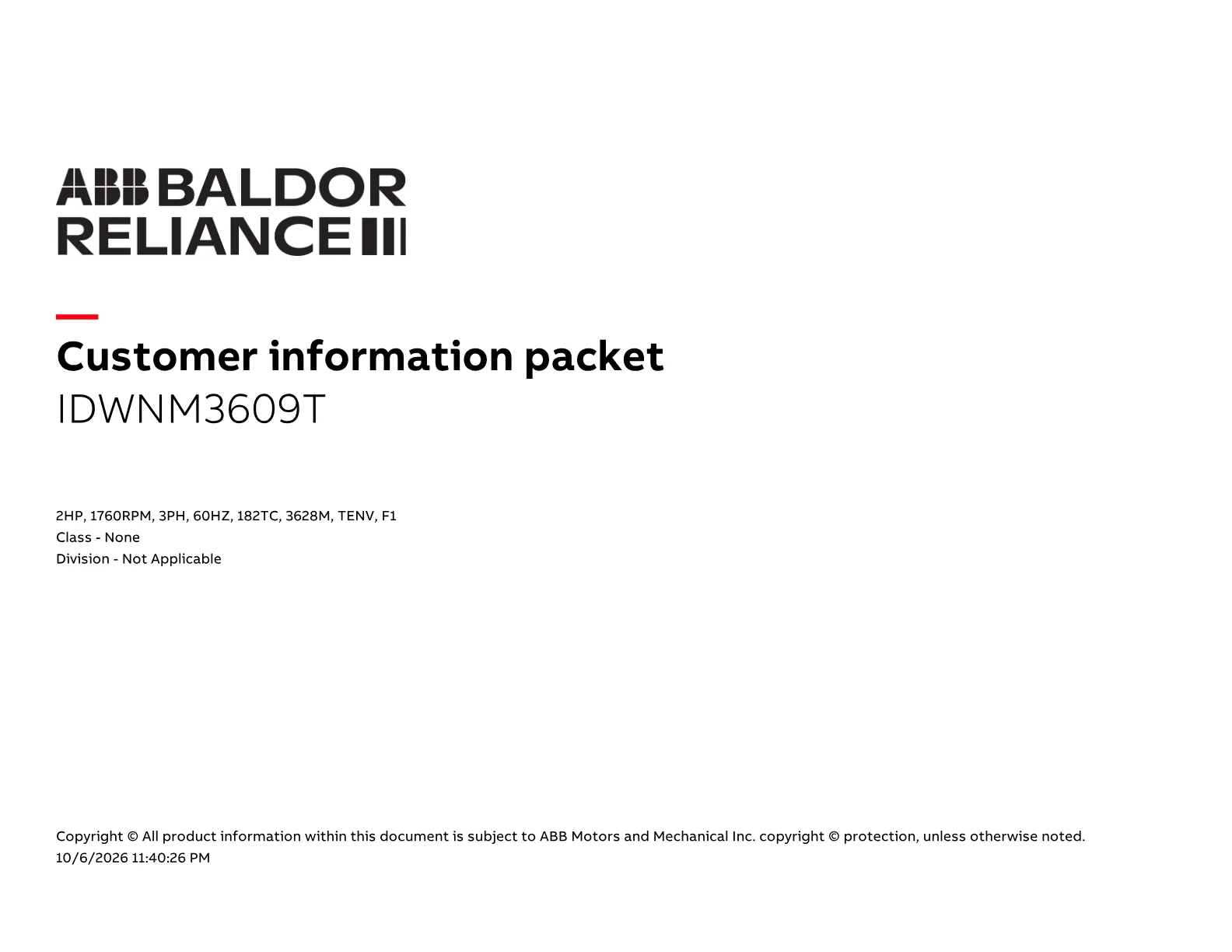

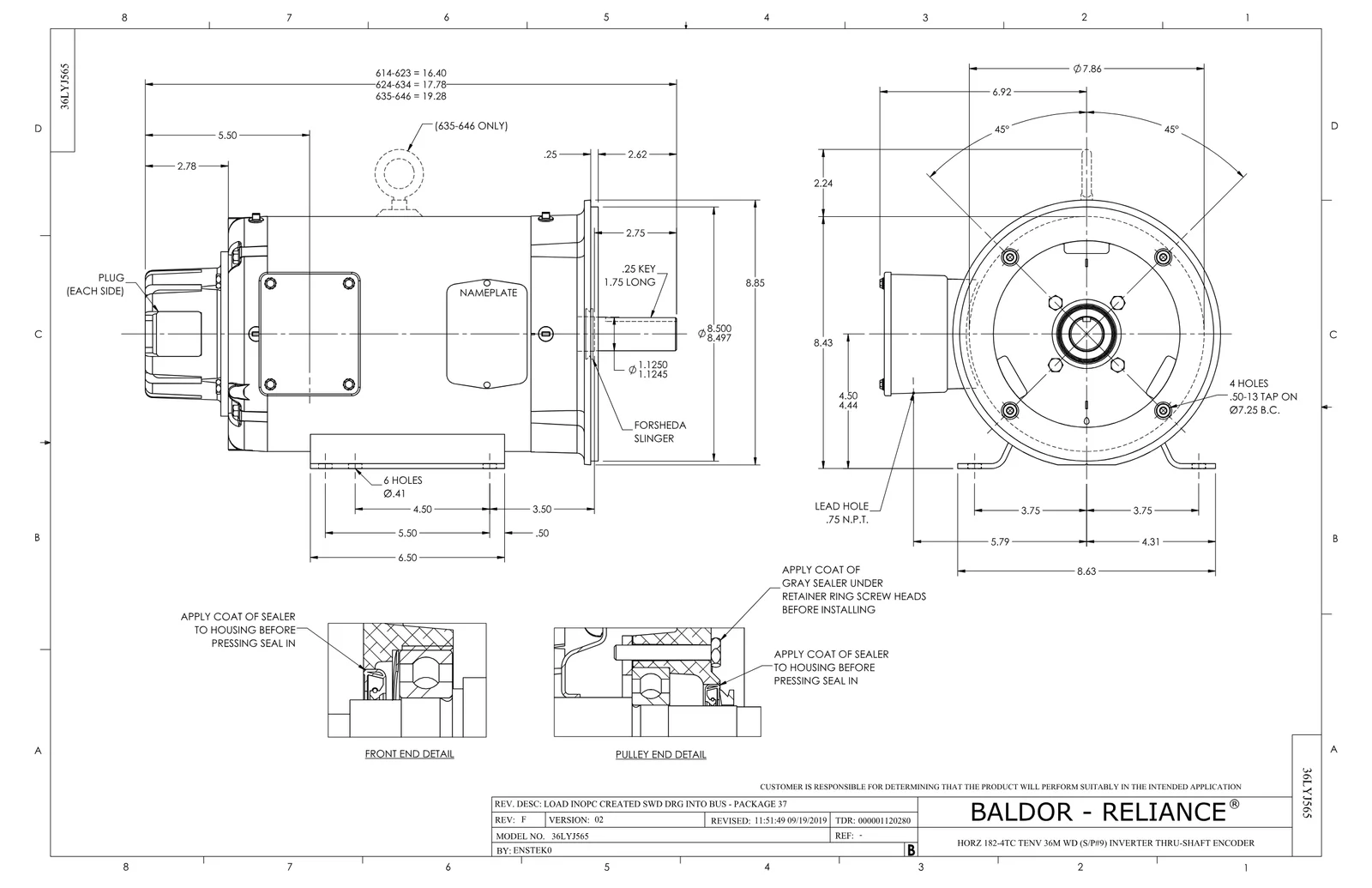

Dimension DrawingDimension SheetPDF·112 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·599 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor IDWNM3609T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
37GS3010SP	1/16"WHITE LID GASKET	1 pcs	69 motors
HW4600B36SP	V-RING SLINGER 1.188 X 1.380 X .24 VITON	1 pcs	252 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
