Baldor IDWNM22938T

Baldor-Reliance IDWNM22938T is a 10 HP, 1765 rpm, 3-phase 230/460 V, 60 Hz, 254TC frame wash down AC electric motor with a totally enclosed non-ventilated (TENV) enclosure.

BaldorMFR # IDWNM22938TSKU # YLSNNYQJEIZEAY

EnclosureTENV

Frame254TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency10.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance IDWNM22938T is a 10 HP, 1765 rpm, 3-phase 230/460 V, 60 Hz, 254TC frame wash down AC electric motor with a totally enclosed non-ventilated (TENV) enclosure.

Baldor IDWNM22938T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame254TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency10.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsUR · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage12.000 A @ 460.0 V · 24.000 A @ 230.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load91.7 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)12.0 a

Front face codeEncoder/Feedback Device

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Duty

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)5000 rpm

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 12 AWG

Motor type3956M

Mounting arrangementF1

Number of poles4

Overall length23.99 IN

Power factor85

Product familyWash Down

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS NON-COMPLIANT

Service factor1.00

Shaft diameter1.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1765 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568202173

Nameplate

Catalog numberIDWNM22938T

Specification number39R099W632G1

Frame size254TC

Horsepower (HP)10 TE

Voltage (V)230/460

Magnetizing current (A)8.8/4.4

Full load current (A)24/12

Speed (rpm)1765

Maximum speed (rpm)5000

Frequency (Hz)60

Phase3

Insulation classH

Service factor1.00

NEMA design letterB

SL HZ1.22

NEMA nominal efficiency (%)91.7

Inertia (WK²)2.44

Rating40C AMB-CONT

Drive end bearing6309

Opposite drive end bearing6208

CC number010A

Nameplate numberNP1162L

Performance

General characteristics· 460 V, 60 Hz, 10 hp

Line-to-line resistance at 25 °C (ohms)0.744 Ω

Temperature rise at rated load (°C)89° C

Start configurationDOL

Breakdown torque114 lb-ft

Pull-up torque41.5 lb-ft

Locked-rotor torque58 lb-ft

Starting current (A)87 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	7	52	72	81	85	86	87
Efficiency %	0	87.7	91.7	92.4	92	91.2	90.1
Speed rpm	1799	1791	1783	1774	1764	1753	1741
Line amps A	4.4	5.3	7.2	9.5	12	14.9	17.9
Power W	245	2176	4143	6136	8170	10238	12351
Torque lb-ft	0	7.5	15	22.5	30	37.5	45

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

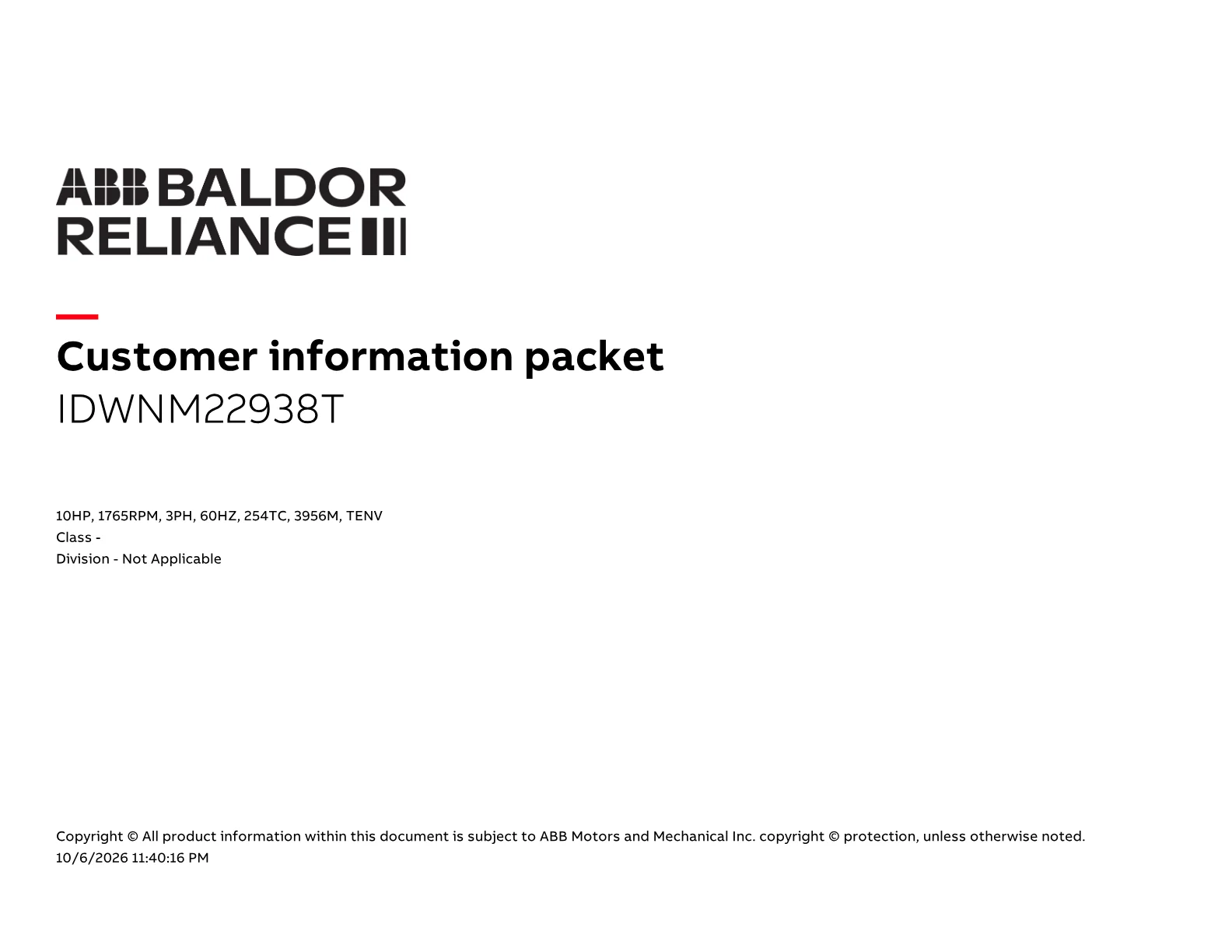

DatasheetDatasheetPDF·636 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·150 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 2
