Baldor IDVSWDM3546

Washdown Inverter Duty Motor (Paint Free) - 1 hp, 1800 rpm, 3 ph, 230/460 V, 56C Frame, TENV (Totally Enclosed Non-Ventilated) Enclosure, 60 Hz, 1770 rpm Base, C-Face / Footless Mount

BaldorMFR # IDVSWDM3546SKU # YLSX18VGS2BRBTO

EnclosureTENV

Frame56C

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Washdown Inverter Duty Motor (Paint Free) - 1 hp, 1800 rpm, 3 ph, 230/460 V, 56C Frame, TENV (Totally Enclosed Non-Ventilated) Enclosure, 60 Hz, 1770 rpm Base, C-Face / Footless Mount

Features and Benefits

Includes all the advantages of our standard "Paint Free" washdown duty motors
Specifically designed and built for use on variable frequency drives
Meets NEMA MG 1, Part 31
Standard efficiency
Applications: Conveyors, Pumps and other equipment in food processing and other severe environments where motors are "washed" on a regular basis. For adjustable speed applications not requiring full torque at zero speed

Baldor IDVSWDM3546

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame56C

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCSA · UR

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage3.300 A @ 208.0 V · 3.340 A @ 230.0 V · 1.670 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.7 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Ready

KVA codeM

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)6000 rpm

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 18 AWG

Motor type3522M

Mounting arrangementF1

Number of poles4

Overall length12.06 IN

Power factor66

Product familyWash Down Paint Free

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.00

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1770 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568301081

Motor CategoryInverter Duty Motor (Paint Free)

Motor Supply Voltage230/460 V

Base RPM1770 rpm

IP Rating55

Harmonization Code8501.51.6040

Weight39 lbs

ApplicationsConveyors, pumps and other equipment in food processing and severe environments where motors receive washdown on a regular basis.

Additional DetailsIncludes all the advantages of our standard “Paint Free” washdown duty motors. Specifically designed and built for use on adjustable speed drives. For adjustable speed applications not requiring full torque at zero speed. Not encoder adaptable. 1.00 Service Factor. Class “H” insulated. 2700 RPM constant Hp speed. Includes phase insulation and thermostats.

Mounting TypeC-Face / Footless

Product TypeWashdown Duty Motors

Nameplate

Catalog numberIDVSWDM3546

Specification number35S639Z818G1

Frame size56C

Horsepower (HP)1 TE

Voltage (V)230/460

Magnetizing current (A)2.5/1.25

Full load current (A)3.34/1.67

Speed (rpm)1770

Maximum speed (rpm)6000

Frequency (Hz)60

Phase3

Insulation classH

Service factor1.00

NEMA design letterB

SL HZ1

NEMA nominal efficiency (%)85.5

Inertia (WK²)0.159

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

CC number010A

Nameplate numberNP1608L

Performance

General characteristics· 460 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)14.4 Ω

Temperature rise at rated load (°C)63° C

Start configurationDOL

Breakdown torque16.6 lb-ft

Pull-up torque7.42 lb-ft

Locked-rotor torque10.32 lb-ft

Starting current (A)16.1 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	8	27	43	56	66	73	78
Efficiency %	0	70.8	81.2	84.5	85.9	85.8	85.2
Speed rpm	1800	1793	1786	1781	1773	1766	1758
Line amps A	1.23	1.25	1.34	1.49	1.67	1.87	2.12
Power W	75.52	272	462	664	876	1087	1312
Torque lb-ft	0	0.756	1.48	2.22	2.99	3.72	4.48

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

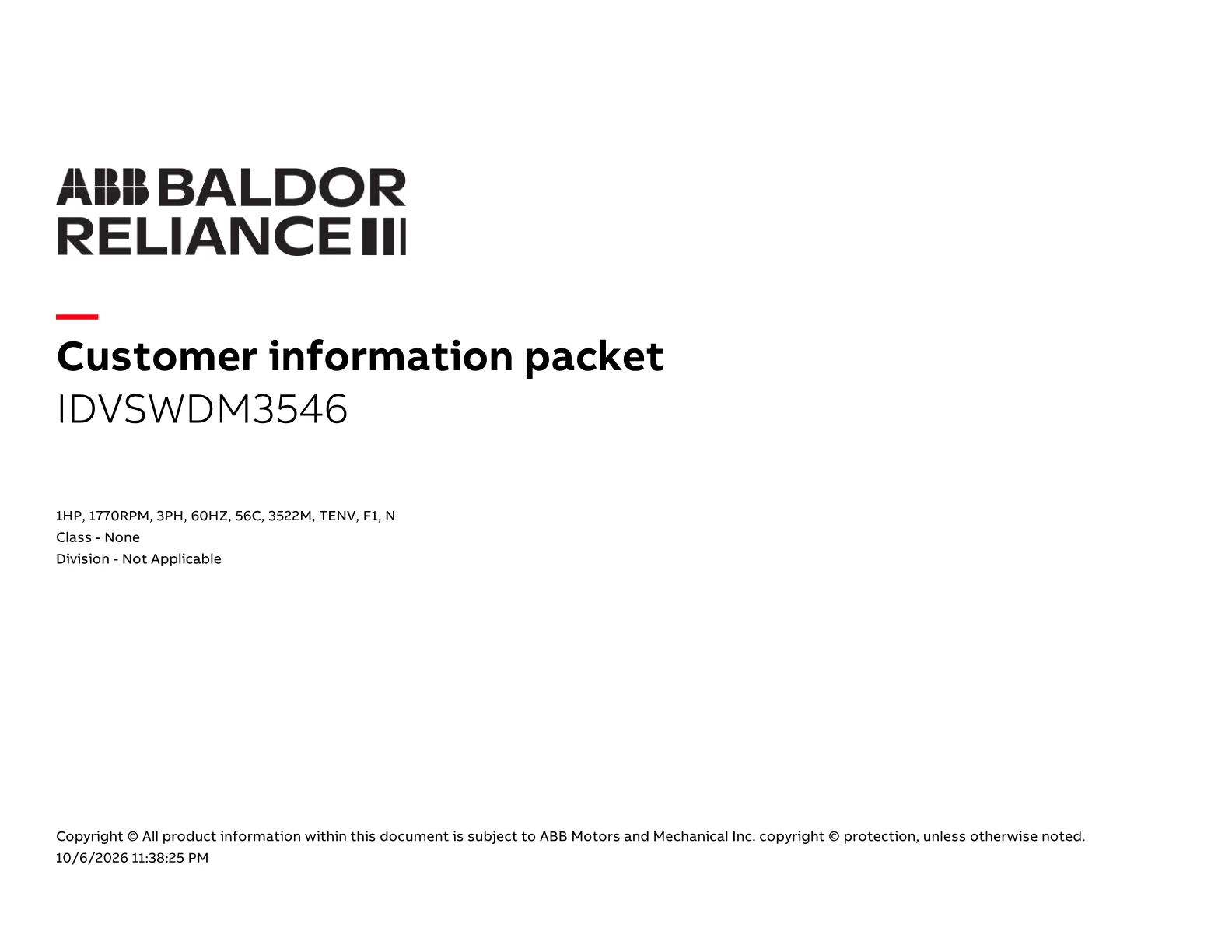

DatasheetDatasheetPDF·588 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·102 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor IDVSWDM3546 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
