Baldor IDFRPM18104C

Baldor-Reliance IDFRPM18104C is a 10 HP, 1765 rpm, 3-phase 460 V, 60 Hz, FL1844CZ frame general industrial AC electric motor with a totally enclosed fan-cooled (TEFC) enclosure.

BaldorMFR # IDFRPM18104CSKU # YLSW71XYXAAPS82

EnclosureTEFC

FrameFL1844CZ

Frame materialAluminum

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency10.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance IDFRPM18104C is a 10 HP, 1765 rpm, 3-phase 460 V, 60 Hz, FL1844CZ frame general industrial AC electric motor with a totally enclosed fan-cooled (TEFC) enclosure.

Baldor IDFRPM18104C

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

FrameFL1844CZ

Frame materialAluminum

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency10.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Agency approvalsCCSA US

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage13.900 A @ 460.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

High voltage full load current (A)13.9 a

Frame prefixFL

Heater indicatorNo Heater

Insulation classH

Mounting arrangementF3

Overall length23.26 IN

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeC-Face

Service factor1.00

Shaft diameter1.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)1765 rpm

Motor standardsNEMA

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

UPC781568465226

Nameplate

Catalog numberIDFRPM18104C

Specification numberP18T0350

Frame sizeFL 1844CZ

Insulation classH

Phase3

Maximum safe speed (rpm)7200

Ambient temperature (°C)40

Minimum ambient temperature (°C)-25

Design numberL3219A

EnclosureTEFC

Service factor1.0

Drive end bearing45BC02JPP30A

Opposite drive end bearing35BC02JPP30A

Nameplate number000613006MY

Documents & CAD

For this product 4

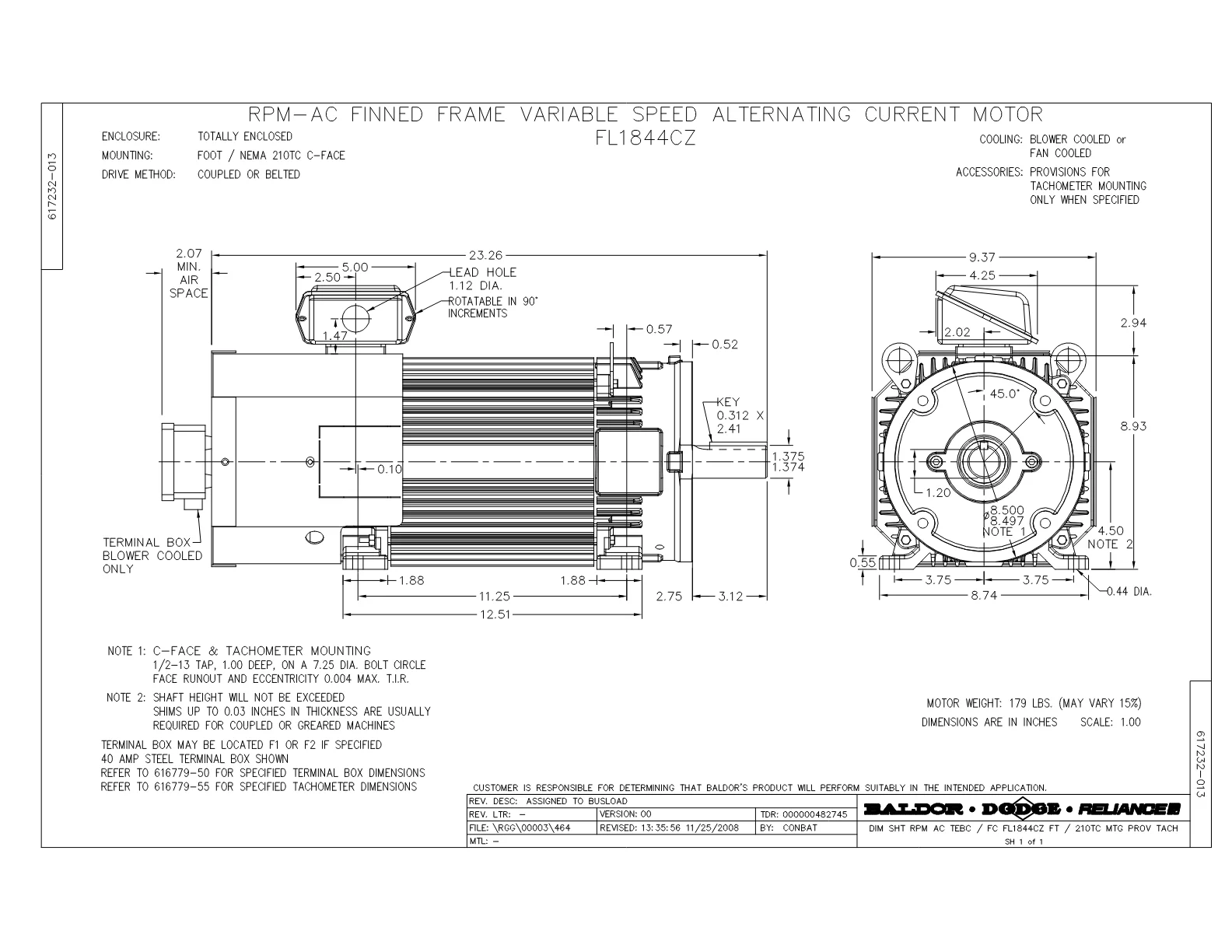

Dimension DrawingDimension SheetPDF·96 KB·English

Dimension DrawingDimension SheetPDF·144 KB·English

Wiring DiagramWiring DiagramPDF·55 KB·English

DatasheetDatasheetPDF·717 KB·English

Series documents 2· shared by this product series

Technical DrawingDrawingPDF·1.0 MB·English

Performance CurvePerformance CurvePDF·56 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor IDFRPM18104C motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
