Baldor IDDRPM5820004

Baldor-Reliance IDDRPM5820004 is a 2000 HP, 1782 rpm, 3-phase 690 V, 60 Hz, RL5832Z frame general industrial AC electric motor with a drip-proof force-ventilated (DPFV) enclosure.

BaldorMFR # IDDRPM5820004SKU # YLSZSDMY18CF9HS

EnclosureDPFV

FrameRL5832Z

Frame materialExposed Laminations

Frequency (Hz)60.00 Hz

Output at frequency2000.000 HP @ 60 HZ

Phase3

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance IDDRPM5820004 is a 2000 HP, 1782 rpm, 3-phase 690 V, 60 Hz, RL5832Z frame general industrial AC electric motor with a drip-proof force-ventilated (DPFV) enclosure.

Baldor IDDRPM5820004

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureDPFV

FrameRL5832Z

Frame materialExposed Laminations

Frequency (Hz)60.00 Hz

Output at frequency2000.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency690.0 V @ 60 HZ

Agency approvalsCCSA US

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage1465.000 A @ 690.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

High voltage full load current (A)1465.0 a

Frame prefixRL

Heater indicatorNo Heater

Insulation classH

IP ratingNONE

Mounting arrangementF1

Overall length83.54 IN

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.00

Shaft diameter4.875 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Speed (rpm)1782 rpm

Motor standardsNEMA

Starting methodFull Voltage

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

UPC781568695494

Nameplate

Catalog numberIDDRPM5820004

Specification numberR58-A000-0003

Frame sizeRL5832Z

Insulation classH

Phase3

Maximum safe speed (rpm)2100

Ambient temperature (°C)40

Minimum ambient temperature (°C)-25

Design numberL9911A

EnclosureDPG-FV

Service factor1.00

Drive end bearing130BC02J30X

Opposite drive end bearing6224/C3J20AA

Nameplate number000613006MY

Documents & CAD

For this product 4

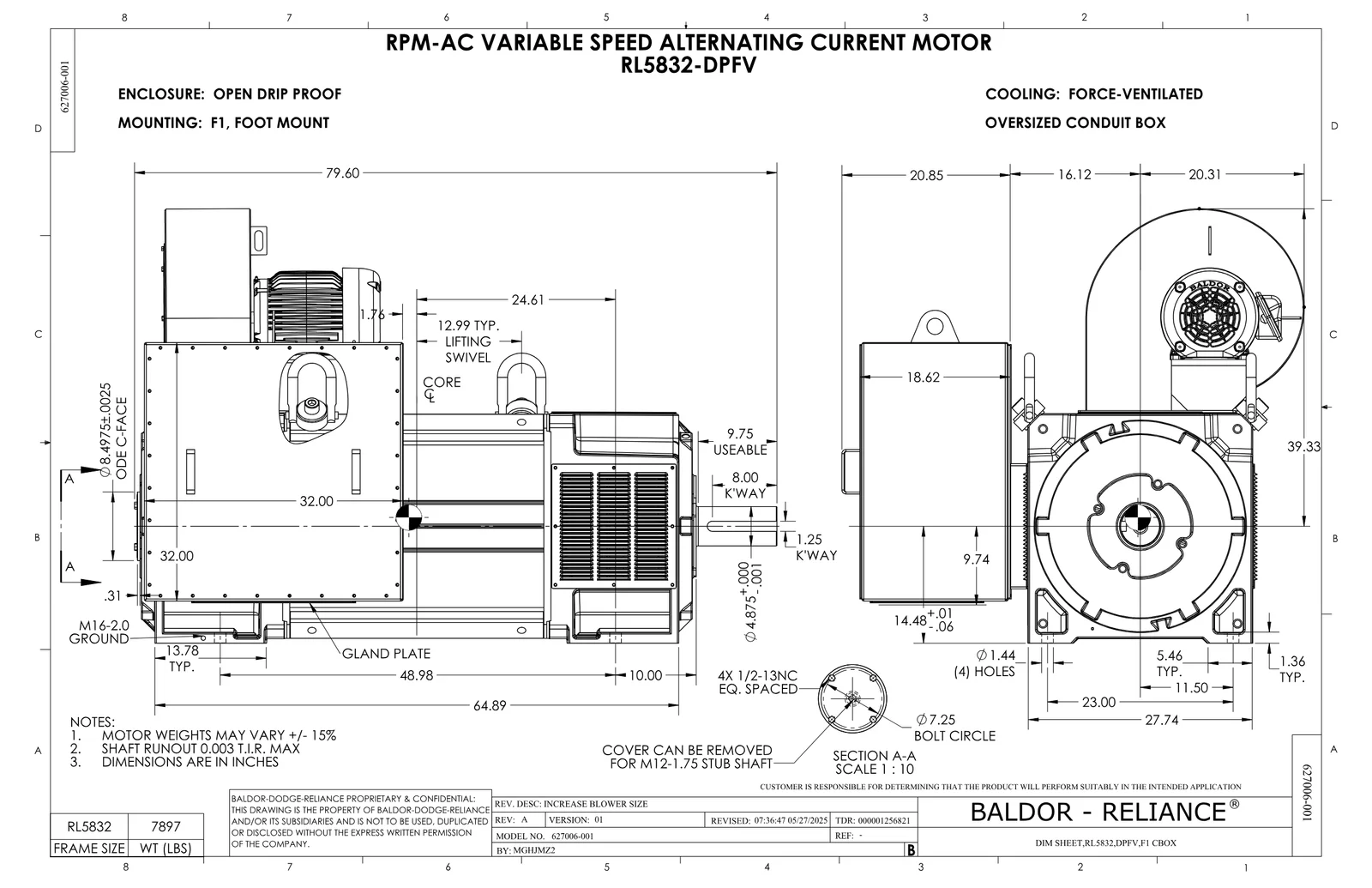

Dimension DrawingDimension SheetPDF·306 KB·English

Wiring DiagramWiring DiagramPDF·55 KB·English

DatasheetDatasheetPDF·795 KB·English

Performance CurvePerformance CurvePDF·81 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·1.0 MB·English
