How can I get a price quote for Baldor IDDRPM449004R1ED?

You can request a fast quote for Baldor IDDRPM449004R1ED from Yılsa Engineering. Reference part number YLSBH2WIWEDMCF1. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor IDDRPM449004R1ED in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor IDDRPM449004R1ED genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor IDDRPM449004R1ED?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor IDDRPM449004R1ED

IDDRPM449004R1ED

BaldorMFR # IDDRPM449004R1EDSKU # YLSBH2WIWEDMCF1

EnclosureDPFV

FrameRL4461Z

Frame materialExposed Laminations

Frequency (Hz)90.00 Hz

Output at frequency900.000 HP @ 90 HZ

Phase3

Have questions?Chat on WhatsApp

About This Product

Baldor IDDRPM449004R1ED (IDDRPM449004R1ED) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor IDDRPM449004R1ED — price, stock availability and technical specifications.

Baldor IDDRPM449004R1ED

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureDPFV

FrameRL4461Z

Frame materialExposed Laminations

Frequency (Hz)90.00 Hz

Output at frequency900.000 HP @ 90 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 90 HZ

Voltage at frequency460.0 V @ 90 HZ

Agency approvalsCCSA US

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage1101.000 A @ 460.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

High voltage full load current (A)1101.0 a

Frame prefixRL

Heater indicatorNo Heater

Insulation classH

IP ratingNONE

Mounting arrangementF1

Overall length64.64 IN

Product familyExtruder

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.00

Shaft diameter4.250 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Speed (rpm)1787 rpm

Motor standardsNEMA

Starting methodFull Voltage

Thermal device - bearingNone

Thermal device - windingThermostat And RTD

UPC781568998052

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberIDDRPM449004R1ED

Specification numberR44-A000-0229

Frame sizeRL4461Z

Insulation classH

Phase3

Maximum safe speed (rpm)2700

Ambient temperature (°C)40

Minimum ambient temperature (°C)-25

Design numberL9490A

EnclosureDPG-FV

Service factor1.00

Drive end bearing110BC02J30X

Opposite drive end bearing6222/C3VL0241

Nameplate number000613006ABS

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·54 KB·English

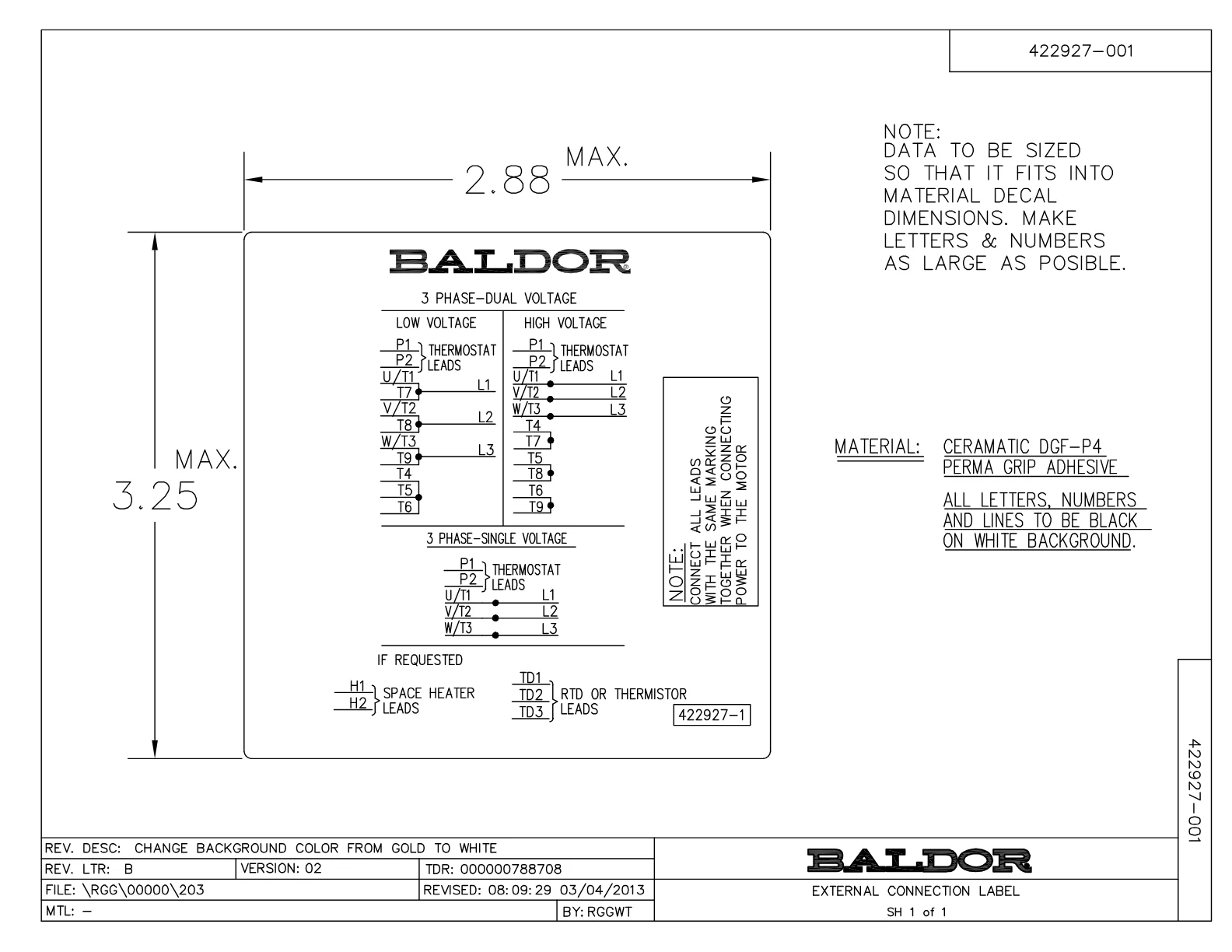

Wiring DiagramWiring DiagramPDF·55 KB·English

DatasheetDatasheetPDF·690 KB·English

Performance CurvePerformance CurvePDF·82 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·141 KB·English

Technical DrawingDrawingPDF·1.0 MB·English

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor IDDRPM449004R1ED motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
