Baldor IDDRPM406004R1

Baldor-Reliance IDDRPM406004R1 is a 600 HP, 1780/2665 rpm, 3-phase 460 V, 60 Hz, RL4046 frame general industrial AC electric motor with a drip-proof force-ventilated (DPFV) enclosure.

BaldorMFR # IDDRPM406004R1SKU # YLSOA6AQGRLLOX

EnclosureDPFV

FrameRL4046

Frame materialExposed Laminations

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency600.000 @ 60 HZ · 600.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance IDDRPM406004R1 is a 600 HP, 1780/2665 rpm, 3-phase 460 V, 60 Hz, RL4046 frame general industrial AC electric motor with a drip-proof force-ventilated (DPFV) enclosure.

Baldor IDDRPM406004R1

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureDPFV

FrameRL4046

Frame materialExposed Laminations

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency600.000 @ 60 HZ · 600.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 460 V @ 60 HZ

Agency approvalsCCSA US

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage674.000 A @ 460.0 V

Duty ratingCONT

Enclosure modificationFORCE VENT

Feedback deviceNO FEEDBACK

High voltage full load current (A)674.0 a

Frame prefixRL

Heater indicatorNo Heater

Insulation classH

Mounting arrangementF1

Overall length48.62 IN

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeC-Face

Service factor1.00

Shaft diameter3.624 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Speed (rpm)1780 rpm

Motor standardsNEMA

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

UPC781568763452

Nameplate

Catalog numberIDDRPM406004R1

Specification numberR40-A000-0300

Frame sizeRL 4046

Insulation classH

Phase3

Maximum safe speed (rpm)3750

Ambient temperature (°C)40

Minimum ambient temperature (°C)-25

Design numberL9461A

EnclosureDP

Service factor1.00

Drive end bearing95BC02J30X

Enclosure modificationFORCE VENT

Opposite drive end bearing6316/C3VL0241

Nameplate number000613006MY

Documents & CAD

For this product 2

Wiring DiagramWiring DiagramPDF·55 KB·English

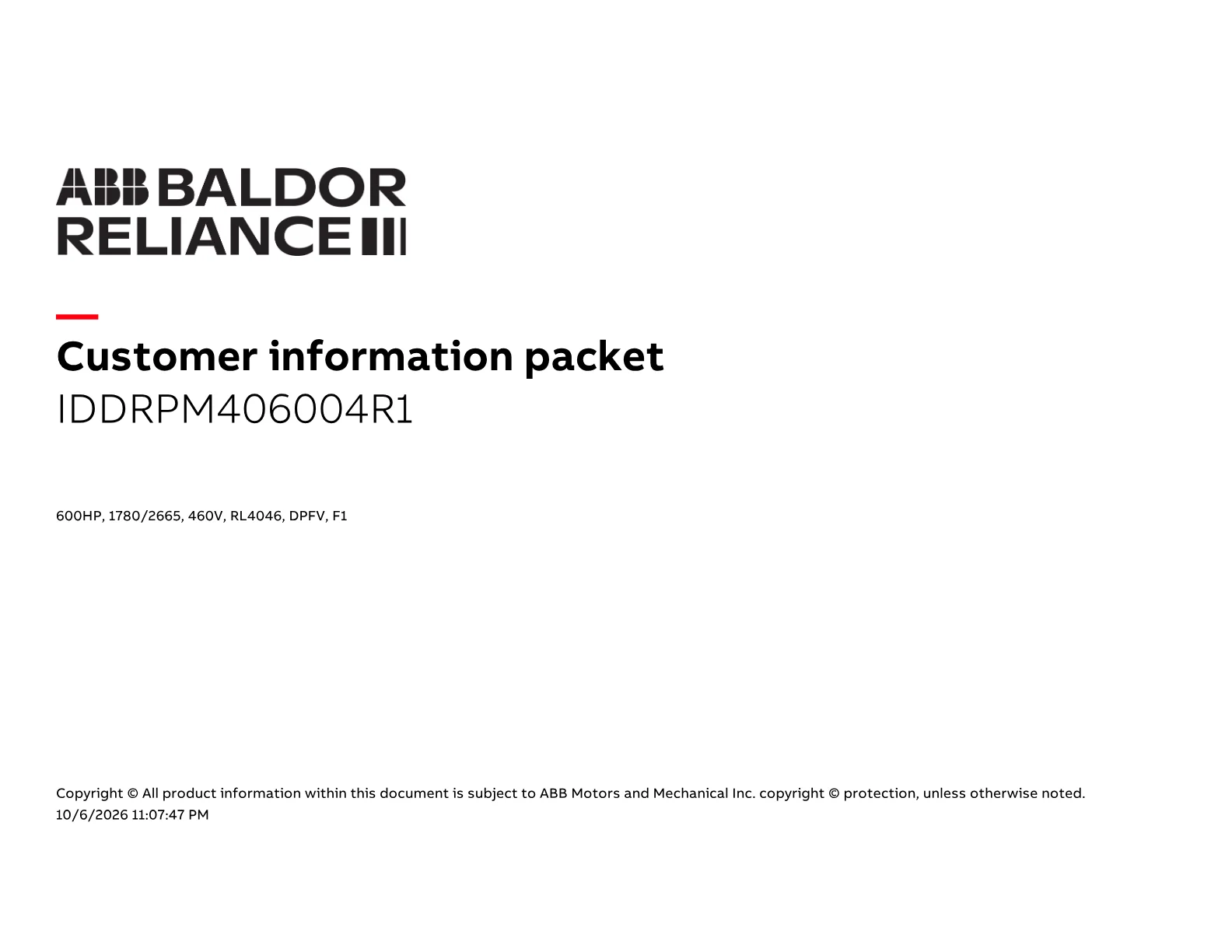

DatasheetDatasheetPDF·629 KB·English

Series documents 3· shared by this product series

Dimension DrawingDimension SheetPDF·135 KB·English

Technical DrawingDrawingPDF·1.0 MB·English

Performance CurvePerformance CurvePDF·83 KB·English

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor IDDRPM406004R1 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
