Baldor IDDRPM405004R2ED

Baldor-Reliance IDDRPM405004R2ED is a 500 HP, 1778 rpm, 3-phase 460 V, 60 Hz, RL4034Z frame AC electric motor for extruder applications with a drip-proof force-ventilated (DPFV) enclosure.

BaldorMFR # IDDRPM405004R2EDSKU # YLSYIWELTJFGDBE

EnclosureDPFV

FrameRL4034Z

Frame materialExposed Laminations

Frequency (Hz)60.00 Hz

Output at frequency500.000 HP @ 60 HZ

Phase3

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance IDDRPM405004R2ED is a 500 HP, 1778 rpm, 3-phase 460 V, 60 Hz, RL4034Z frame AC electric motor for extruder applications with a drip-proof force-ventilated (DPFV) enclosure.

Baldor IDDRPM405004R2ED

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureDPFV

FrameRL4034Z

Frame materialExposed Laminations

Frequency (Hz)60.00 Hz

Output at frequency500.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Agency approvalsCCSA US

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage559.000 A @ 460.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

High voltage full load current (A)559.0 a

Frame prefixRL

Heater indicatorNo Heater

Insulation classH

IP ratingNONE

Mounting arrangementF1

Overall length57.12 IN

Product familyExtruder

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.00

Shaft diameter3.624 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Speed (rpm)1778 rpm

Motor standardsNEMA

Starting methodFull Voltage

Thermal device - bearingNone

Thermal device - windingThermostat And RTD

UPC781568997994

Nameplate

Catalog numberIDDRPM405004R2ED

Specification numberR40-A000-0309

Frame sizeRL4034Z

Insulation classH

Phase3

Maximum safe speed (rpm)3750

Ambient temperature (°C)40

Minimum ambient temperature (°C)-25

Design numberL9460A

EnclosureDPG-FV

Service factor1.00

Drive end bearing95BC02J30X

Opposite drive end bearing6316/C3VL0241

Nameplate number000613006ABS

Documents & CAD

For this product 2

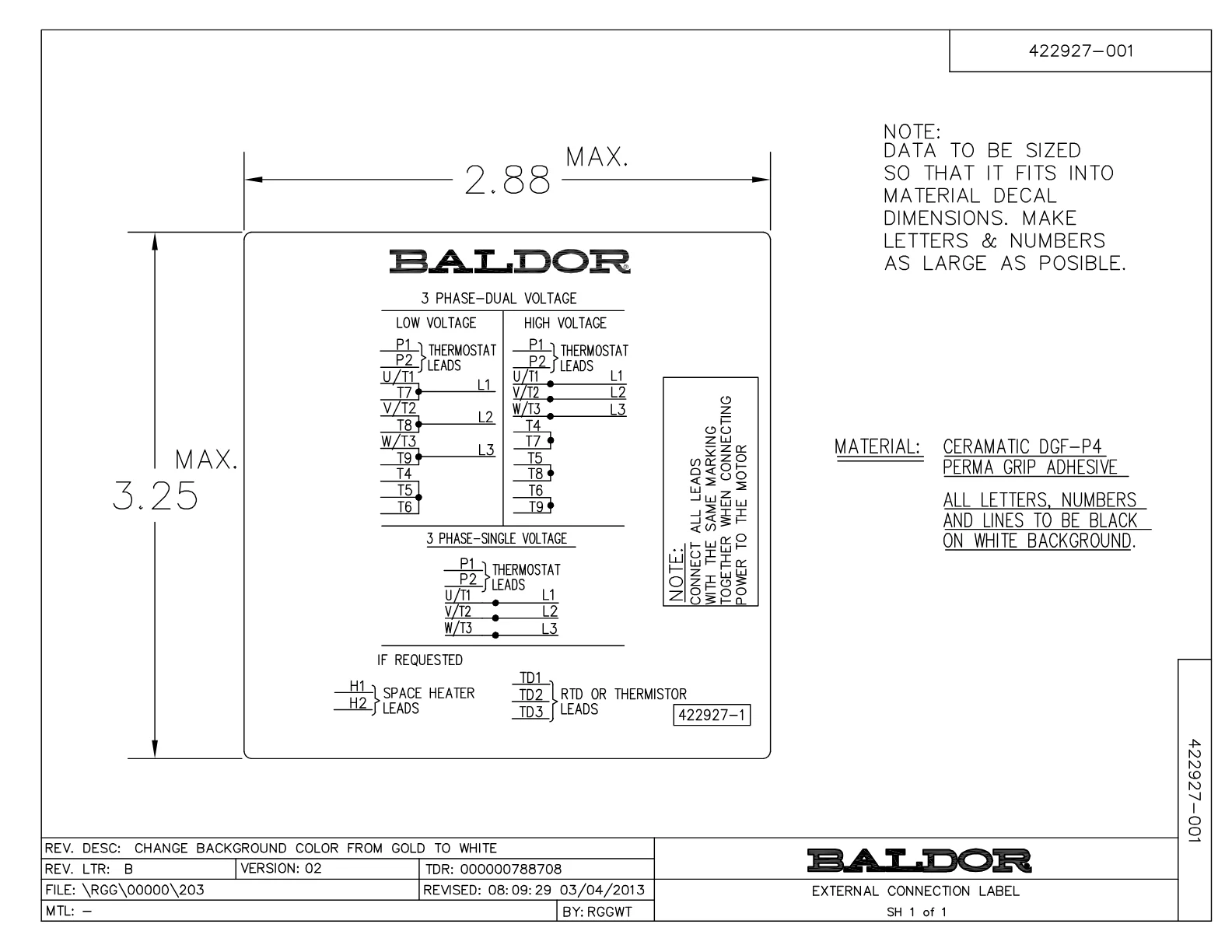

Wiring DiagramWiring DiagramPDF·55 KB·English

DatasheetDatasheetPDF·629 KB·English

Series documents 3· shared by this product series

Dimension DrawingDimension SheetPDF·135 KB·English

Technical DrawingDrawingPDF·1.0 MB·English

Performance CurvePerformance CurvePDF·83 KB·English

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor IDDRPM405004R2ED motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
