How can I get a price quote for Baldor IDDRPM364004R1?

You can request a fast quote for Baldor IDDRPM364004R1 from Yılsa Engineering. Reference part number YLSHHWAS8EGH7IZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor IDDRPM364004R1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor IDDRPM364004R1 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor IDDRPM364004R1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor IDDRPM364004R1

Baldor-Reliance IDDRPM364004R1 is a 400 HP, 1777 rpm, 3-phase 460 V, 60 Hz, RL3614 frame general industrial AC electric motor with a drip-proof force-ventilated (DPFV) enclosure.

BaldorMFR # IDDRPM364004R1SKU # YLSHHWAS8EGH7IZ

EnclosureDPFV

FrameRL3614

Frame materialExposed Laminations

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency400.000 @ 60 HZ · 400.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance IDDRPM364004R1 is a 400 HP, 1777 rpm, 3-phase 460 V, 60 Hz, RL3614 frame general industrial AC electric motor with a drip-proof force-ventilated (DPFV) enclosure.

Baldor IDDRPM364004R1

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureDPFV

FrameRL3614

Frame materialExposed Laminations

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency400.000 @ 60 HZ · 400.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 460 V @ 60 HZ

Agency approvalsCCSA US

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage460.000 A @ 460.0 V

Duty ratingCONT

Enclosure modificationFORCE VENT

Feedback deviceNO FEEDBACK

High voltage full load current (A)460.0 a

Frame prefixRL

Heater indicatorNo Heater

Insulation classH

Mounting arrangementF1

Overall length43.22 IN

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeC-Face

Service factor1.00

Shaft diameter2.874 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Speed (rpm)1777 rpm

Motor standardsNEMA

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

UPC781568763421

Nameplate

Catalog numberIDDRPM364004R1

Specification numberR36-A000-0264

Frame sizeRL 3614

Insulation classH

Phase3

Maximum safe speed (rpm)3750

Ambient temperature (°C)40

Minimum ambient temperature (°C)-25

Design numberL9458A

EnclosureDP

Service factor1.0

Drive end bearing95BC02J30X

Enclosure modificationFORCE VENT

Opposite drive end bearing80BC03J30X

Nameplate number000613006MY

Documents & CAD

For this product 2

Wiring DiagramWiring DiagramPDF·55 KB·English

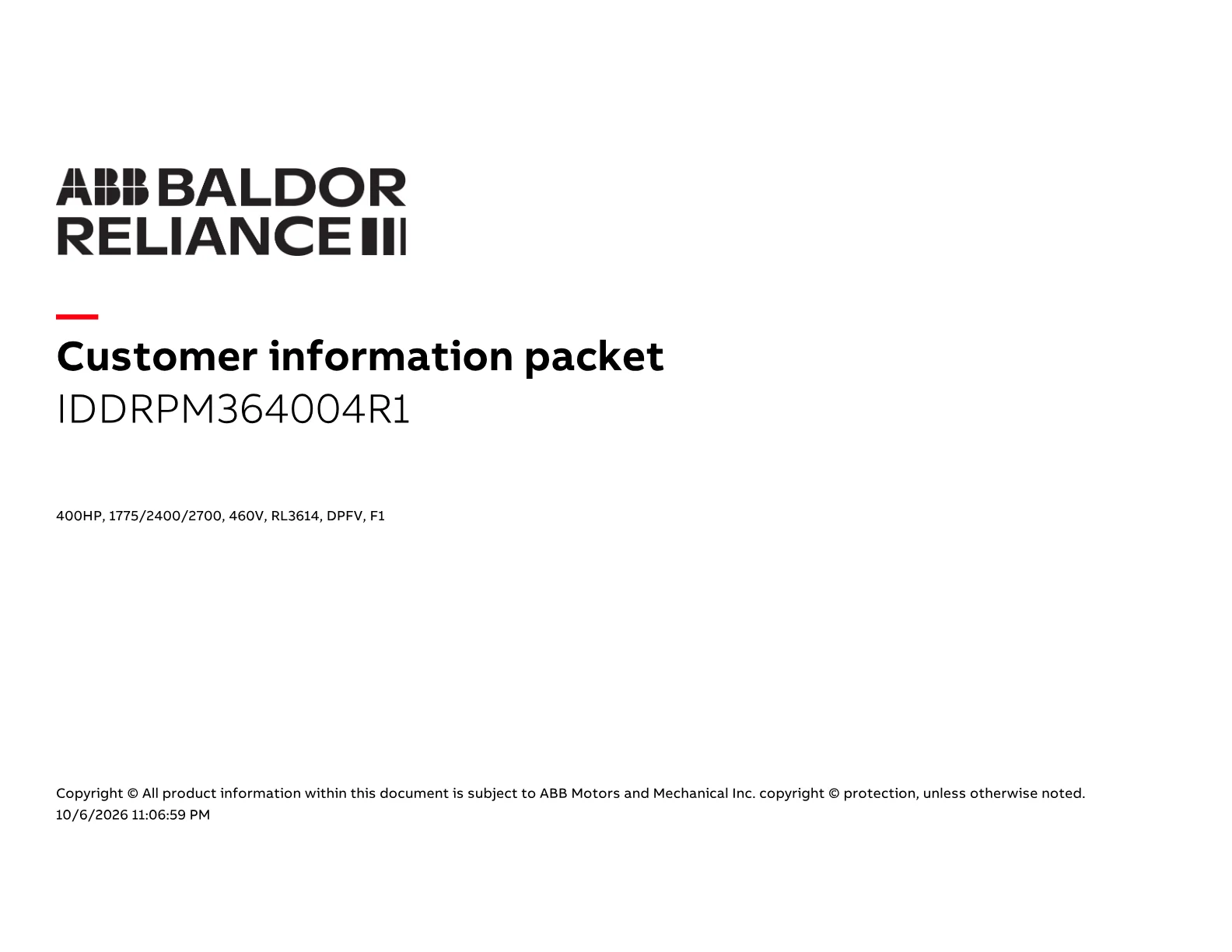

DatasheetDatasheetPDF·634 KB·English

Series documents 3· shared by this product series

Dimension DrawingDimension SheetPDF·139 KB·English

Technical DrawingDrawingPDF·1.0 MB·English

Performance CurvePerformance CurvePDF·83 KB·English

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor IDDRPM364004R1 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
