Baldor IDDRPM322504R1ED

Baldor-Reliance IDDRPM322504R1ED is a 250 HP, 1770 rpm, 3-phase 460 V, 60 Hz, RL3203Z frame AC electric motor for extruder applications with a drip-proof force-ventilated (DPFV) enclosure.

BaldorMFR # IDDRPM322504R1EDSKU # YLSWNC23I7HINJ4

EnclosureDPFV

FrameRL3203Z

Frame materialExposed Laminations

Frequency (Hz)60.00 Hz

Output at frequency250.000 HP @ 60 HZ

Phase3

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance IDDRPM322504R1ED is a 250 HP, 1770 rpm, 3-phase 460 V, 60 Hz, RL3203Z frame AC electric motor for extruder applications with a drip-proof force-ventilated (DPFV) enclosure.

Baldor IDDRPM322504R1ED

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureDPFV

FrameRL3203Z

Frame materialExposed Laminations

Frequency (Hz)60.00 Hz

Output at frequency250.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Agency approvalsCCSA US

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage291.000 A @ 460.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

High voltage full load current (A)291.0 a

Frame prefixRL

Heater indicatorNo Heater

Insulation classH

IP ratingNONE

Mounting arrangementF1

Overall length46.10 IN

Product familyExtruder

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.00

Shaft diameter2.874 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Speed (rpm)1770 rpm

Motor standardsNEMA

Starting methodFull Voltage

Thermal device - bearingNone

Thermal device - windingThermostat And RTD

UPC781568997956

Nameplate

Catalog numberIDDRPM322504R1ED

Specification numberR32-A000-0411

Frame sizeRL3203Z

Insulation classH

Phase3

Maximum safe speed (rpm)4000

Ambient temperature (°C)40

Minimum ambient temperature (°C)-25

Design numberL9455A

EnclosureDPG-FV

Service factor1.00

Drive end bearing85BC02J30X

Opposite drive end bearing6313/C3VL0241

Nameplate number000613006ABS

Documents & CAD

For this product 2

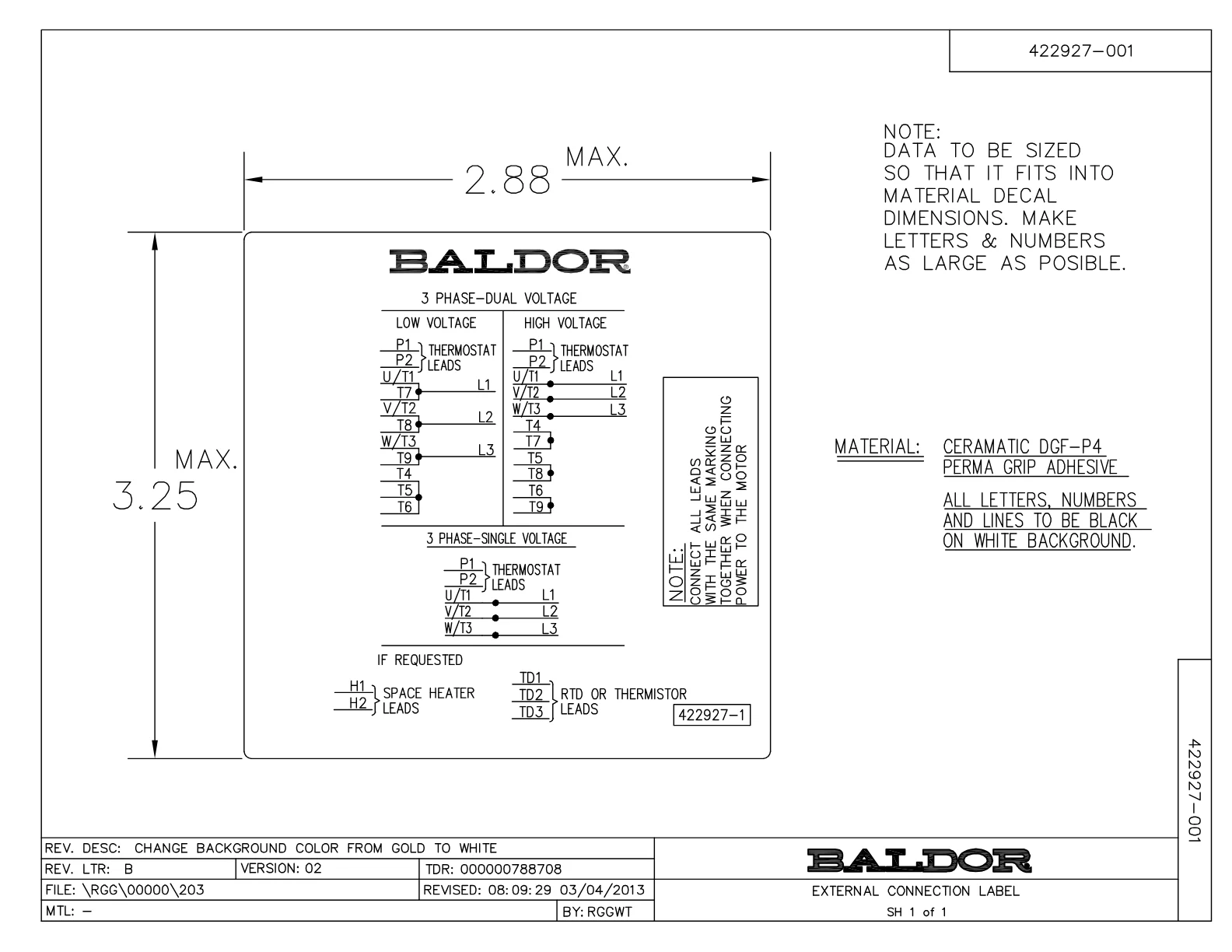

Wiring DiagramWiring DiagramPDF·55 KB·English

DatasheetDatasheetPDF·626 KB·English

Series documents 3· shared by this product series

Dimension DrawingDimension SheetPDF·133 KB·English

Technical DrawingDrawingPDF·1.0 MB·English

Performance CurvePerformance CurvePDF·82 KB·English

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor IDDRPM322504R1ED motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
