Baldor IDDRPM321506R1

Baldor-Reliance IDDRPM321506R1 is a 150 HP, 1170 rpm, 3-phase 460 V, 40 Hz, RL3203Z frame general industrial AC electric motor with a drip-proof force-ventilated (DPFV) enclosure.

BaldorMFR # IDDRPM321506R1SKU # YLSWTO3UBDSYAVA

EnclosureDPFV

FrameRL3203Z

Frame materialExposed Laminations

Frequency (Hz)40.00 Hz

Motor letter typeThree Phase

Output at frequency150.000 HP @ 40 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance IDDRPM321506R1 is a 150 HP, 1170 rpm, 3-phase 460 V, 40 Hz, RL3203Z frame general industrial AC electric motor with a drip-proof force-ventilated (DPFV) enclosure.

Baldor IDDRPM321506R1

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureDPFV

FrameRL3203Z

Frame materialExposed Laminations

Frequency (Hz)40.00 Hz

Motor letter typeThree Phase

Output at frequency150.000 HP @ 40 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 40 HZ

Voltage at frequency460.0 V @ 40 HZ

Agency approvalsCCSA US

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage180.000 A @ 460.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

High voltage full load current (A)180.0 a

Frame prefixRL

Heater indicatorNo Heater

Insulation classH

IP ratingNONE

Mounting arrangementF1

Overall length38.64 IN

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.00

Shaft diameter2.874 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Speed (rpm)1170 rpm

Motor standardsNEMA

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

UPC781568803738

Nameplate

Catalog numberIDDRPM321506R1

Specification numberR32-A000-0008

Frame sizeRL3203Z

Insulation classH

Phase3

Maximum safe speed (rpm)4000

Ambient temperature (°C)40

Minimum ambient temperature (°C)-25

Design numberL0339A

EnclosureDPG-FV

Service factor1.00

Drive end bearing85BC02J30X

Opposite drive end bearing65BC03J30X

Nameplate number000613006MY

Documents & CAD

For this product 3

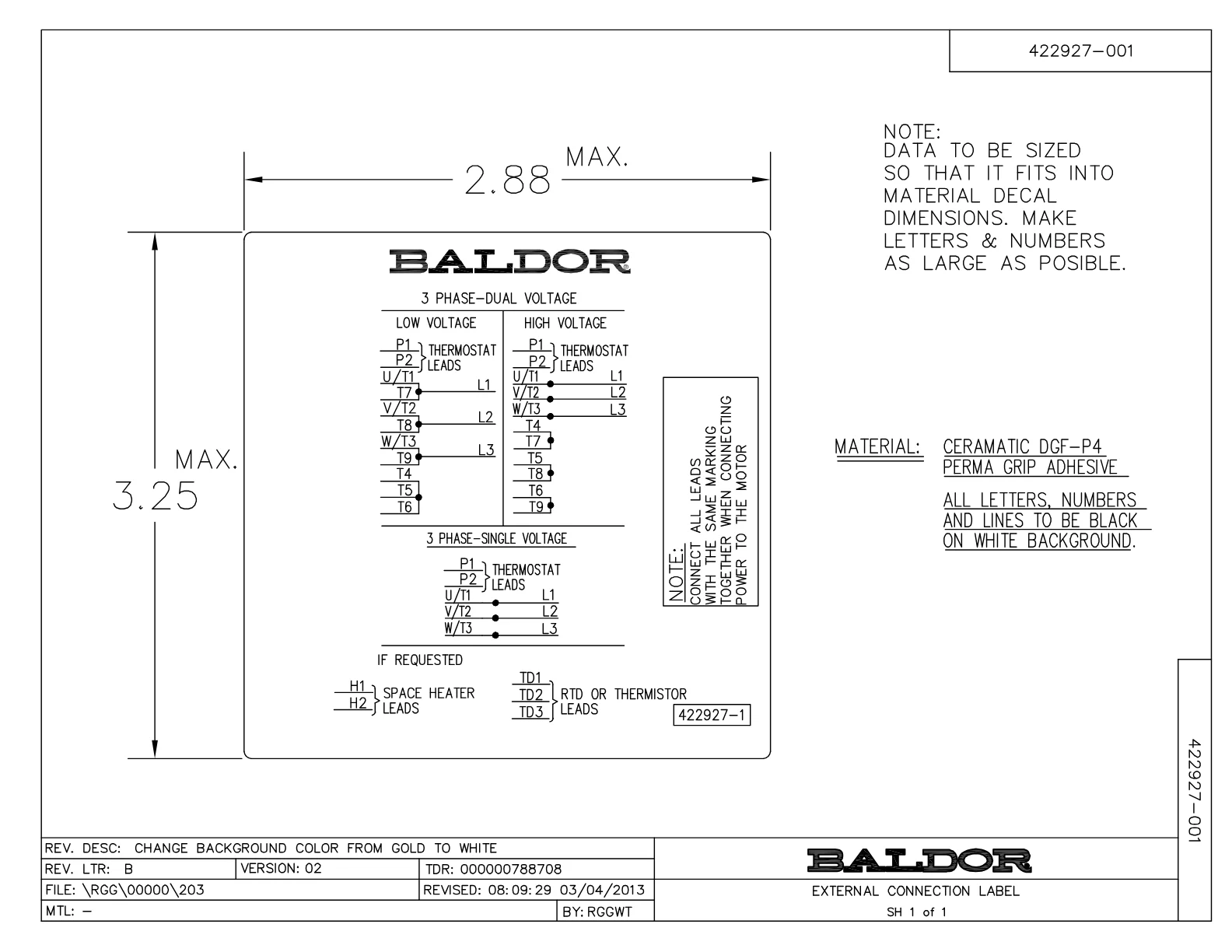

Wiring DiagramWiring DiagramPDF·55 KB·English

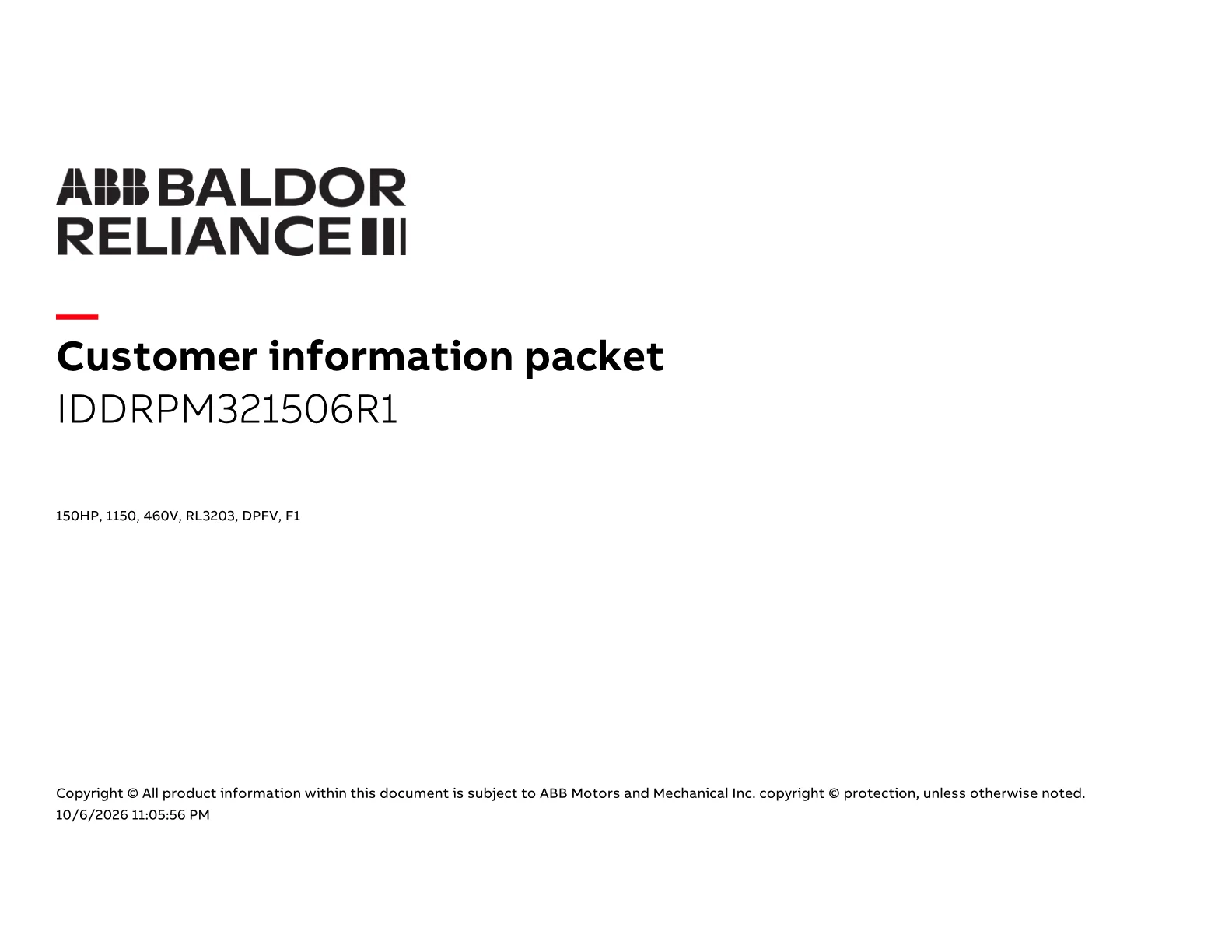

DatasheetDatasheetPDF·693 KB·English

Performance CurvePerformance CurvePDF·145 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·133 KB·English

Technical DrawingDrawingPDF·1.0 MB·English

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor IDDRPM321506R1 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
